BL067
．11.5 Liters Small Form Factor Design
Optimal thermal and acoustic performance
RUSSIA
Select Your Region
BL067
BL057
BL040
BL672
BL647
BL641
BL634
BL631
．11.5 Liters Small Form Factor Design
Optimal thermal and acoustic performance
Front Ports
‧ USB 2.0 x 4
‧ HD Audio
‧ Optional Type-C 3.2 Gen 2 x 2 (10 Gbps x 2)
．11.5 Liters Small Form Factor Design
Front Ports
‧ USB 3.0 x 2 + USB 2.0 x 2
‧ HD Audio
‧ Optional USB 2.0 x 2
．11.5 Liters Small Form Factor Design
Front Ports
‧ USB 2.0 x 4
‧ HD Audio
‧ Optional USB 3.0 x 2
．11.5 Liters Small Form Factor Design
Front Ports
‧ USB 2.0 x 4
‧ HD Audio
‧ Optional USB 3.0 x 2
．11.5 Liters Small Form Factor Design
Front Ports
‧ USB 2.0 x 4
‧ HD Audio
‧ Optional USB 3.0 x 2
．11.5 Liters Small Form Factor Design
Front Ports
‧ USB 2.0 x 4
‧ HD Audio
‧ Optional USB 3.0 x 2
．11.5 Liters Small Form Factor Design
Front Ports
‧ USB 2.0 x 4
‧ HD Audio
‧ Optional USB 3.0 x 2

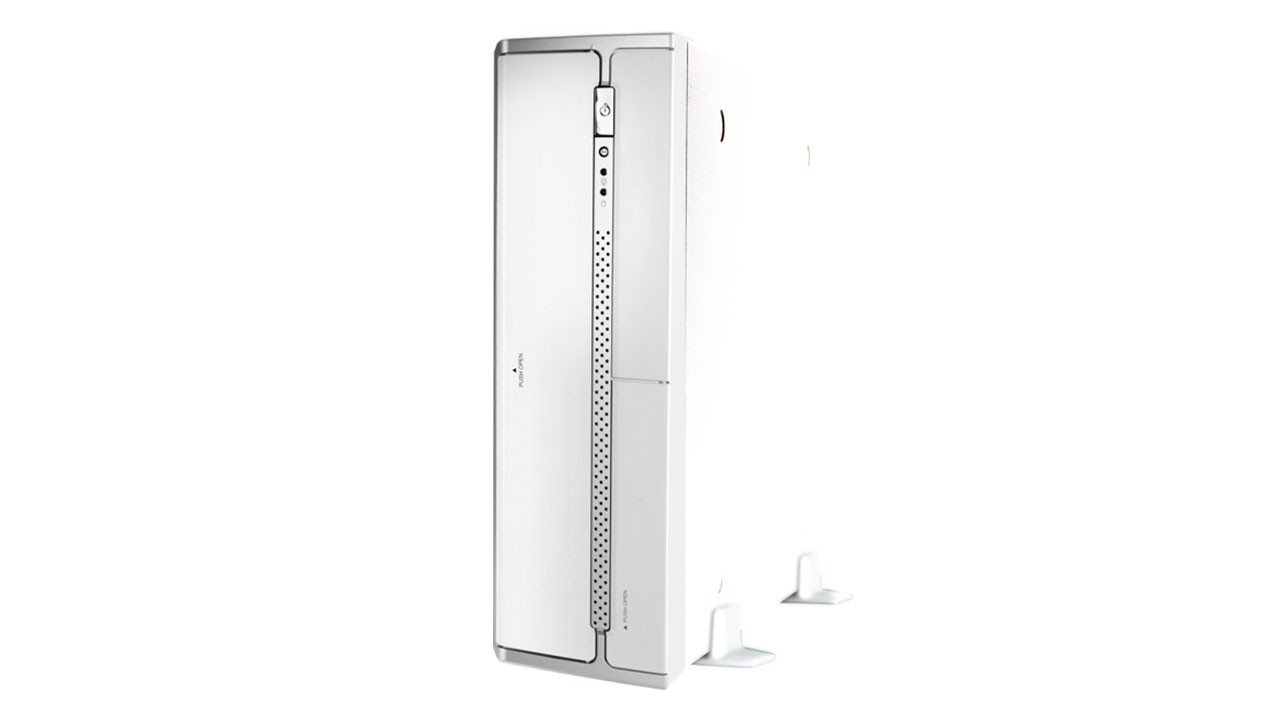

A small 11.5L SFF chassis with optimal thermal and acoustic performance.
It is compatible with standard desktop components, which makes the installation easier and provides a great expandability when needed.
For easy installation
Designated Infrared Receiver position to support Media Center and optional internal amplifier.
Screwless Expansion Slots Clip
Optional screwless design
- ODD/FDD/HDD bays, expansion slots,
and side cover clips for easy installation.
Screwless ODD Bay Clips
Screwless Top Cover Clips
Screwless FDD/HDD Bays Clips
．PPCT
Optional innovative partition plate cooling technology (PPCT) maximizes performance while providing a quiet and cooling environment.
．Cooling Fan
80x80x25mm fan for better system cooling.
- New features of the 2nd generation of PPCT technology include removable air
duct and an enlarged adjustable vent for various CPU positions.
- Supports LGA1155 Socket and downward compatible (LGA775)
New PPCT
Enlarged Vent
Removable Air Duct
Adjustable Position
* New PPCT Technology supports LGA1155 Socket and downward compatible (LGA775).
This Partition Plate Cooling Technology is the world’s most advanced thermal & acoustic technology.
BL Series uses Intel Lanyu as Ref. Design
CPU Ambient Average Temperature 36.6℃(98℉)
| CPU | Core™ 2 Duo E8400 (3.0GHz) |
|---|---|
| Ambience Temperature | 35℃(95℉) |
| Ta Average | 36.6℃(98℉) |
| PSU out | 37.5℃(99℉) |
| Host Bridge | 64.7℃(148℉) |
| RAM | 55.6℃(132℉) |
| HDD | 49.6℃(121℉) |
| ODD | 48.9℃(120℉) |
| FDD | 47.4℃(117℉) |
| VGA | 56.2℃(133℉) |
| * Lab Test_ Intel Box CPU (Intel Core™ 2 Duo E8400 / 3.0GHz, LGA 775, 65W). * Source from In Win lab. All examined sources are subject to change at anytime, without prior notice. * Performance tests and ratings are measured using specific computer systems and/or components and reflect the approximate performance of In Win products as measured by those tests. Any difference in system hardware, software design, or configuration may affect actual performance. |
|
System Acoustic Result
| System Run | New PPCT (With half-moon shaped air duct) |
|---|---|
| Idle | 28.6 dB |
| Max Power (CPU 100%) | 33.9 dB |
．IR ．Removable Air Filter
．Chassis Intrusion Switch．Key Lock Side Panel
The side panel is a theft deterrent key lock set for safeguarding
your chassis equipment from unauthorized access.
3.5" to 2.5" HDD/SSD bracket
supports 2.5" x 2
3.5" to 2.5" HDD/SSD bracket
optional 60 mm Fan x 1
(60 x 60 x 10 mm, 2500rpm, 20dB Fan, 4 Pin Power Connector)
