BP Series

Mini-ITX Chassis

8.2L Small Form Factor
The BP Series was designed to offer quick integration. No peripheral carrier or bezel must be removed for assembly. This allows really quick assembly and reduces costs.
•Easy Integration
•Standard Components
•Optimal Thermal Performance
•Tool-Free ODD Bay and Side Panel
•Standard TFX 12V Power Supply

BP691

Specifications

Model
Model Number
MB Form Factor
Case Size
Color
External Drive Bays
Internal Drive Bays
Front Ports
Product Dimensions
(H x W x D)
with Front Panel
Product Dimensions
(H x W x D)
w/o Front Panel
I/O Expansion Slots
Model
Compatibility
Power Supply
Thermal Solution
Safety
Security
Optional
Packing Dimensions
(H x W x D)
Shipping Information
  • BP691
    BP691.FH200TB3
    Mini-ITX
    8.2L
    S.F.F Slim Chassis
    (Ultra Small Form Factor)
    • Black
    5.25” x 1
    3.5" HDD (1") x 1
    3.5" HDD (0.8") x 1
    USB 3.0 x 2,
    HD Audio
    268 x 103 x 355 mm
    (10.6” x 4.1” x 14”)

    275~268 x 167 x 355 mm
    (with Foot Stand)
    265 x 100 x 310 mm (8.2L)
    10.4"x 3.9" x 12.2"
    Low Profile Card Slot x 1
    BP691
    .Maximum Graphics Card Length / Width: 186 mm / 85 mm
    .Maximum CPU Cooler Height: 75 mm
    Standard TFX 12V
    80x80x25mm Top Fan
    Meets RoHS, CE and FCC Class B Requirements
    Padlock Loop / Kensington Slot
    ‧IEEE 1394
    ‧eSATA / USB2.0 x 2 (at Rear Panel w/ Module)
    ‧Removable Air Filter
    ‧Chassis Intrusion Switch
    ‧Screw-less ODD Bay Clips
    ‧Screw-less Side Panel Clips
    ‧USB 2.0 x 2
    ‧3.5” to 2.5” HDD/SSD Bracket
    415 x 345 x 145 mm
    (16.3” x 13.6” x 5.7”)
    Single Packing:
    -20’: 1,500, 40’: 3,056, 40’ H: 3,432
    Single Packing + Pallets:
    -20’: 1,150, 40’: 2,530, 40’ H: 2,794
  • BP671
    BP671.FH200TB3
    Mini-ITX
    8.2L
    S.F.F Slim Chassis
    (Ultra Small Form Factor)
    • Black
    5.25” x 1
    3.5" HDD (1") x 1
    3.5" HDD (0.8") x 1
    USB 3.0 x 2,
    HD Audio
    268 x 103 x 362 mm
    (10.6” x 4.1” x 14.3”)

    275~268 x 167 x 362 mm
    (with Foot Stand)
    265 x 100 x 310 mm (8.2L)
    10.4"x 3.9" x 12.2"
    Low Profile Card Slot x 1
    BP671
    .Maximum Graphics Card Length / Width: 186 mm / 85 mm
    .Maximum CPU Cooler Height: 75 mm
    Standard TFX 12V
    80x80x25mm Top Fan
    Meets RoHS, CE and FCC Class B Requirements
    Padlock Loop / Kensington Slot
    ‧IEEE 1394
    ‧eSATA / USB2.0 x 2 (at Rear Panel w/ Module)
    ‧Removable Air Filter
    ‧Chassis Intrusion Switch
    ‧Screw-less ODD Bay Clips
    ‧Screw-less Side Panel Clips
    ‧USB 2.0 x 2
    ‧3.5” to 2.5” HDD/SSD Bracket
    415 x 345 x 145 mm
    (16.3” x 13.6” x 5.7”)
    Single Packing:
    -20’: 1,500, 40’: 3,056, 40’ H: 3,432
    Single Packing + Pallets:
    -20’: 1,150, 40’: 2,530, 40’ H: 2,794
  • BP659
    By Special Request
    Mini-ITX
    8.2L
    S.F.F Slim Chassis
    (Ultra Small Form Factor)
    • Black
    5.25” x 1
    3.5" HDD (1") x 1
    3.5" HDD (0.8") x 1
    USB 3.0 x 2,
    HD Audio
    268 x 103 x 373 mm
    (10.6” x 4.1” x 14.7”)

    275~268 x 181 x 373 mm
    (with Foot Stand)
    265 x 100 x 310 mm (8.2L)
    10.4"x 3.9" x 12.2"
    Low Profile Card Slot x 1
    BP659
    .Maximum Graphics Card Length / Width: 186 mm / 85 mm
    .Maximum CPU Cooler Height: 75 mm
    Standard TFX 12V
    80x80x25mm Top Fan
    Meets RoHS, CE and FCC Class B Requirements
    Padlock Loop / Kensington Slot
    ‧IEEE 1394
    ‧eSATA / USB2.0 x 2 (at Rear Panel w/ Module)
    ‧Removable Air Filter
    ‧Chassis Intrusion Switch
    ‧Screw-less ODD Bay Clips
    ‧Screw-less Side Panel Clips
    ‧USB 2.0 x 2
    ‧3.5” to 2.5” HDD/SSD Bracket
    415 x 345 x 145 mm
    (16.3” x 13.6” x 5.7”)
    Single Packing:
    -20’: 1,500, 40’: 3,056, 40’ H: 3,432
    Single Packing + Pallets:
    -20’: 1,150, 40’: 2,530, 40’ H: 2,794
  • BP655
    BP655.FH200TB3
    Mini-ITX
    8.2L
    S.F.F Slim Chassis
    (Ultra Small Form Factor)
    • Black
    • White
    5.25” x 1
    3.5" HDD (1") x 1
    3.5" HDD (0.8") x 1
    USB 3.0 x 2,
    HD Audio
    268 x 103 x 355 mm
    (10.6” x 4.1” x 14”)

    275~268 x 167 x 355 mm
    (with Foot Stand)
    265 x 100 x 310 mm (8.2L)
    10.4"x 3.9" x 12.2"
    Low Profile Card Slot x 1
    BP655
    .Maximum Graphics Card Length / Width: 186 mm / 85 mm
    .Maximum CPU Cooler Height: 75 mm
    Standard TFX 12V
    80x80x25mm Top Fan
    Meets RoHS, CE and FCC Class B Requirements
    Padlock Loop / Kensington Slot
    ‧IEEE 1394
    ‧eSATA / USB2.0 x 2 (at Rear Panel w/ Module)
    ‧Removable Air Filter
    ‧Chassis Intrusion Switch
    ‧Screw-less ODD Bay Clips
    ‧Screw-less Side Panel Clips
    ‧USB 2.0 x 2
    ‧3.5” to 2.5” HDD/SSD Bracket
    415 x 345 x 145 mm
    (16.3” x 13.6” x 5.7”)
    Single Packing:
    -20’: 1,500, 40’: 3,056, 40’ H: 3,432
    Single Packing + Pallets:
    -20’: 1,150, 40’: 2,530, 40’ H: 2,794
* The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make final modifications.

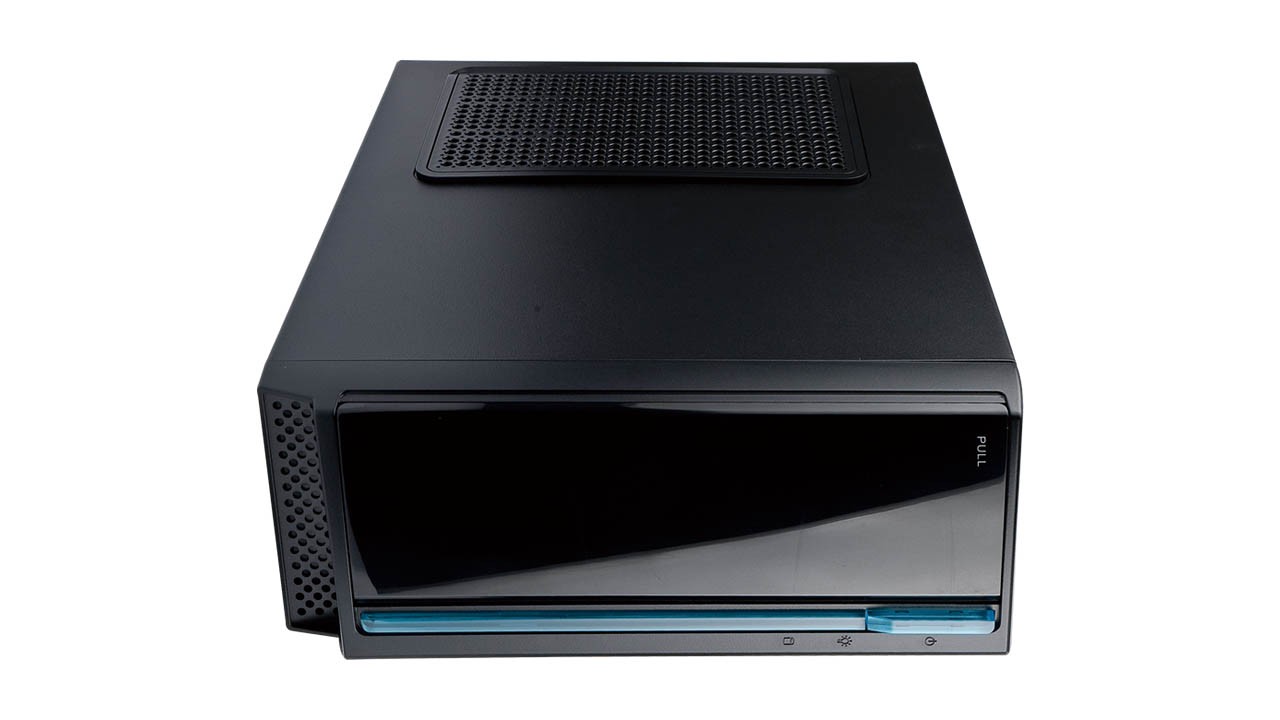

BP691

8.2L Small Form Factor Chassis

BP Series is small in size but packed with features that are only available in other larger chassis

Foot Stand




Gallery

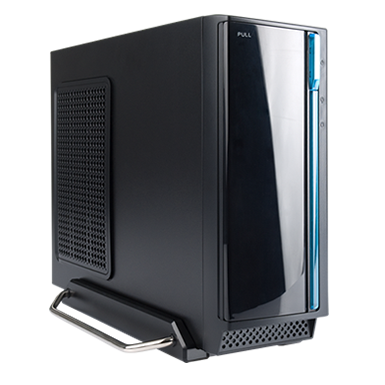

BP691

Specifications

BP671

8.2L Small Form Factor Chassis

BP Series is small in size but packed with features that are only available in other larger chassis.

Foot Stand

Simple Appearance




Gallery

BP671

Specifications

BP659

8.2L Small Form Factor Chassis

BP Series is small in size but packed with features that are only available in other larger chassis.

Foot Stand

‧Hidden Drive Bay Design

External Drive bay with flip covers were designed to have a simple appearance, providing the user with better aesthetic presentation.




Gallery

BP659

Specifications

BP655

8.2L Small Form Factor Chassis

BP Series is small in size but packed with features that are only available in other larger chassis.

Foot Stand





Gallery

BP655

Specifications

Easy Integration

The BP Series was designed to offer quick integration. No peripheral carrier or bezel must be removed for assembly. This allows really quick assembly and reduces the costs

Supports Mini-ITX Motherboard

Supports Mini-ITX motherboard for a wide choice of system features and price points.

Standard Components

The BP Series supports standard size components (5.25” & 3.5”). The use of standard components helps to maximize configuration choices and minimize product costs.

Optimal Thermal Performance

An ultra silent 80mm case fan with Intel Thermally Advantaged Small Chassis 1.0 vents help to improve the airflow and optimize thermal performance, keeping temperatures below 39°C.

Standard TFX 12V Power Supply

Internal TFX 200W~300W Power supply equipped with a temperature control sensor that reduces noise provides for quiet operation.

Antenna Mounting Hole Ready for WLAN Card

Tool-Free

Optional screw-less designs - ODD bay and side panel for easy assembly.

Screwless ODD Bay Clips

Screwless Top Cover Clips

Excellent Thermal Solution

•80x80x25mm System Fan
•Intel Thermally Advantaged Small Chassis 1.0 Vents
•Keeps temperatures below 39°C
•Optional Removable Air Filter

System Thermal Result

System Run Sound Pressure
Idle 29.2 dB
Max Power (CPU 100%) 33.4 dB

System Thermal Result

•CPU Ambient Average Temperature 38.4℃(101℉)

CPU Core™ 2 Duo E6550 2.33GHz(65W)
Ambience Temperature 35℃ (95℉)
Ta Average 34.6 (94℉)
Host Bridge 50.7℃ (123℉)
RAM 48.3℃ (119℉)
ODD 47.2℃ (117℉)
HDD 50.5℃ (123℉)
PSU Fan inside 43.6℃ (110℉)
PSU Fan outside 47.7℃ (118℉)
Second Fan inside 43.6℃ (110℉)
Second Fan outside 44.3℃ (112℉)

*Lab Test_ Intel Box CPU(Intel Core™ 2 Duo E6550 /2.33GHz, LGA 775, 65W).
* Source from In Win lab. All examined sources are subject to change at anytime, without prior notice.
* Performance tests and ratings are measured using specific computer systems and/or components and reflect the approximate performance of In Win products as measured by those tests. Any difference in system hardware, software design, or configuration may affect actual performance

Front Ports

•USB 3.0 x 2
•HD Audio x 1
•Optional IEEE 1394
•Optional USB 2.0 x 2

Rear Ports

‧eSATA x 1 (at Rear Panel w/ Module)
‧USB2.0 x 2 (at Rear Panel w/ Module)
‧Universal Antenna Modules (UAMs) Mounting Hole Ready

Optional

•Chassis Intrusion Switch •Screwless ODD Bay Clips
•Screwless Top Cover Clips •3.5" to 2.5" HDD/SSD Bracket

Supports 2.5" x 2

Optional 60 mm Fan x 1
(60 x 60 x 10 mm, 2500rpm, 20dB Fan, 4 Pin Power Connector)

Recommended Power Supply
