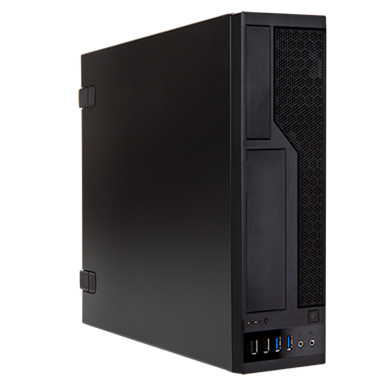

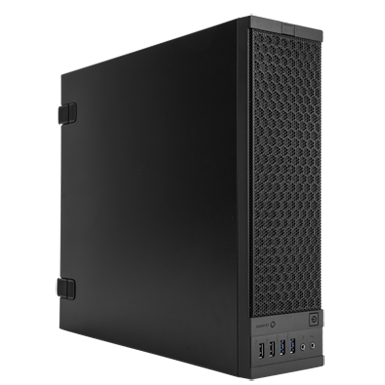

CE Series

Micro-ATX Chassis

11.9L Small Form Factor
Available in Selected Regions Only
Innovative thermal design without ventilation holes on the top, bottom or side panels. Placement in both Vertical and Horizontal stance.
• Slim Chassis
• Superior Thermal Solution
• Highly Expandable
• Easy Installation
• Tool-Free Side Cover

CE052

Specifications

Model
MB Form Factor
Case Size
Color
External Drive Bays
Internal Drive Bays
Front Ports
Product Dimensions
(H x W x D)
with Front Panel
Product Dimensions
(H x W x D)
w/o Front Panel
I/O Expansion Slots
Model
Power Supply
Thermal Solution
Safety
Security
Optional
Packing Dimensions
(H x W x D)
Shipping Information
  • CE052
    Micro-ATX / Mini-ITX
    11.9L
    S.F.F Slim Chassis
    • Black
    5.25" x 1, 3.5" x1 (Up to 92mm)
    3.5" x 1, 2.5" x 1
    USB 3.0 x 2 + USB 2.0 x 2 or USB 2.0 x 4,
    HD Audio
    334 x 97 x 402 mm
    (13.1” x 3.8” x 15.6”)
    334 x 96 x 370 mm (11.9L)
    13.1" x 3.8" x 14.6
    Low Profile Slot x 4
    CE052
    Standard TFX 12V Form Factor
    .90mm Front Fan x 1
    .Supports Removable Air Filter
    Meets RoHS, CE and FCC Class B Requirements
    Padlock Loop / Kensington Slot
    .Removable Air Filter
    .Chassis Intrusion Switch
    .Quick Release Side Cover
    .Key Lock Side Panel
    475 x 400 x 153 mm
    (18.7” x 15.7” x 6”)
    Single Packing:
    -20’: 1,040, 40’: 2,152 40’ H: 2,443

    Single Packing + Pallets:
    -20’: 700, 40’: 1,680, 40’ H: 2,016
  • CE685
    Micro-ATX / Mini-ITX
    11.9L
    S.F.F Slim Chassis
    • Black
    5.25" x 1, 3.5" x1 (Up to 92mm)
    3.5" x 1, 2.5" x 1
    USB 3.0 x 2 + USB 2.0 x 2 or USB 2.0 x 4,
    HD Audio
    334 x 97 x 402 mm
    (13.1” x 3.8” x 15.6”)
    334 x 96 x 370 mm (11.9L)
    13.1" x 3.8" x 14.6"
    Low Profile Slot x 4
    CE685
    Standard TFX 12V Form Factor
    .90mm Front Fan x 1
    .Supports Removable Air Filter
    Meets RoHS, CE and FCC Class B Requirements
    Padlock Loop / Kensington Slot
    .Removable Air Filter
    .Chassis Intrusion Switch
    .Quick Release Side Cover
    .Key Lock Side Panel
    475 x 400 x 153 mm
    (18.7” x 15.7” x 6”)
    Single Packing:
    -20’: 1,040, 40’: 2,152 40’ H: 2,443

    Single Packing + Pallets:
    -20’: 700, 40’: 1,680, 40’ H: 2,016
* The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make final modifications.

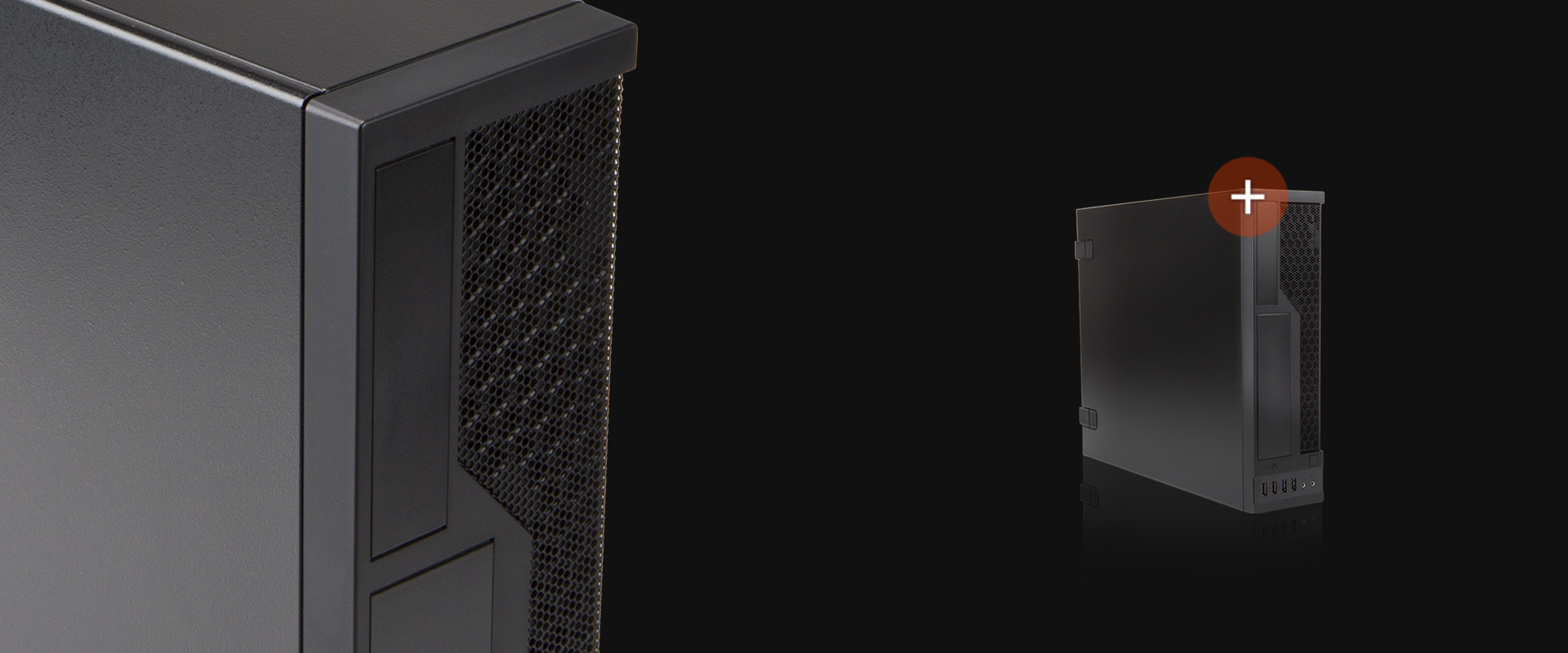

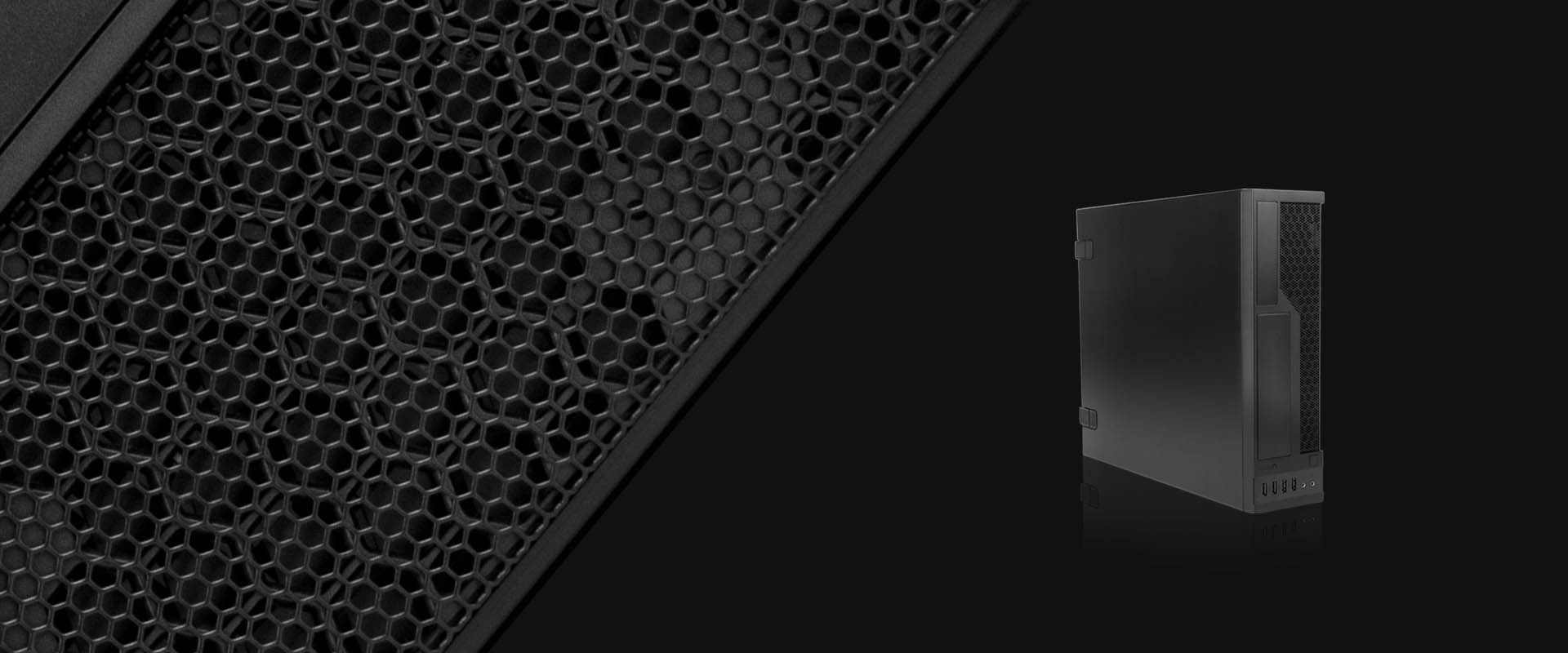

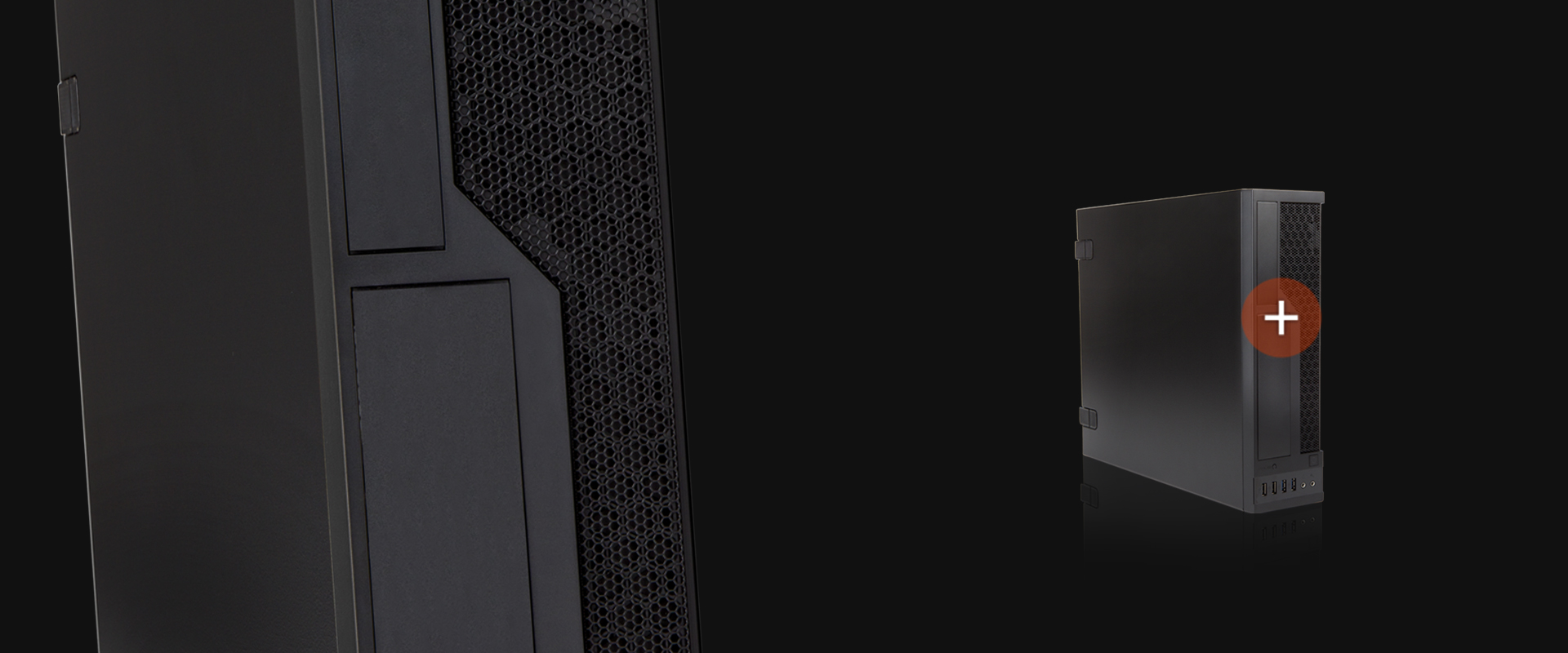

CE685

11.9 Liters Slim Chassis

Innovative thermal design without ventilation holes on the top, bottom or side panels. Placement in both Vertical or Horizontal stance.





Gallery

CE685

Specifications

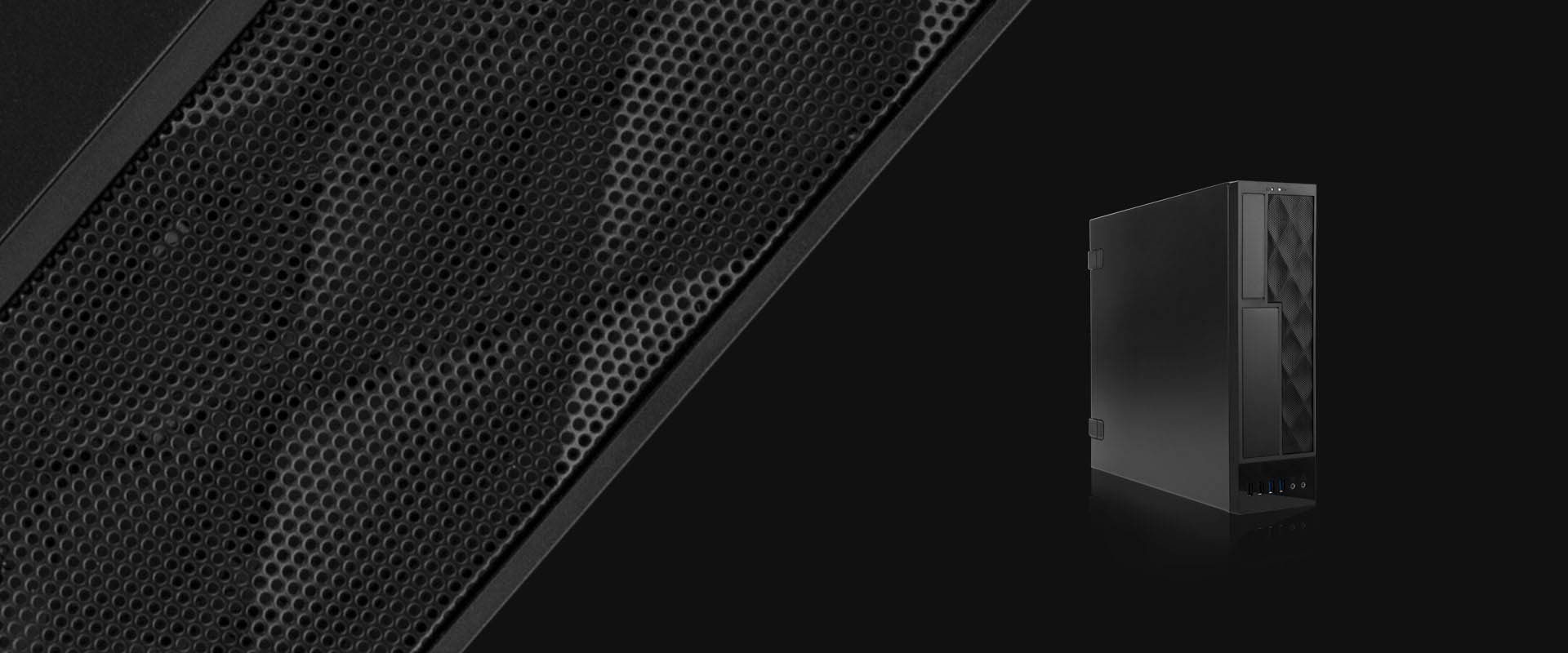

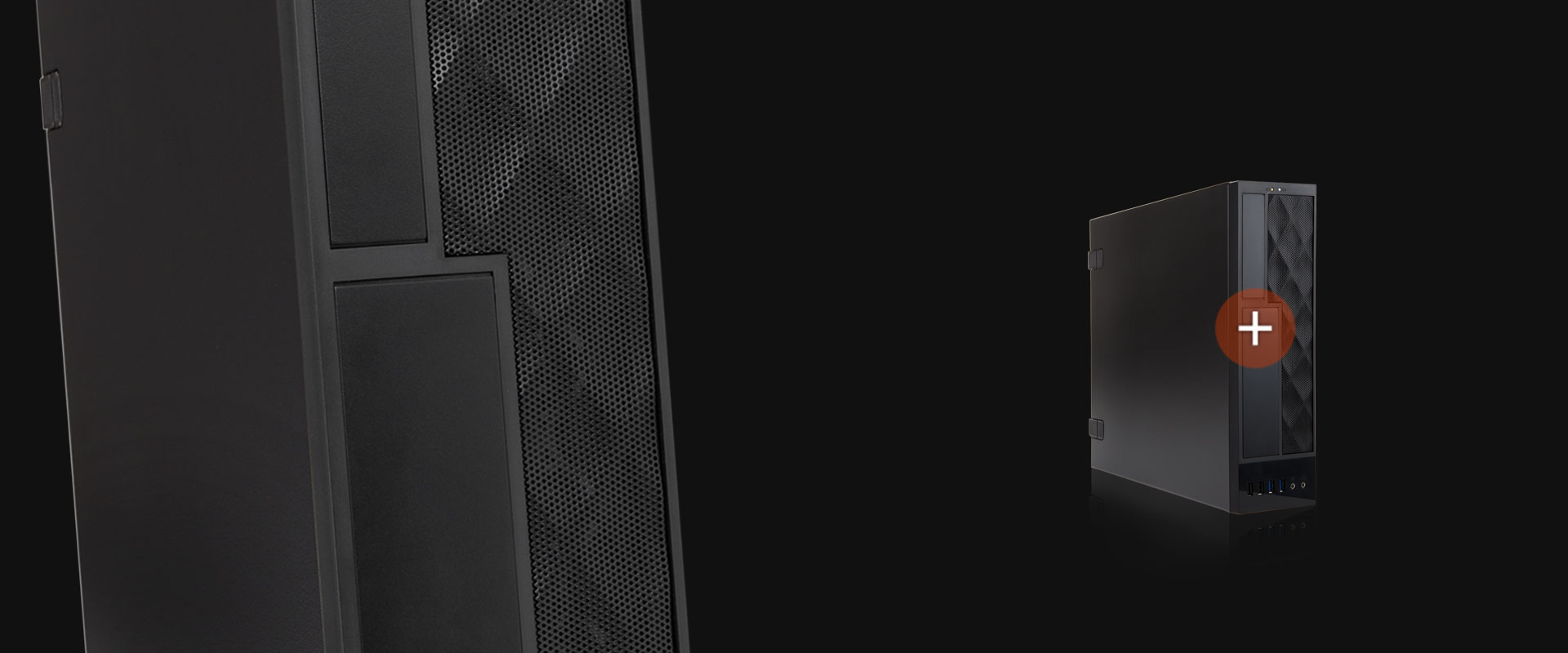

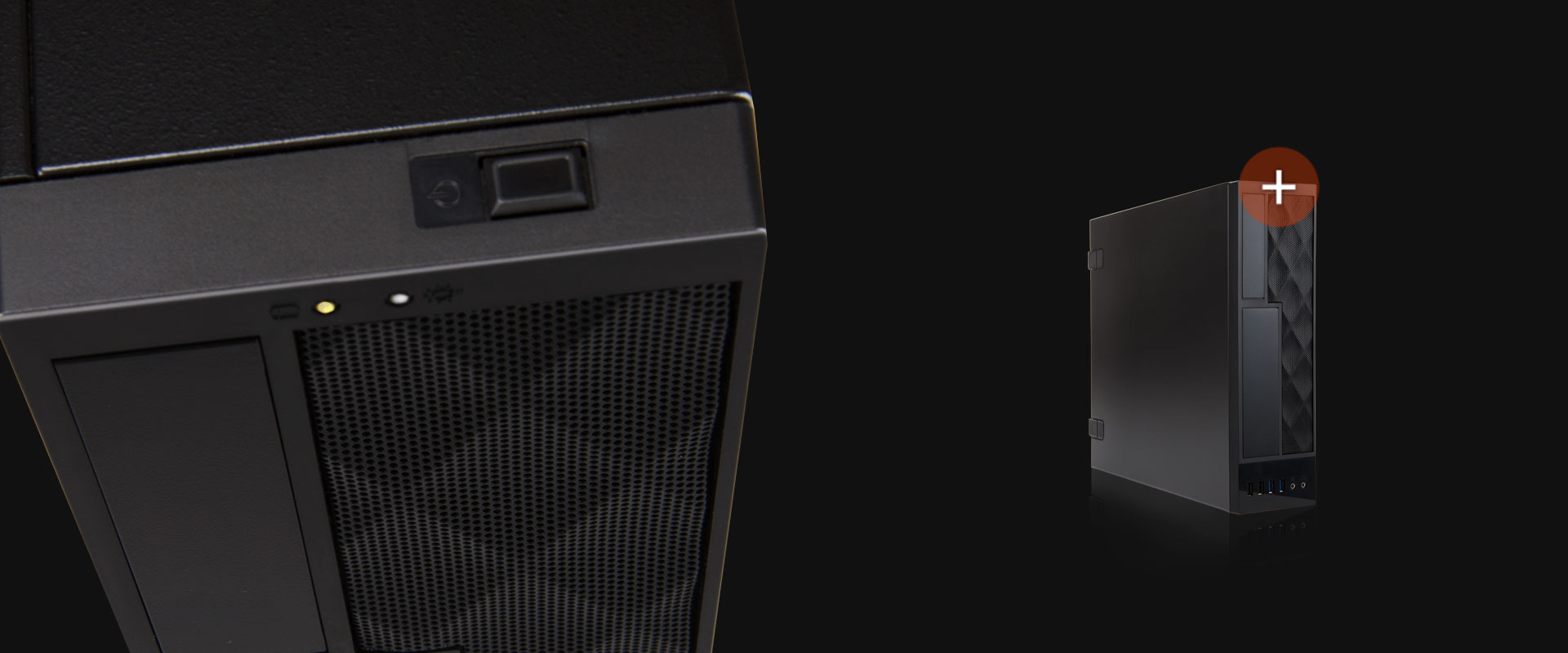

CE052

11.9 Liters Slim Chassis

Innovative thermal design without ventilation holes on the top, bottom or side panels. Placement in both Vertical or Horizontal stance.





Gallery

CE052

Specifications

Easy Installation

Tool-free design for ODD, HDD, fan bracket and PCI slots.

Superior Thermal Solution

Vacuum effect with a built-in 90mm front fan for quick heat dissipation

Highly Expandable

Equipped with two USB 3.0 and two USB 2.0 ports (or four USB 2.0) for multiple USB device connections

Tool-Free Side Cover

Optional Quick Release Side Cover

One touch release for fast system assembly or maintenance.

Tool-Free

Screwless ODD Bay Clips

Screwless Fan Bracket Clip

Screwless 3.5” HDD Bay

Screwless Expansion Slots Clip

Screwless 2.5” HDD Bays Clips

External Drive Bay

.5.25" x 1

.3.5" x 1 (Up to 92mm)

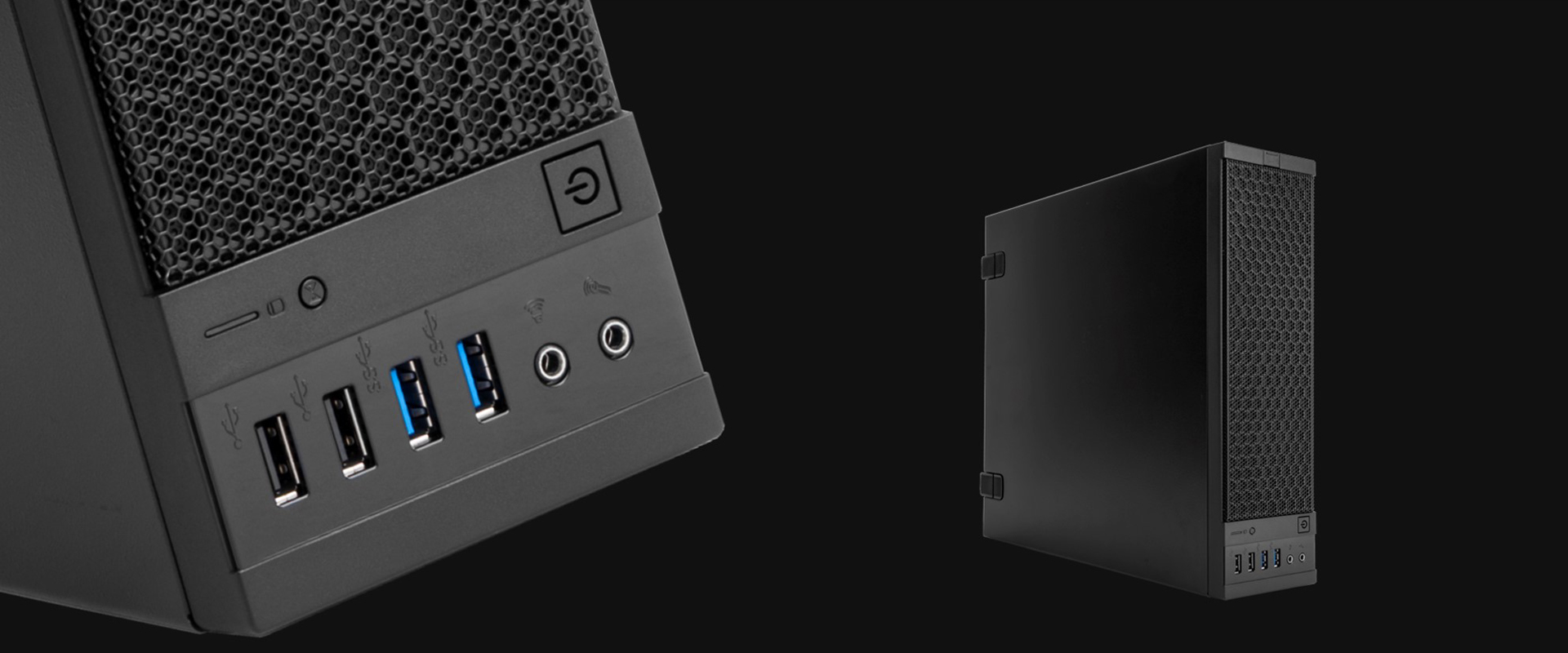

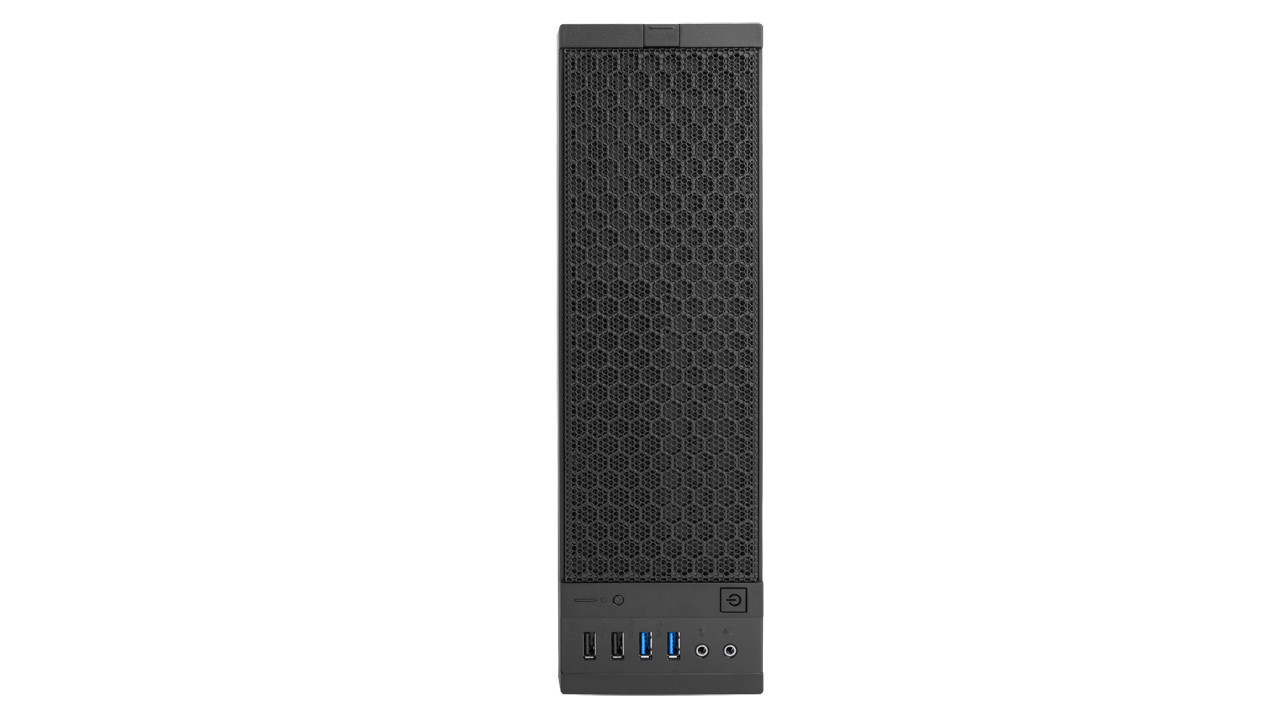

Front Ports

.USB 3.0 x 2 + USB 2.0 x 2 or USB 2.0 x 4
.HD Audio
.Optional USB 2.0 x 2

Optional

.Removable Air Filter

.Chassis Intrusion Switch

.Quick Release Side Cover
One touch release for fast system assembly or maintenance
