EAR Series

ATX Mid Tower Chassis

From innovative design to superior reliability, the stylish EAR Series brings you to build the systems that set the industry standard.
‧Configured up to 12 drive bays
‧Extra Vent at Rear Panel
‧Stamped Motherboard Support

EAR067

Specifications

Model
MB Form Factor
Case Size
Color
External Drive Bays
Internal Drive Bays
Front Ports
Product Dimensions
(H x W x D)
with Front Panel
Product Dimensions
(H x W x D)
w/o Front Panel
I/O Expansion Slots
Model
Compatibility
Power Supply
Thermal Solution
Safety
Security
Optional
Packing Dimensions
(H x W x D)
Shipping Information
  • EAR067
    ATX, Micro-ATX
    35.1L
    Mid Tower Chassis
    • Black
    5.25" x 2, 3.5” x 1
    3.5" x 7, 2.5” x 1
    USB 3.0 x 2 + USB 2.0 x 2,
    HD Audio
    416 x 190 x 480 mm
    16.4” x 7.5” x 18.9”
    ------------------
    416 x 199 x 480 mm
    16.4” x 7.8” x 18.9”
    (with Tool-Free Clips)
    415 x 190 x 445 mm
    (35.1L)
    16.3" x 7.5" x 17.5"
    PCI-E Expansion Slot x 7
    EAR067
    .Maximum Graphics Card Length / Width:
    282 mm / 165 mm
    (211 mm / 165 mm with HDDs Installed in Cage)
    .Maximum CPU Cooler Height:
    158 mm
    ATX 12V Form Factor, PSII Size
    ‧Intel Certified TAC 2.0
    ‧Supports 90 or 120mm Rear Fan
    ‧Supports 90 or 120mm Front Fan
    Meets RoHS, CE and FCC Class B Requirements
    Padlock Loop / Kensington Slot
    ‧3.5" to 2.5" HDD/SSD Bracket
    ‧90 or 120mm Rear Fan
    ‧90 or 120mm Front Fan
    ‧Screwless I/O Slot
    ‧Side Panel Clips
    ‧Type-C 3.2 Gen 2 x 2 (10 Gbps x 2)
    ‧Chassis Intrusion Switch
    515 x 460 x 223 mm
    (20.3” x 18.1” x 8.8”)
    Single Packing:
    -20’: 570, 40’: 1,190, 40’ H: 1,330
    Single Packing + Pallets:
    -20’: 480, 40’: 960, 40’ H: 1,080
  • EAR065
    ATX, Micro-ATX
    35.1L
    Mid Tower Chassis
    • Black / Red
    5.25" x 1, 3.5” x 1
    3.5" x 7, 2.5” x 1
    USB 2.0 x 2
    (or USB 3.0 x 2 + USB 2.0 x 2),
    HD Audio
    416 x 190 x 478 mm
    16.4” x 7.5” x 18.8”
    ------------------
    416 x 199 x 478 mm
    16.4” x 7.8” x 18.8”
    (with Tool-Free Clips)
    415 x 190 x 445 mm
    (35.1L)
    16.3" x 7.5" x 17.5"
    PCI-E Expansion Slot x 7
    EAR065
    .Maximum Graphics Card Length / Width:
    282 mm / 165 mm
    (211 mm / 165 mm with HDDs Installed in Cage)
    .Maximum CPU Cooler Height:
    158 mm
    ATX 12V Form Factor, PSII Size
    ‧Intel Certified TAC 2.0
    ‧Supports 90 or 120mm Rear Fan
    ‧Supports 90 or 120mm Front Fan
    Meets RoHS, CE and FCC Class B Requirements
    Padlock Loop / Kensington Slot
    ‧3.5" to 2.5" HDD/SSD Bracket
    ‧90 or 120mm Rear Fan
    ‧90 or 120mm Front Fan
    ‧Screwless I/O Slot
    ‧Side Panel Clips
    ‧USB 2.0 x 2
    ‧Type-C 3.2 Gen 2 x 2 (10 Gbps x 2)
    ‧Chassis Intrusion Switch
    515 x 460 x 223 mm
    (20.3” x 18.1” x 8.8”)
    Single Packing:
    -20’: 570, 40’: 1,190, 40’ H: 1,330
    Single Packing + Pallets:
    -20’: 480, 40’: 960, 40’ H: 1,080
  • EAR040
    ATX, Micro-ATX
    35.1L
    Mid Tower Chassis
    • Black
    5.25" x 3, 3.5” x 1
    3.5" x 7, 2.5” x 1
    USB 2.0 x 2
    (or USB 3.0 x 2),
    HD Audio
    416 x 190 x 486 mm
    16.4” x 7.5” x 19.1”
    ------------------
    416 x 199 x 486 mm
    16.4” x 7.8” x 19.1”
    (wthe Tool-Free Clips)
    415 x 190 x 445 mm
    (35.1L)
    16.3" x 7.5" x 17.5"
    PCI-E Expansion Slot x 7
    EAR040
    .Maximum Graphics Card Length / Width:
    282 mm / 165 mm
    (211 mm / 165 mm with HDDs Installed in Cage)
    .Maximum CPU Cooler Height:
    158 mm
    ATX 12V Form Factor, PSII Size
    ‧Intel Certified TAC 2.0
    ‧Supports 90 or 120mm Rear Fan
    ‧Supports 90 or 120mm Front Fan
    Meets RoHS, CE and FCC Class B Requirements
    Padlock Loop / Kensington Slot
    ‧3.5" to 2.5" HDD/SSD Bracket
    ‧90 or 120mm Rear Fan
    ‧90 or 120mm Front Fan
    ‧Screwless I/O Slot
    ‧Side Panel Clips
    ‧USB 2.0 x 2

    ‧Chassis Intrusion Switch
    515 x 460 x 223 mm
    (20.3” x 18.1” x 8.8”)
    Single Packing:
    -20’: 570, 40’: 1,190, 40’ H: 1,330
    Single Packing + Pallets:
    -20’: 480, 40’: 960, 40’ H: 1,080
  • EAR037
    ATX, Micro-ATX
    35.1L
    Mid Tower Chassis
    • Black / Sliver
    5.25" x 3, 3.5” x 1
    3.5" x 7, 2.5” x 1
    USB 2.0 x 2
    (or USB 3.0 x 2),
    HD Audio
    416 x 190 x 479 mm
    16.4” x 7.5” x 18.9”
    ------------------
    416 x 199 x 479 mm
    16.4” x 7.8” x 18.9”
    (wthe Tool-Free Clips)
    415 x 190 x 445 mm
    (35.1L)
    16.3" x 7.5" x 17.5"
    PCI-E Expansion Slot x 7
    EAR037
    .Maximum Graphics Card Length / Width:
    282 mm / 165 mm
    (211 mm / 165 mm with HDDs Installed in Cage)
    .Maximum CPU Cooler Height:
    158 mm
    ATX 12V Form Factor, PSII Size
    ‧Intel Certified TAC 2.0
    ‧Supports 90 or 120mm Rear Fan
    ‧Supports 90 or 120mm Front Fan
    Meets RoHS, CE and FCC Class B Requirements
    Padlock Loop / Kensington Slot
    ‧3.5" to 2.5" HDD/SSD Bracket
    ‧90 or 120mm Rear Fan
    ‧90 or 120mm Front Fan
    ‧Screwless I/O Slot
    ‧Side Panel Clips
    ‧USB 2.0 x 2

    ‧Chassis Intrusion Switch
    515 x 460 x 223 mm
    (20.3” x 18.1” x 8.8”)
    Single Packing:
    -20’: 570, 40’: 1,190, 40’ H: 1,330
    Single Packing + Pallets:
    -20’: 480, 40’: 960, 40’ H: 1,080
  • EAR035
    ATX, Micro-ATX
    35.1L
    Mid Tower Chassis
    • Black / Sliver
    5.25” x 3, 3.5" x 2
    3.5" x 6 , 2.5" x 1
    USB 2.0 x 2
    (or USB 3.0 x 2),
    HD Audio
    416 x 190 x 483 mm
    16.4” x 7.5” x 19”
    ------------------
    416 x 199 x 483 mm
    16.4” x 7.8” x 19”
    (wthe Tool-Free Clips)
    415 x 190 x 445 mm
    (35.1L)
    16.3" x 7.5" x 17.5"
    PCI-E Expansion Slot x 7
    EAR035
    .Maximum Graphics Card Length / Width:
    282 mm / 165 mm
    (211 mm / 165 mm with HDDs Installed in Cage)
    .Maximum CPU Cooler Height:
    158 mm
    ATX 12V Form Factor, PSII Size
    ‧Intel Certified TAC 2.0
    ‧Supports 90 or 120mm Rear Fan
    ‧Supports 90 or 120mm Front Fan
    Meets RoHS, CE and FCC Class B Requirements
    Padlock Loop / Kensington Slot
    ‧3.5" to 2.5" HDD/SSD Bracket
    ‧90 or 120mm Rear Fan
    ‧90 or 120mm Front Fan
    ‧Screwless I/O Slot
    ‧Side Panel Clips
    ‧USB 3.0 x 2

    ‧Chassis Intrusion Switch
    515 x 460 x 223 mm
    (20.3” x 18.1” x 8.8”)
    Single Packing:
    -20’: 570, 40’: 1,190, 40’ H: 1,330
    Single Packing + Pallets:
    -20’: 480, 40’: 960, 40’ H: 1,080
  • EAR013
    ATX, Micro-ATX
    35.1L
    Mid Tower Chassis
    • Black / Sliver
    • Black
    5.25” x 3, 3.5" x 2
    3.5" x 6 , 2.5" x 1
    USB 2.0 x 2
    (or USB 3.0 x 2),
    Audio
    416 x 190 x 485 mm
    16.4” x 7.5” x 19.1”
    ------------------
    416 x 199 x 485 mm
    16.4” x 7.8” x 19.1”
    (wthe Tool-Free Clips)
    415 x 190 x 445 mm
    (35.1L)
    16.3" x 7.5" x 17.5"
    PCI-E Expansion Slot x 7
    EAR013
    .Maximum Graphics Card Length / Width:
    282 mm / 165 mm
    (211 mm / 165 mm with HDDs Installed in Cage)
    .Maximum CPU Cooler Height:
    158 mm
    ATX 12V Form Factor, PSII Size
    ‧Intel Certified TAC 2.0
    ‧Supports 90 or 120mm Rear Fan
    ‧Supports 90 or 120mm Front Fan
    Meets RoHS, CE and FCC Class B Requirements
    Padlock Loop / Kensington Slot
    ‧3.5" to 2.5" HDD/SSD Bracket
    ‧90 or 120mm Rear Fan
    ‧90 or 120mm Front Fan
    ‧Screwless I/O Slot
    ‧Side Panel Clips
    ‧USB 3.0 x 2
    ‧IEEE 1394
    ‧Chassis Intrusion Switch
    515 x 460 x 223 mm
    (20.3” x 18.1” x 8.8”)
    Single Packing:
    -20’: 570, 40’: 1,190, 40’ H: 1,330
    Single Packing + Pallets:
    -20’: 480, 40’: 960, 40’ H: 1,080
  • EAR002
    ATX, Micro-ATX
    35.1L
    Mid Tower Chassis
    • Black / Sliver
    5.25” x 3, 3.5" x 2
    3.5" x 6 , 2.5" x 1
    USB 2.0 x 2
    (or USB 3.0 x 2),
    Audio
    416 x 190 x 492 mm
    16.4” x 7.5” x 19.4”
    ------------------
    416 x 199 x 492 mm
    16.4” x 7.8” x 19.4”
    (wthe Tool-Free Clips)
    415 x 190 x 445 mm
    (35.1L)
    16.3" x 7.5" x 17.5"
    PCI-E Expansion Slot x 7
    EAR002
    .Maximum Graphics Card Length / Width:
    282 mm / 165 mm
    (211 mm / 165 mm with HDDs Installed in Cage)
    .Maximum CPU Cooler Height:
    158 mm
    ATX 12V Form Factor, PSII Size
    ‧Intel Certified TAC 2.0
    ‧Supports 90 or 120mm Rear Fan
    ‧Supports 90 or 120mm Front Fan
    Meets RoHS, CE and FCC Class B Requirements
    Padlock Loop / Kensington Slot
    ‧3.5" to 2.5" HDD/SSD Bracket
    ‧90 or 120mm Rear Fan
    ‧90 or 120mm Front Fan
    ‧Screwless I/O Slot
    ‧Side Panel Clips
    ‧USB 3.0 x 2
    ‧IEEE 1394
    ‧Chassis Intrusion Switch
    515 x 460 x 223 mm
    (20.3” x 18.1” x 8.8”)
    Single Packing:
    -20’: 570, 40’: 1,190, 40’ H: 1,330
    Single Packing + Pallets:
    -20’: 480, 40’: 960, 40’ H: 1,080
* The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make final modifications.

EAR067

Design. Value. Service. Safety.

With innovative design, superior service and regulatory compliancy, the EAR Series will definitely improve your bottom line.

‧USB 3.0 x 2 + USB 2.0 x 2
‧HD Audio
‧Optional Type-C 3.2 Gen 2 x 2 (10 Gbps x 2)





Gallery

EAR067

Specifications

EAR065

Design. Value. Service. Safety.

With innovative design, superior service and regulatory compliancy, the EAR Series will definitely improve your bottom line.

‧USB 2.0 x 2 or USB 3.0 x 2 + USB 2.0 x 2
‧HD Audio
‧Optional Type-C 3.2 Gen 2 x 2 (10 Gbps x 2)





Gallery

EAR065

Specifications

EAR040

Design. Value. Service. Safety.

With innovative design, superior service and regulatory compliancy, the EAR Series will definitely improve your bottom line.

‧USB 3.0 x 2 or USB 2.0 x 2
‧HD Audio
‧Optional Type-C

40




Gallery

EAR040

Specifications

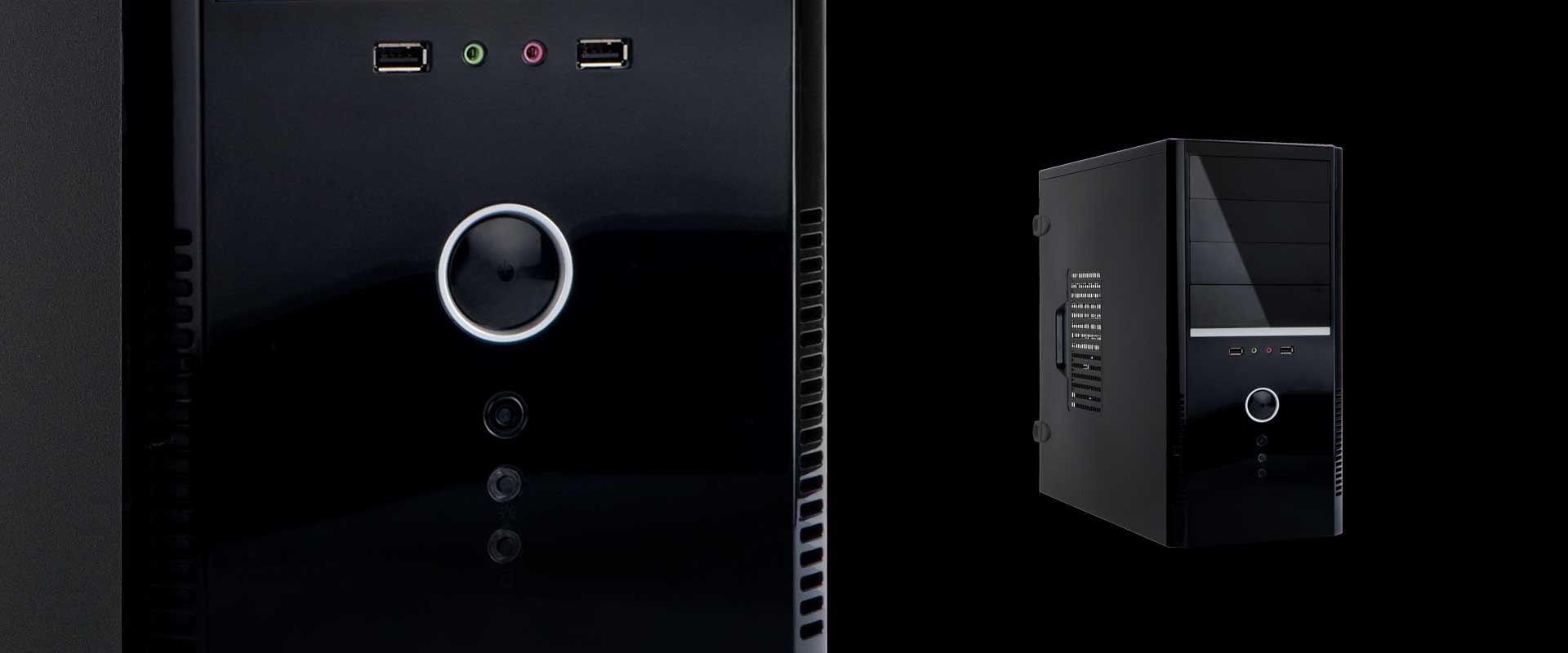

EAR037

Design. Value. Service. Safety.

With innovative design, superior service and regulatory compliancy, the EAR Series will definitely improve your bottom line.

‧USB 2.0 x 2
‧HD Audio
‧Optional USB 3.0 x 2





Gallery

EAR037

Specifications

EAR035

Design. Value. Service. Safety.

With innovative design, superior service and regulatory compliancy, the EAR Series will definitely improve your bottom line.

‧USB 2.0 x 2
‧HD Audio
‧Optional USB 3.0 x 2





Gallery

EAR035

Specifications

EAR013

Design. Value. Service. Safety.

With innovative design, superior service and regulatory compliancy, the EAR Series will definitely improve your bottom line.

‧USB 2.0 x 2
‧HD Audio
‧Optional USB 3.0 x 2




Gallery

EAR013

Specifications

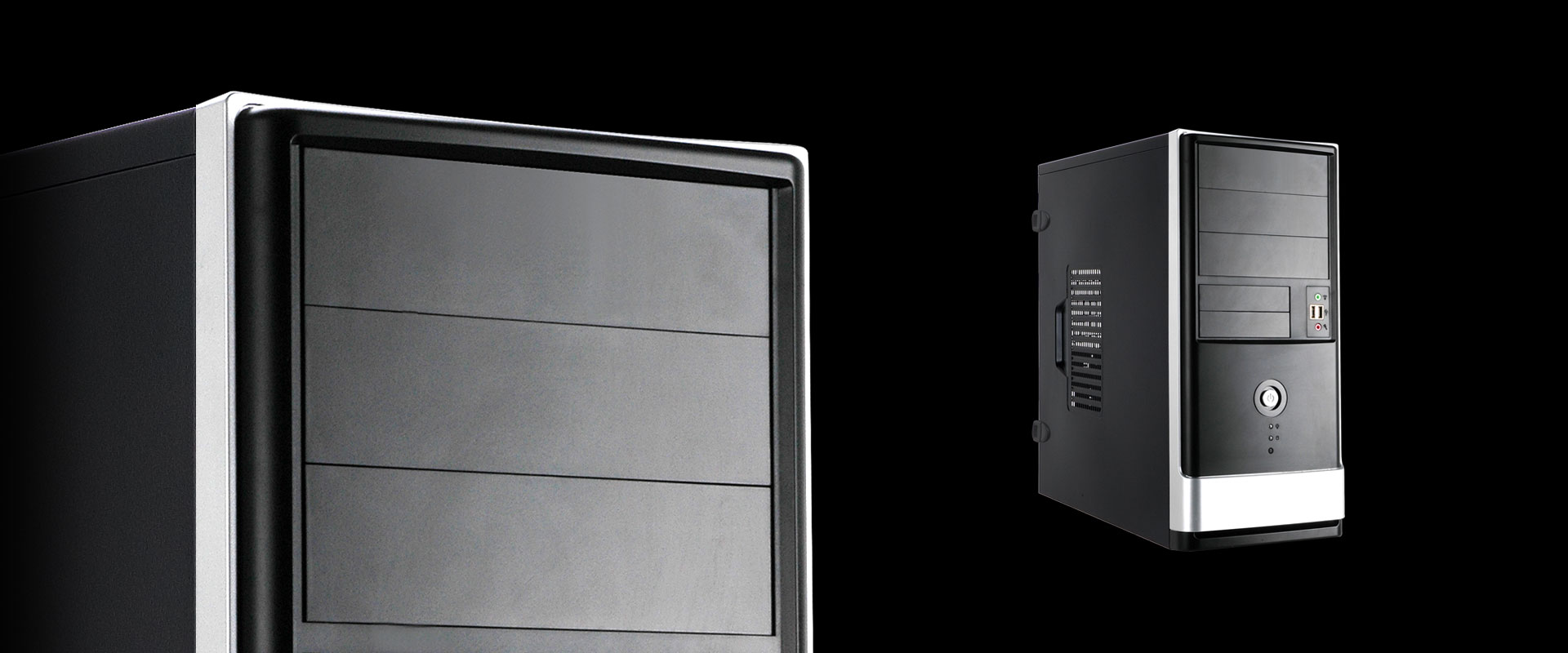

EAR002

Design. Value. Service. Safety.

With innovative design, superior service and regulatory compliancy, the EAR Series will definitely improve your bottom line.

‧USB 2.0 x 2
‧HD Audio
‧Optional USB 3.0 x 2




Gallery

EAR002

Specifications

TAC 2.0 Thermal Solution

Qualified for TAC 2.0, a mass ventilation hole side panel design strengthens thermal efficiency and cools down the entire system.

Configured up to 12 Drive Bays

5.25" x 3, 3.5" x 8 and 2.5” x 1 drive bays for expandability of future upgrade.

Extra Vent at Reat Panel

Optional 90mm or 120mm auxiliary cooling fan can be installed at rear panel for better system cooling. (Optional fan is not included)

Stamped Motherboard Support

Easy MB installation. No MB standoff required.

Tool-Free

‧Optional Screwless I/O Slot

‧Optional Tool-Free Side Panel Clips

Internal Drive Bays

‧Internal 3.5” Drive Bays x 6

‧Internal 2.5” x 1

Excellent Thermal Solution

.Intel Certificated TAC 2.0

Additional ventilation holes on the side panel

90 or 120mm Front Fan (Optional)

120mm Rear Fan (Optional)

Optional

3.5” to 2.5”
HDD/SSD Bracket
Supports 2.5”x 2

Optional 60 mm Fan x 1
(60 x 60 x 10 mm, 2500rpm, 20dB Fan, 4 Pin Power Connector)
