Z Series

Micro-ATX Mini Tower Chassis

  • Tool-Free Installation and Easy Maintenance
  • Best Performed SECC Japanese Steel Metal
  • Excellent Thermal Solution
Z638

Specifications

Model
MB Form Factor
Case Size
Color
External Drive Bays
Internal Drive Bays
Front Ports
Product Dimensions
(H x W x D)
with Front Panel
Product Dimensions
(H x W x D)
w/o Front Panel
I/O Expansion Slots
Model
Power Supply
Thermal Solution
Safety
Security
Optional
Packing Dimensions
(H x W x D)
Shipping Information
  • Z638
    Micro-ATX, Mini-ITX
    24.2L
    Mini Tower Chassis
    • Black
    • Black / Sliver
    5.25" x 2, 3.5" x 2
    3.5" x 1, 2.5” x 1
    USB 2.0 x 2 (or USB 3.0 x 2),
    HD Audio
    361 x 189 x 412 mm
    14.2” x 7.4” x 16.2”
    363 x 180 x 370 mm (24.2L)
    14.3" x 7.1" x 14.6"
    PCI-E Expansion Slot x 4
    Z638
    ATX 12V Form Factor,
    PSⅡ Size
    .Intel Certified TAC 2.0
    .Supports 80mm Rear Fan
    Meets RoHS, CE and FCC Class B Requirements
    Padlock Loop / Kensington Slot
    .3.5" to 2.5" HDD/SSD Bracket
    .80mm or 90mm Rear Fan
    .USB 3.0 x 2
    .eSATA
    .Chassis Intrusion Switch
    455 x 411 x 215 mm
    (17.9” x 16.2” x 8.5”)
    Single Packing:
    -20’: 720, 40’: 1,510, 40’ H: 1,674
    Single Packing + Pallets:
    -20’: 600, 40’: 1,200, 40’ H: 1,280
  • Z589
    Micro-ATX, Mini-ITX
    24.2L
    Mini Tower Chassis
    • Black / Sliver
    • White
    5.25" x 2, 3.5" x 2
    3.5" x 1, 2.5” x 1
    USB 2.0 x 2 (or USB 3.0 x 2),
    HD Audio
    361 x 189 x 417 mm
    14.2” x 7.4” x 16.4”
    363 x 180 x 370 mm (24.2L)
    14.3" x 7.1" x 14.6"
    PCI-E Expansion Slot x 4
    Z589
    ATX 12V Form Factor,
    PSⅡ Size
    .Intel Certified TAC 2.0
    .Supports 80mm Rear Fan
    Meets RoHS, CE and FCC Class B Requirements
    Padlock Loop / Kensington Slot
    .3.5" to 2.5" HDD/SSD Bracket
    .80mm or 90mm Rear Fan
    .USB 3.0 x 2
    .eSATA
    .Chassis Intrusion Switch
    455 x 411 x 215 mm
    (17.9” x 16.2” x 8.5”)
    Single Packing:
    -20’: 720, 40’: 1,510, 40’ H: 1,674
    Single Packing + Pallets:
    -20’: 600, 40’: 1,200, 40’ H: 1,280
  • Z583
    Micro-ATX, Mini-ITX
    24.2L
    Mini Tower Chassis
    • Black / Sliver
    • White / Sliver
    5.25" x 2, 3.5" x 2
    3.5" x 1, 2.5” x 1
    USB 2.0 x 2 (or USB 3.0 x 2),
    HD Audio
    361 x 189 x 411 mm
    14.2” x 7.4” x 16.2”
    363 x 180 x 370 mm (24.2L)
    14.3" x 7.1" x 14.6"
    PCI-E Expansion Slot x 4
    Z583
    ATX 12V Form Factor,
    PSⅡ Size
    .Intel Certified TAC 2.0
    .Supports 80mm Rear Fan
    Meets RoHS, CE and FCC Class B Requirements
    Padlock Loop / Kensington Slot
    .3.5" to 2.5" HDD/SSD Bracket
    .80mm or 90mm Rear Fan
    .USB 3.0 x 2
    .eSATA
    .Chassis Intrusion Switch
    455 x 411 x 215 mm
    (17.9” x 16.2” x 8.5”)
    Single Packing:
    -20’: 720, 40’: 1,510, 40’ H: 1,674
    Single Packing + Pallets:
    -20’: 600, 40’: 1,200, 40’ H: 1,280
* The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make final modifications.

Z638

Best Performed SECC Japanese Steel Metal

0.8 mm sheet metal construction for better stability & durability.





Gallery

Z638

Specifications

Z589

Best Performed SECC Japanese Steel Metal

0.8 mm sheet metal construction for better stability & durability.





Gallery

Z589

Specifications

Z583

Best Performed SECC Japanese Steel Metal

0.8 mm sheet metal construction for better stability & durability.





Gallery

Z583

Specifications

Tool-Free Installation and Easy Maintenance

Tool-free front panel, drive bays and I/O slots.

Configured 6 Drive Bays

5.25” x 2, 3.5” x 3 and 2.5” x 1 drive bays for expandability of future upgrade.

Side Panel Clips

The patented tool free installation side panel clips.

Folded Edge

No sharp edges or debris for safe installation

Stamped Motherboard Support

Easy MB installation. No MB standoff required.

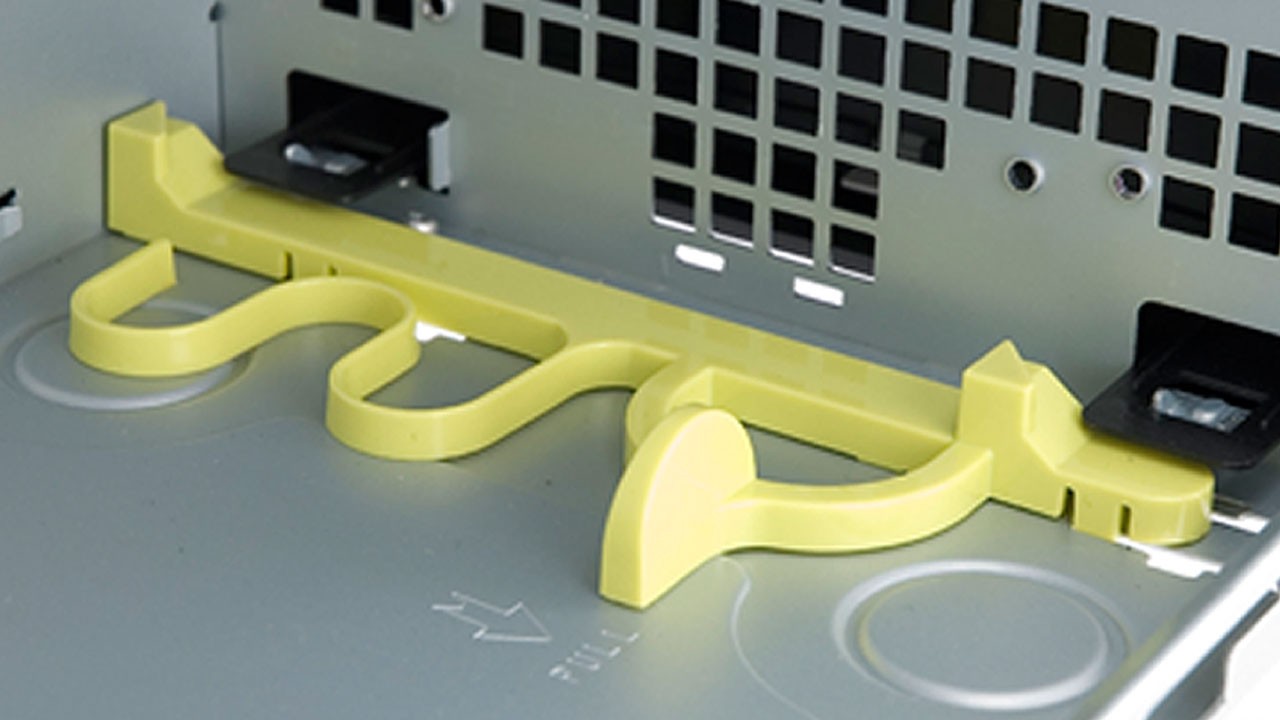

Tool-Free

Screwless Front Panel

Screwless Side Panels

Screwless 5.25" Drive Bays

Screwless 3.5" Drive Bays

Screwless PCI-E Expansion Slots

3.5”/2.5” Drive Bays

.3.5” Drive Bays x 3

.Internal 2.5” x 1

Excellent Thermal Solution

.Intel Certified TAC 2.0
Qualified for TAC 2.0,a mass ventilation hole side panel
design that strengthens thermal efficiency and cools down the entire system.

.80mm or 90mm Rear Fan (Optional)

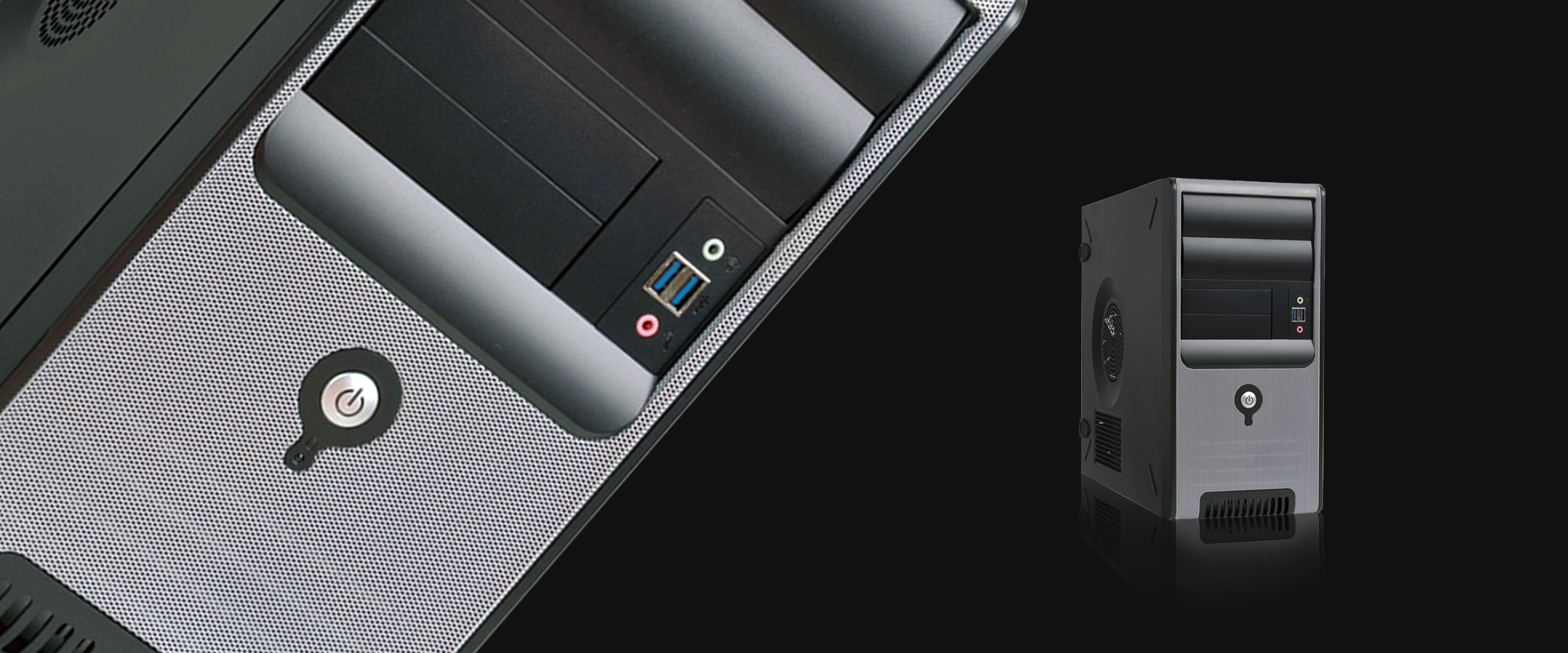

Front Ports

.USB 2.0 x 2
.HD Audio
.Optional USB 3.0 x 2

Optional

.eSATA .Chassis Intrusion Switch

3.5” to 2.5” HDD / SSD Bracket Supports 2.5”x 2

Optional 60 mm Fan x 1 (60 x 60 x 10 mm, 2500rpm, 20dB Fan, 4 Pin Power Connector)

Recommended Power Supply
