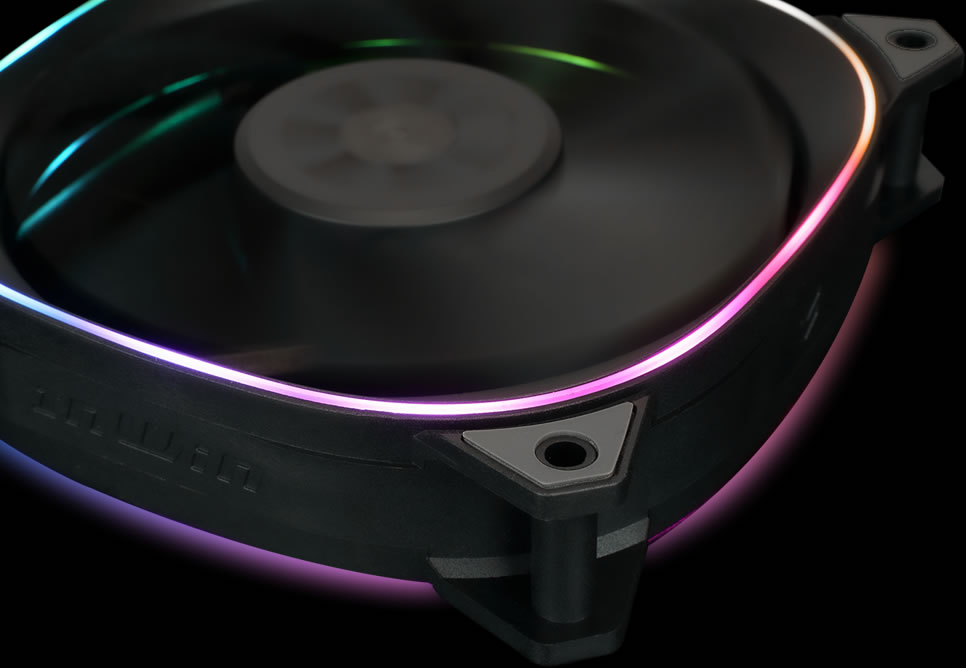

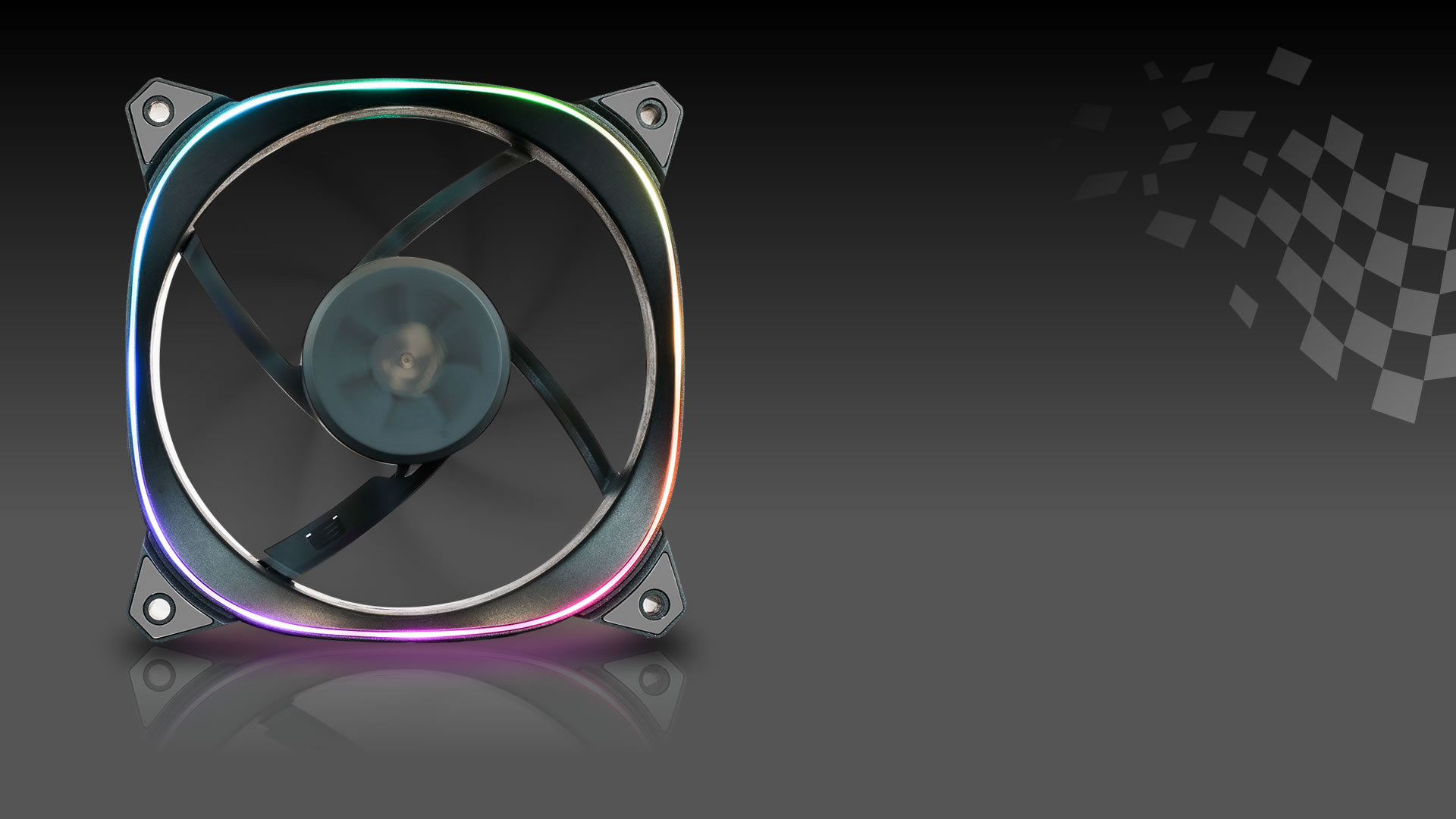

Distinct Squoval Frame Design Traced with ARGB Lighting

The fan's architecture embraces and integrates a unique geometric shape. Coupled with a solid touch of ARGB lighting on both sides of the frame, commanding absolute attention!

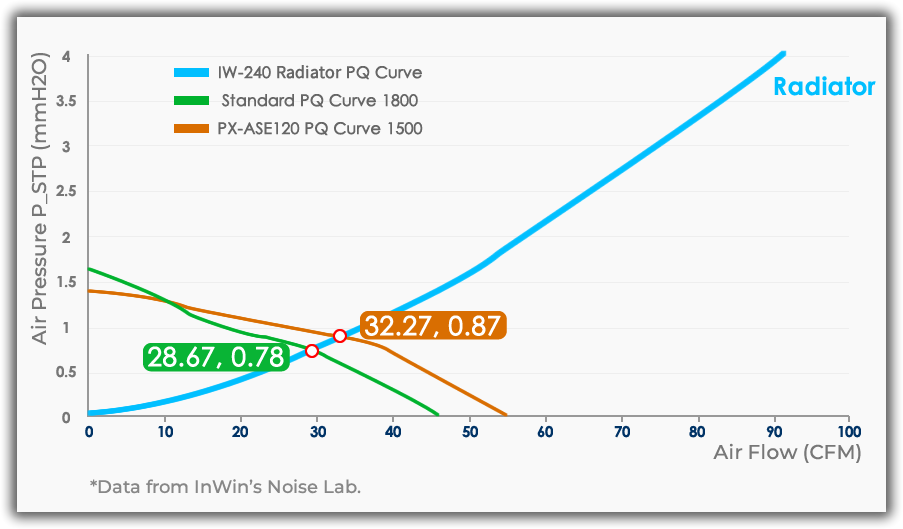

Optimized PQ Curve for Better Performance

The fan performs its best PQ curve at 1500rpm and can reach up to 54 CFM with a stronger airflow rate compared to other standard fans.

InWin Structural Upgrades Generate Extreme Airflow! Sirius Extreme's structure has been strenuously tested to provide opti

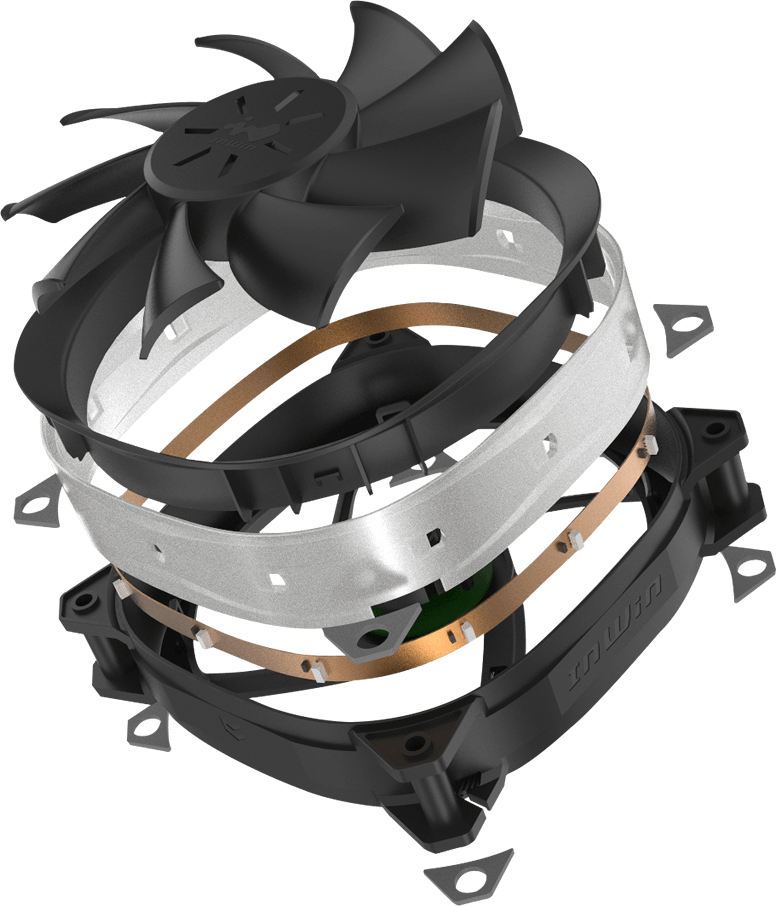

Structural Upgrades Generate Extreme Airflow!

Sirius Extreme's structure has been strenuously tested to provide optimal air pressure, preventing your PC from overheating.

14 Lighting Modes with Easy Cable Connections

You have two options to set up your ARGB lighting: 1) Use the provided ARGB One-Click Controller, which possesses 14 luminescent lighting modes. 2) Connect the fans directly to a 3-pin, 5V ARGB header on an ARGB motherboard. The choice is yours!

*The ARGB One-Click Controller is provided when you purchase the triple pack of ASE120. If a single pack is purchased, you can still control the lighting effect by connecting to an ARGB motherboard directly.

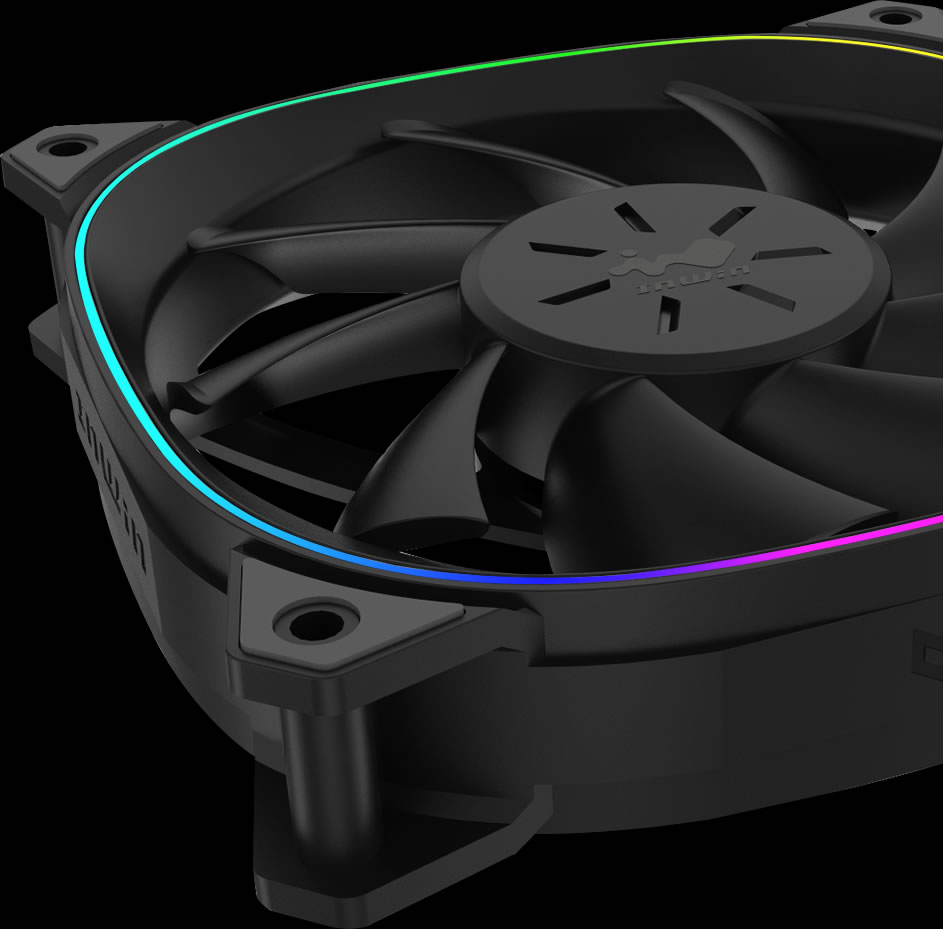

Intricate Detailing to Meet Your Standards

Sensible frame tactically angled, sickle-shaped blades deliberately designed to push more air, while the ventilation holes are designed to create an extra source of cooling to the fan internals.

Fast Lane Cooling!

Sirius Extreme is inspired by Esport gaming enthusiasts that can envision their gaming rig and case fans with the vibes and intensity of car racing!

Cable Information

Single Pack Cable Information

PWM Fan Cable

600mm+100mm

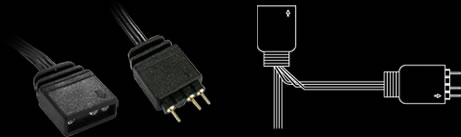

Addressable RGB Cable

500mm+100mm

Triple Pack Cable Information

PWM Fan Cable

600mm+100mm

Addressable RGB Cable

500mm+100mm

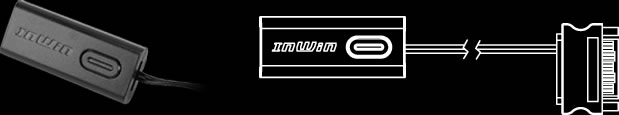

Addressable RGB One-Click Controller

272mm

Specifications

Model	Sirius Extreme ASE120

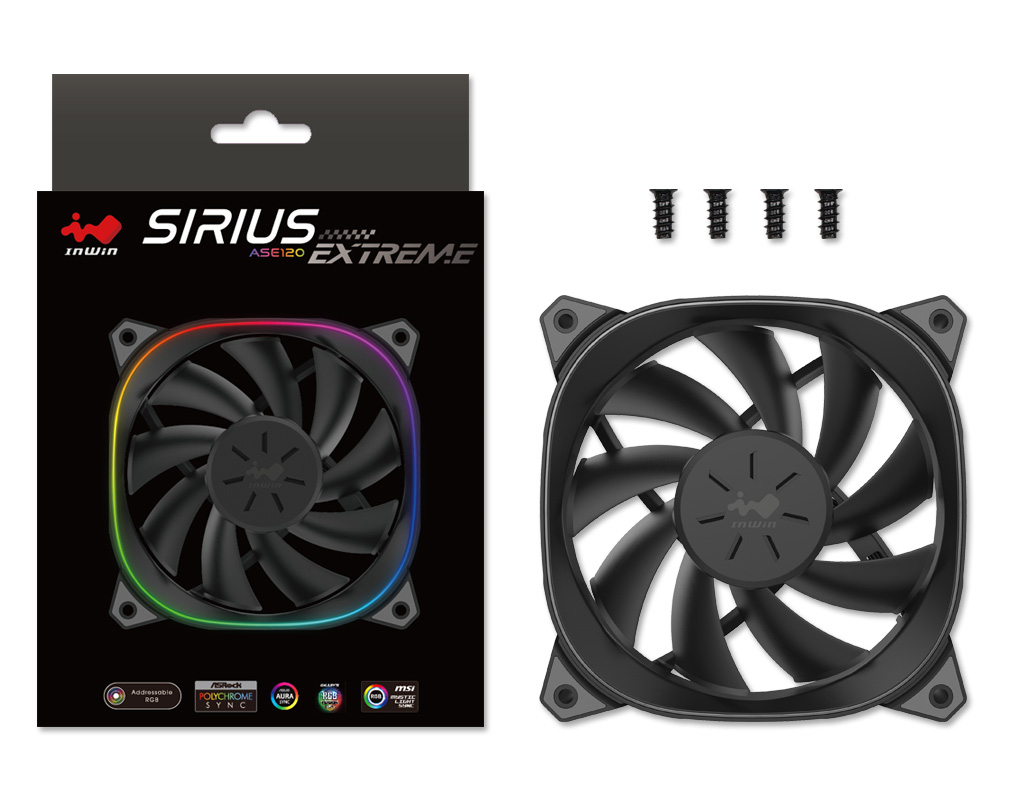

Quantity Included	Single Pack	Triple Pack
Model Number	IW-FN-ASE120-1PK	IW-FN-ASE120-3PK
Colors	Black
Fan Size	120 x 120 x 25 mm
Materials	PC, PBT
Rated Voltage	DC 12V
Rated Power	1.56W
Rated Current	0.13A
ADD RGB Rated Voltage	DC 5V
ADD RGB Rated Power	1.5W
ADD RGB Rated Current	0.30A
Speed Mode	PWM 400 - 1500 +/- 10% RPM
Air Flow	54 CFM
Air Pressure	1.55 mm / H2O
LED	ARGB
Connector (Fan to Fan)	Non-Modular Cables
Connector to M/B	4 Pin (PWM, 12V), 3 Pin (ARGB, 5V)
Noise Level	25 dB(A) (Max.) / 21 dB(A) (Normal)
Bearing Type	Long Lifespan Sleeve Bearing
Net Weight	200 g	600 g
Package Dimensions (L x W x H)	125 x 185 x 30 mm	125 x 185 x 80 mm
Warranty	2 Years
* InWin's products comply with RoHS regulation. * Specifications may vary based on different regions.
