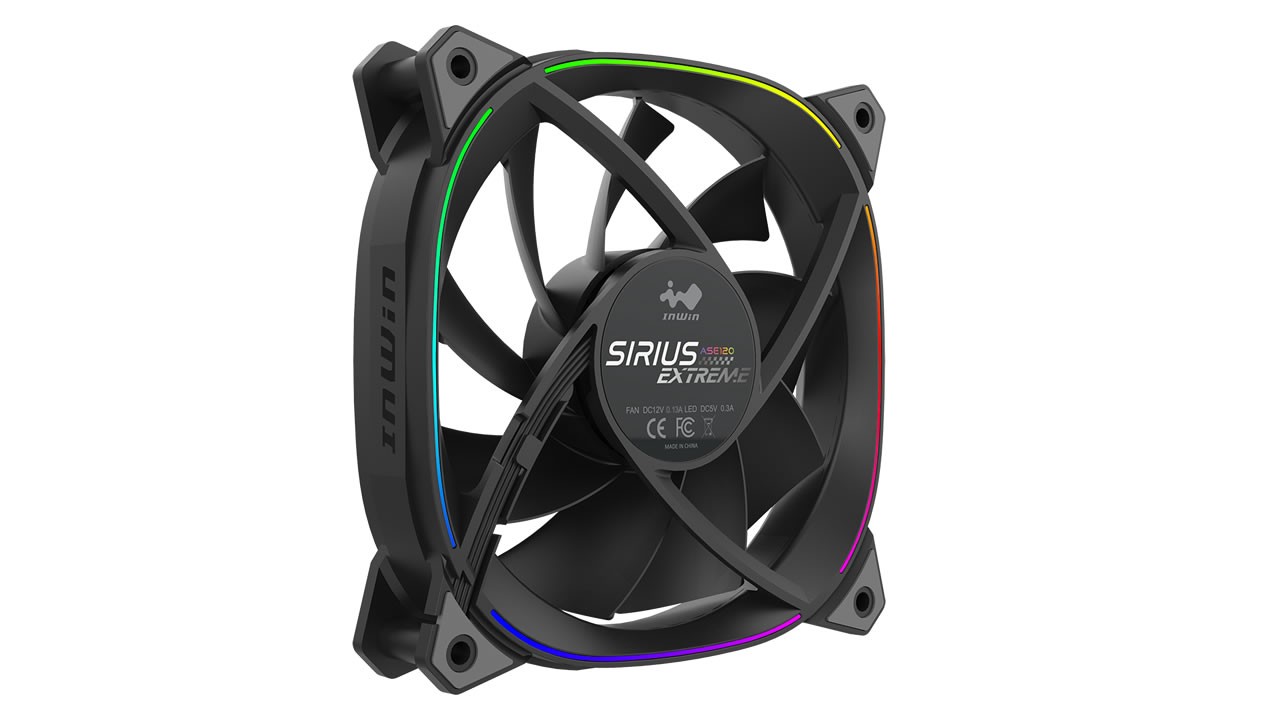

Sirius Extreme ASE120
0%

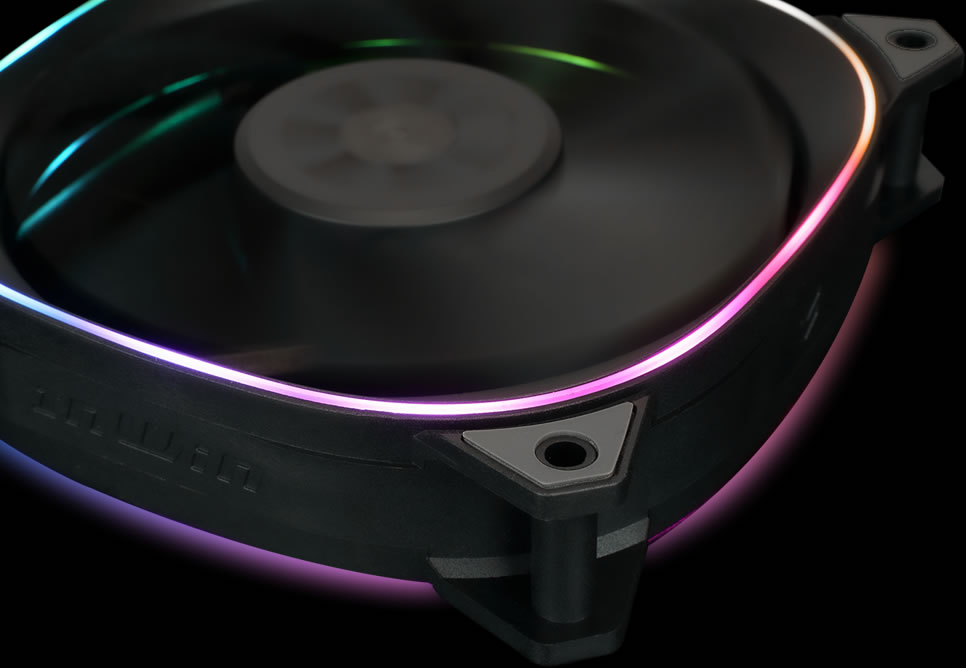

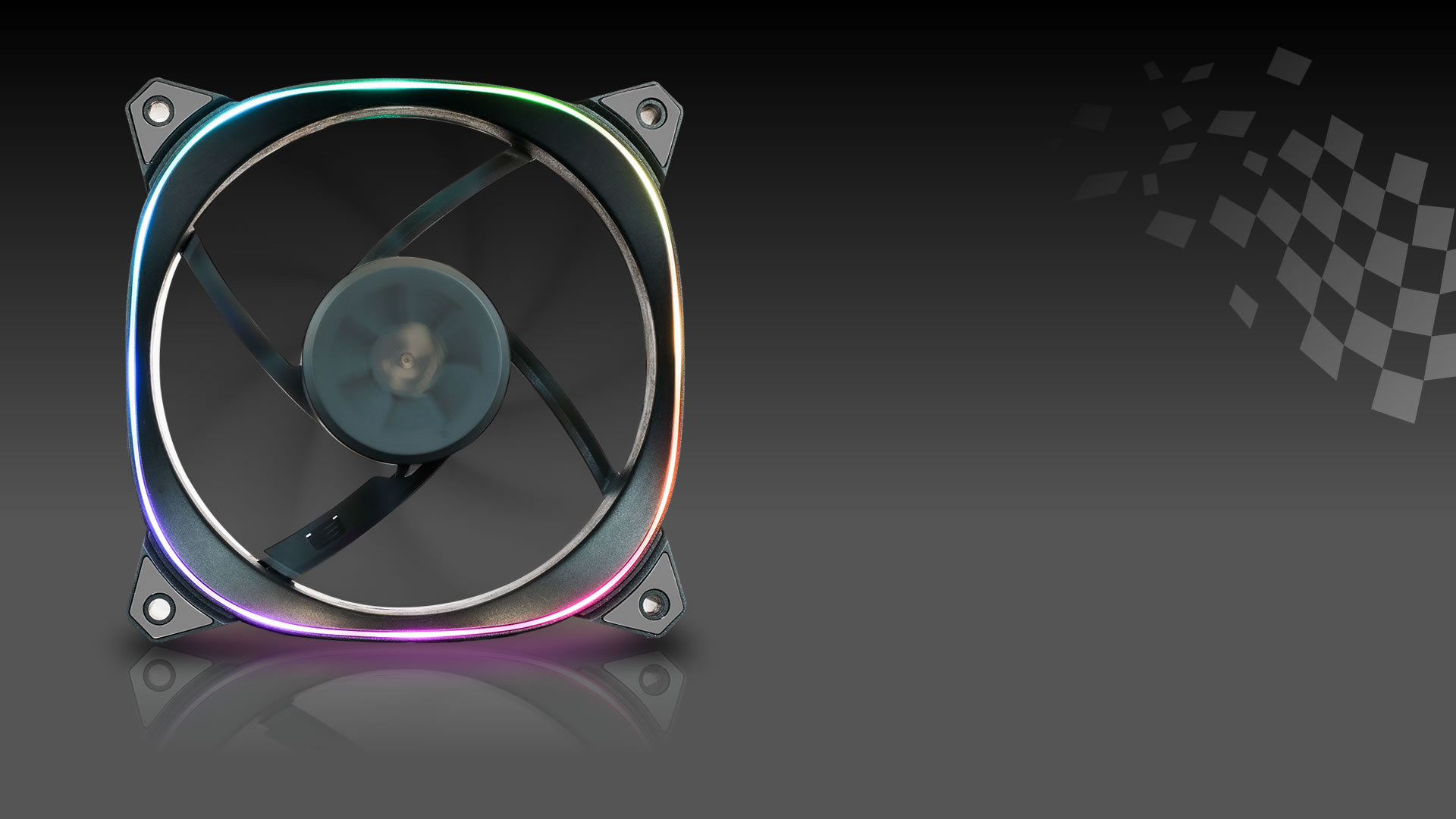

Distinct Squoval Frame Design Traced with ARGB Lighting

The fan's architecture embraces and integrates a unique geometric shape. Coupled with a solid touch of ARGB lighting on both sides of the frame, commanding absolute attention!

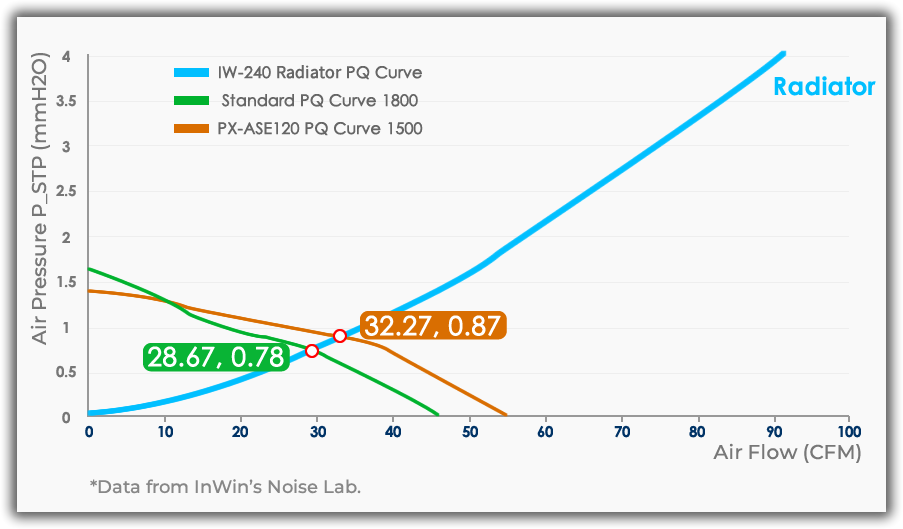

Optimized PQ Curve for Better Performance

The fan performs its best PQ curve at 1500rpm and can reach up to 54 CFM with a stronger airflow rate compared to other standard fans.

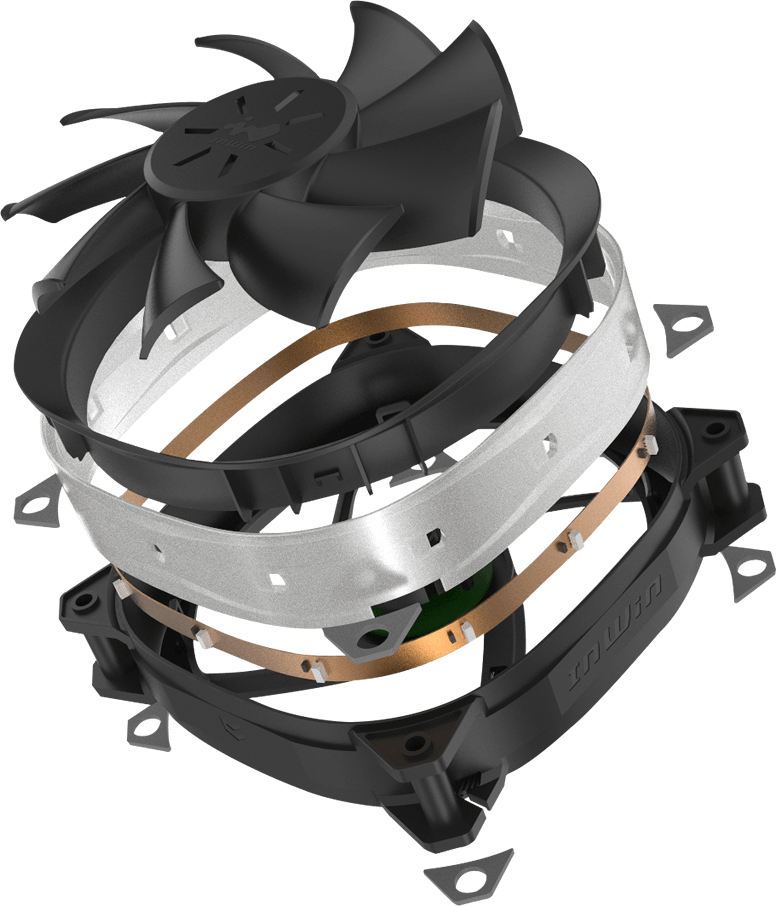

Structural Upgrades Generate Extreme Airflow!

Sirius Extreme's structure has been strenuously tested to provide optimal air pressure, preventing your PC from overheating.

14 Lighting Modes with Easy Cable Connections

You have two options to set up your ARGB lighting: 1) Use the provided ARGB One-Click Controller, which possesses 14 luminescent lighting modes. 2) Connect the fans directly to a 3-pin, 5V ARGB header on an ARGB motherboard. The choice is yours!

*The ARGB One-Click Controller is provided when you purchase the triple pack of ASE120. If a single pack is purchased, you can still control the lighting effect by connecting to an ARGB motherboard directly.

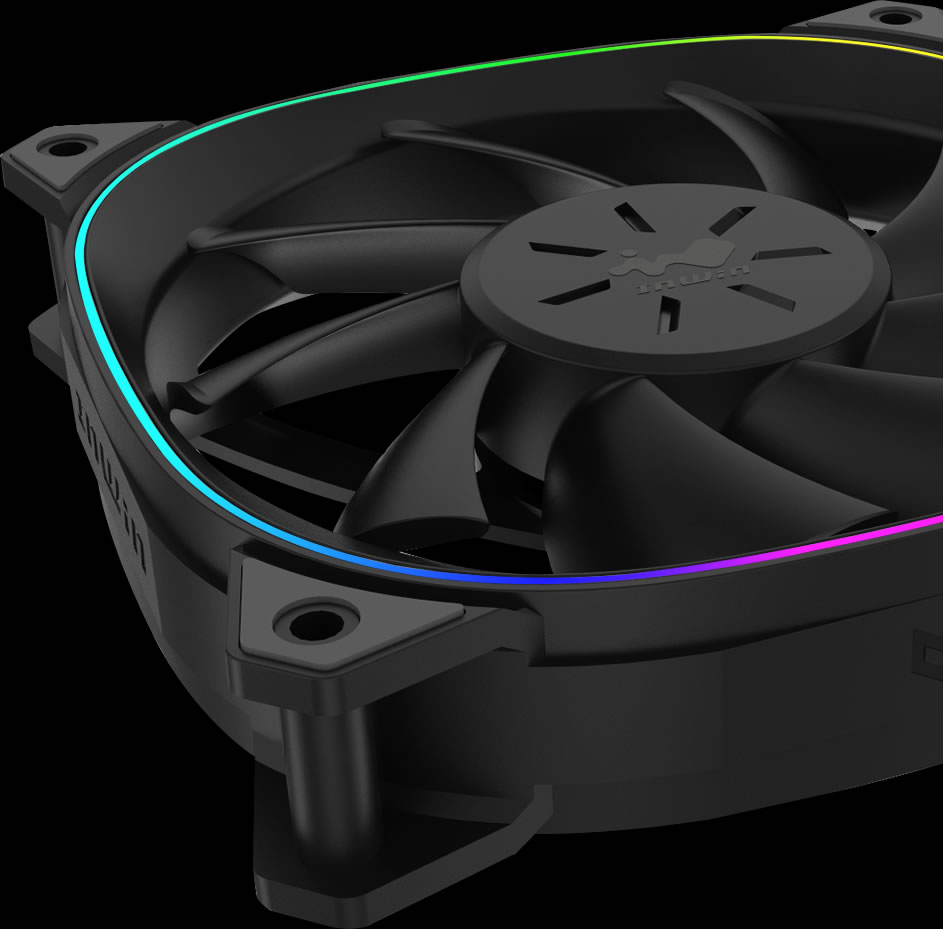

Intricate Detailing to Meet Your Standards

Sensible frame tactically angled, sickle-shaped blades deliberately designed to push more air, while the ventilation holes are designed to create an extra source of cooling to the fan internals.

Fast Lane Cooling!

Sirius Extreme is inspired by Esport gaming enthusiasts that can envision their gaming rig and case fans with the vibes and intensity of car racing!

Cable Information

Single Pack Cable Information

PWM Fan Cable

600mm+100mm

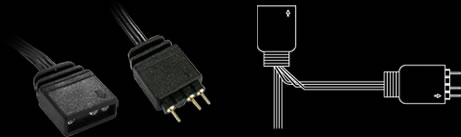

Addressable RGB Cable

500mm+100mm

Triple Pack Cable Information

PWM Fan Cable

600mm+100mm

Addressable RGB Cable

500mm+100mm

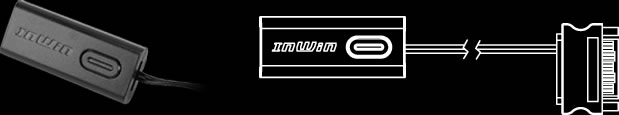

Addressable RGB One-Click Controller

272mm

Specifications

Model Sirius Extreme ASE120

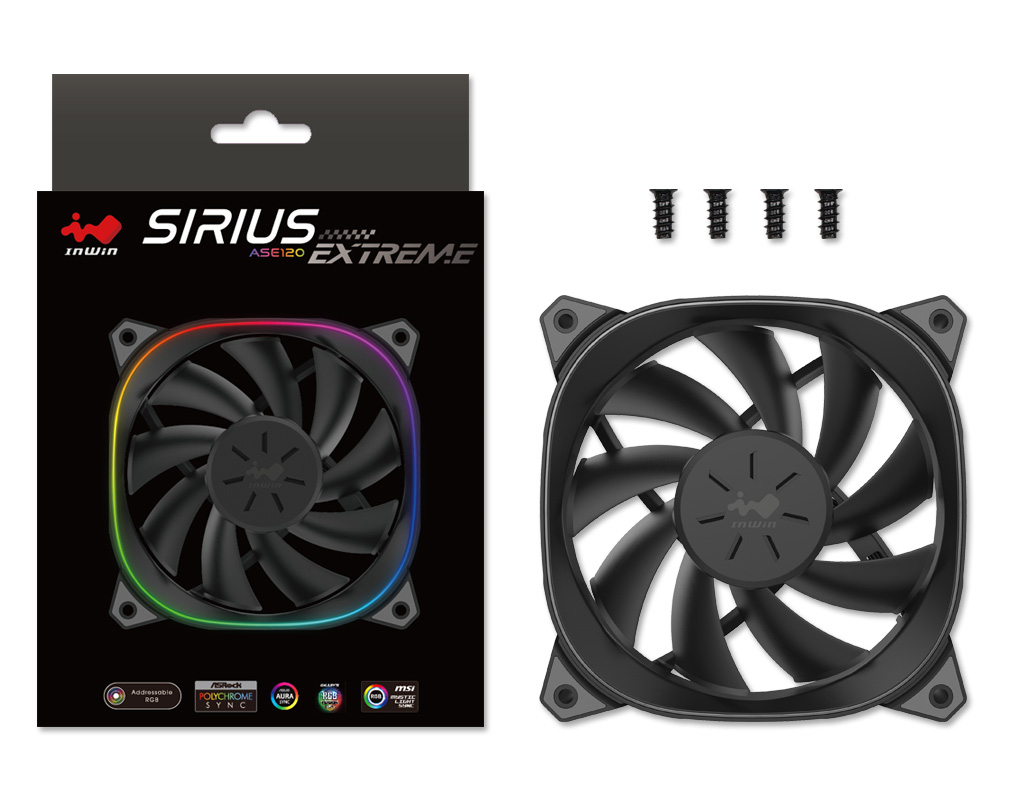

Quantity Included Single Pack Triple Pack
Model Number IW-FN-ASE120-1PK IW-FN-ASE120-3PK
Colors Black
Fan Size 120 x 120 x 25 mm
Materials PC, PBT
Rated Voltage DC 12V
Rated Power 1.56W
Rated Current 0.13A
ADD RGB Rated Voltage DC 5V
ADD RGB Rated Power  1.5W
ADD RGB Rated Current 0.30A
Speed Mode PWM 400 - 1500 +/- 10% RPM
Air Flow 54 CFM
Air Pressure 1.55 mm / H2O
LED ARGB
Connector (Fan to Fan) Non-Modular Cables
Connector to M/B 4 Pin (PWM, 12V), 3 Pin  (ARGB, 5V)
Noise Level 25 dB(A) (Max.) / 21 dB(A) (Normal)
Bearing Type Long Lifespan Sleeve Bearing
Net Weight 200 g 600 g
Package Dimensions
(L x W x H)
125 x 185 x 30 mm 125 x 185 x 80 mm
Warranty 2 Years
* InWin's products comply with RoHS regulation.
* Specifications may vary based on different regions.

Download

Video

eStore

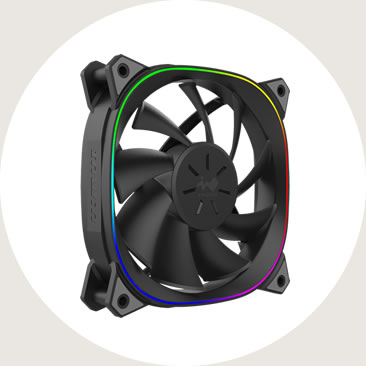

Sirius Extreme ASE120 is on InWin Official eStore Now!
