515

Minimalistic Materials

The 515 features a crisscrossed combination of steel and tempered glass, with a functional mesh design. Complemented with a neatly cut InWin aluminium logo to add a touch of character to your system.

Quick-Release Side Panel Removal Button

Use this convenient and screwless, quick-release design to remove the lower side of the panel by simply pressing one button! You can also use this feature as a locker. Keep hardware safe.

Magnetic Side Panel for Faster Placement

Convenient place and retrieval of the top side panel, easy for anyone to execute. With the help of two index fingers and a simple flipping motion, you’ll have the side panel down in no time!

Note: The bottom side panel should be opened first before you flip the top half.

Versatile GPU Anti-Sag Support

InWin has found a solution and developed a versatile graphics card holder design to keep your GPU from sagging and protect your system!

Side Panels and Mesh Designs

The tinted window side panel offers an inner chassis view to showcase your components. A side mesh panel is provided so that considerable air flows into the system.

Versatile Cooling Options

The 515 has two mesh panels and honeycomb vents. This case can accommodate up to a maximum of nine fans in total, radiators up to 360mm or 240mm.

Meticulous Detailing and Highly Expandable

The 515 supports full E-ATX, including 2.5” and 3.5” drive bays, a space for a VGA card length up to 385mm and a dust filter, all designed to bring the best out of your build.

USB 3.2 Gen 2x2
20Gbps
USB 3.2 Gen 2
10Gbps
USB 3.2 Gen 1
5Gbps

*The actual data transfer speed will be determined by your motherboard specification.

Speedy USB 3.2 Gen 2 x 2

Built for super speed! Front USB 3.2 Gen 2 x 2 Type-C is equipped and ready for easy fast charging speeds and outstanding data transfer rates.

ARGB PWM fan Luna AL120

Equipped with stunning and bright Luna AL120, presenting your build in the most beautiful light possible.

Learn More

Specifications

Model 515
Model Number IW-CS-515BLK-1AL120
Colors Black
Case Type Mid Tower
Materials SECC, ABS, Tempered Glass
M/B Compatibility 12" x 13" E-ATX, ATX, Micro-ATX, Mini-ITX
Expansion Slots 7 x PCI-E
Maximum Compatibility VGA Card Length: 385 mm
CPU Heatsink Height: 160 mm
I/O Ports 1 x USB 3.2 Gen 2x2 Type-C
2 x USB 3.2 Gen 1
HD Audio Combo+Mic
Internal Drive Bays 2 x 3.5" / 2.5"
2 x 2.5"
Thermal Solution Compatibility Air Cooling Fans:
Top: 3 x 120 mm
Rear: 1 x 120 mm
Front: 2 x 120 mm
Bottom: 3 x 120 mm
(1 InWin Luna AL120 Fan Included)

Water Cooling Radiator:
Top: 1 x 360 mm (Maxi. Length 405mm & Thickness 80mm)
Rear: 1 x 120 mm
Front: 1 x 240 mm
Bottom: 1 x 360 mm (Slim) (Remove Graphic Cards Holder)
* Number of fans pre-installed may vary based on different regions
Power Supply Compatibility PSII: ATX12V
- Length up to 200 mm

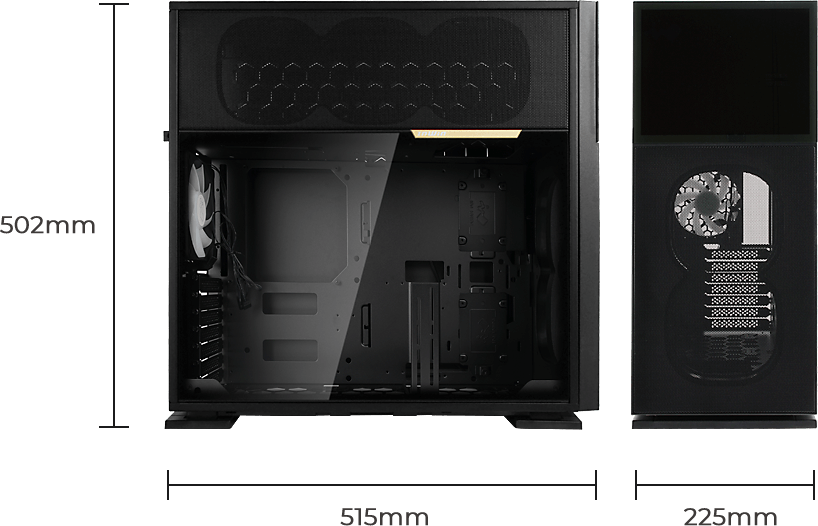

Product Dimensions
(L x W x H)
515 x 225 x 502 mm
20.3 x 8.8 x 19.7"
Package Dimensions
(L x W x H)
610 x 335 x 572 mm
24 x 13.1 x 22.5"
Net Weight 11.38 kg / 25.09 lb
Gross Weight 13.46 kg / 26.67 lb
* InWin products comply with RoHS regulation.
* Specifications may vary based on different regions.
