InWin 805 ∞ Infinity

Gaze Into the Abyss

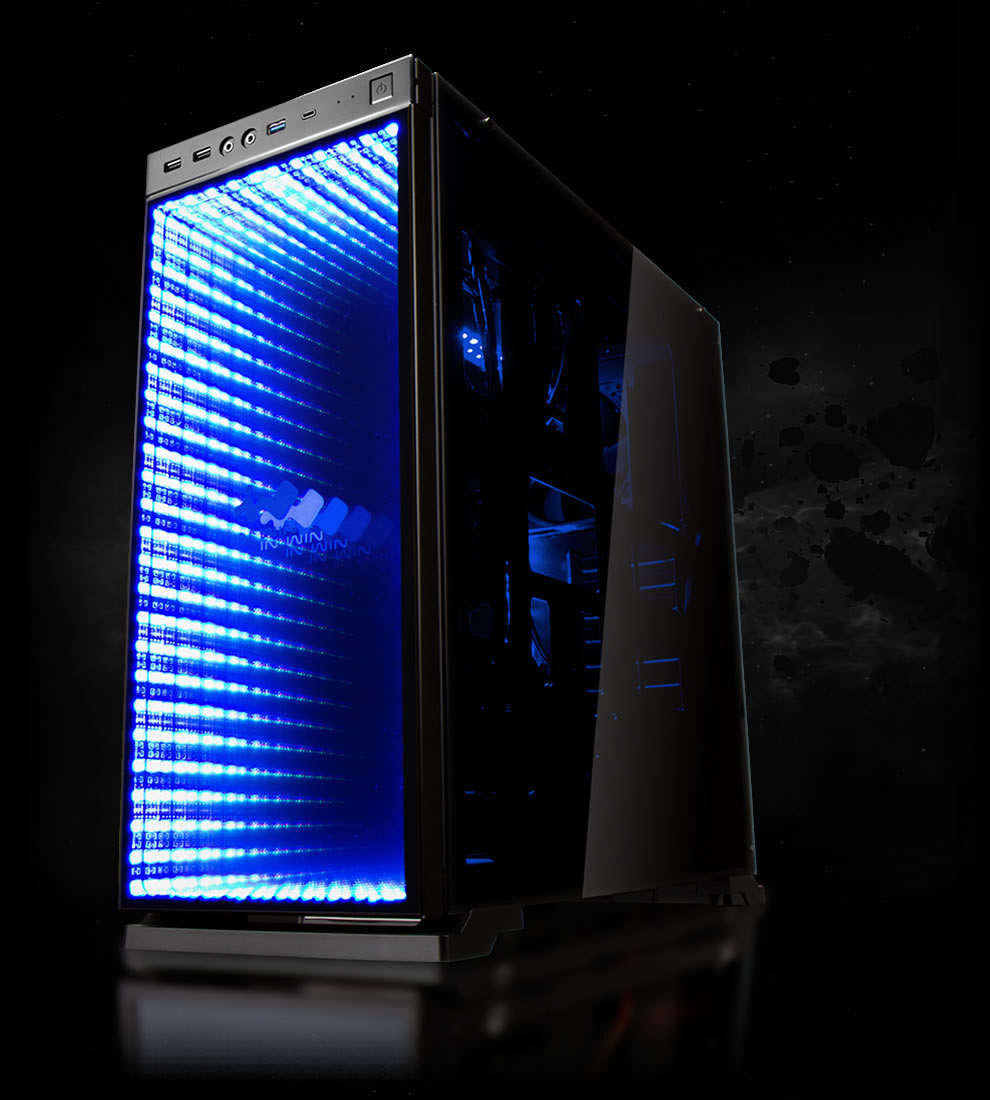

The 805 Infinity’s front panel possesses an LED lighting effect using LED strips and a mirror. The reflection is an illusion that displays endless rows of LED lights fading into the darkness; this effect is referred to as the “Infinity Mirror.“ The 805 Infinity provides users with a luminous visual experience.

IN WIN Classic Brushed-Hairline Aluminium Casing

AURA READY

The 805 Infinity is most compatible with the onboard 4-pin RGB header(s) found on many ASUS/ROG motherboards.The AURA software will be able to control the 805 Infinity lighting effect.

HALO Option

If you own a different motherboard, you are still able to adjust the lighting effects by downloading the In Win software driver “HALO” from our 805 Infinity webpage.

Download "HALO" Driver HALO demonstration

ROG Certified

The 805 Infinity received the prestigious ROG certification. Users are guaranteed to have a quality product, that has the design consistency and reliability of an ROG certified product.

Learn more at: http://rog.asus.com/rog-certified-products/

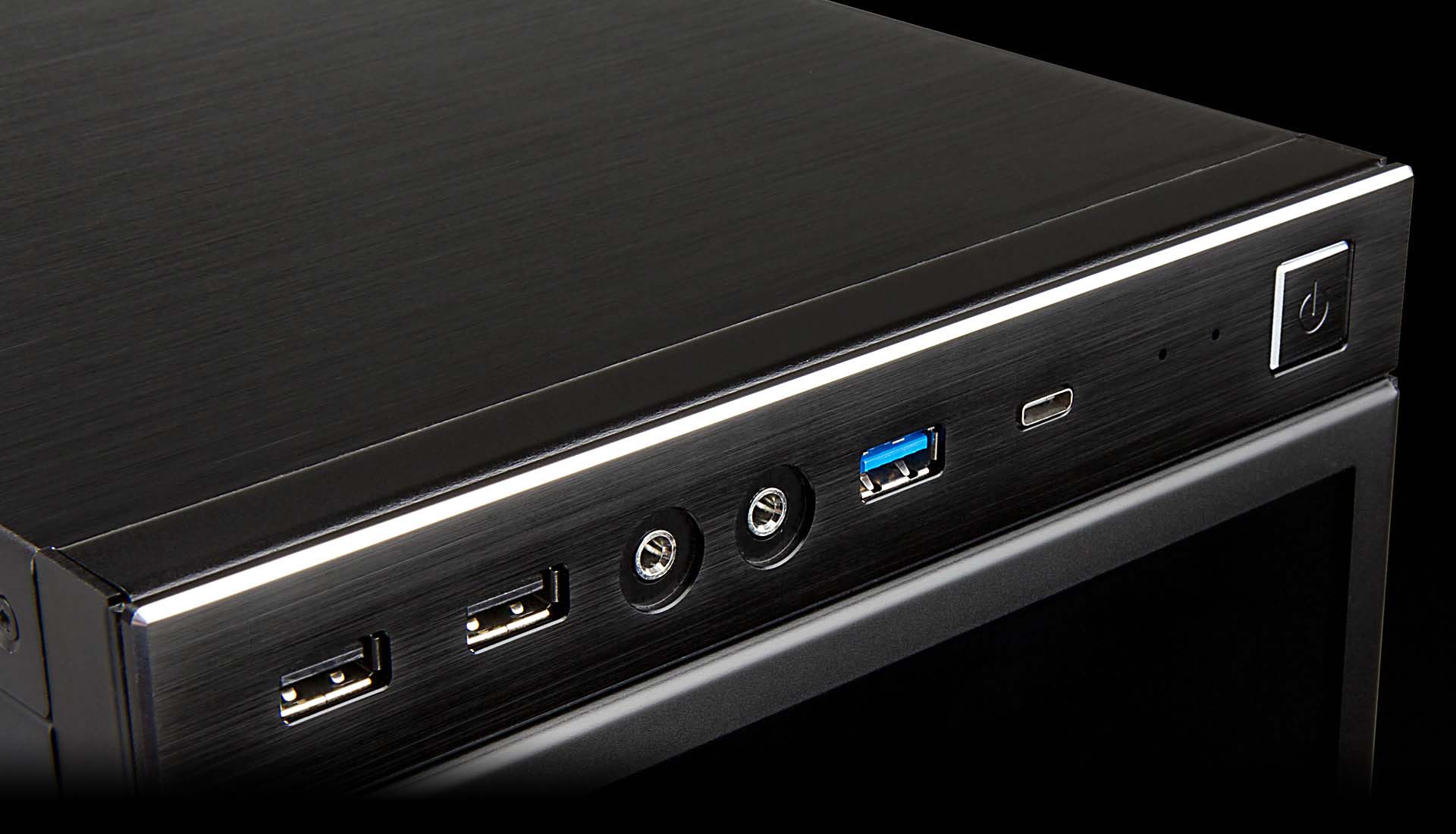

High Quality Aluminium Material

The elegant and sleek 805 is constructed with high quality aluminium with anodized stylish hairline on the top and front I/O panels.

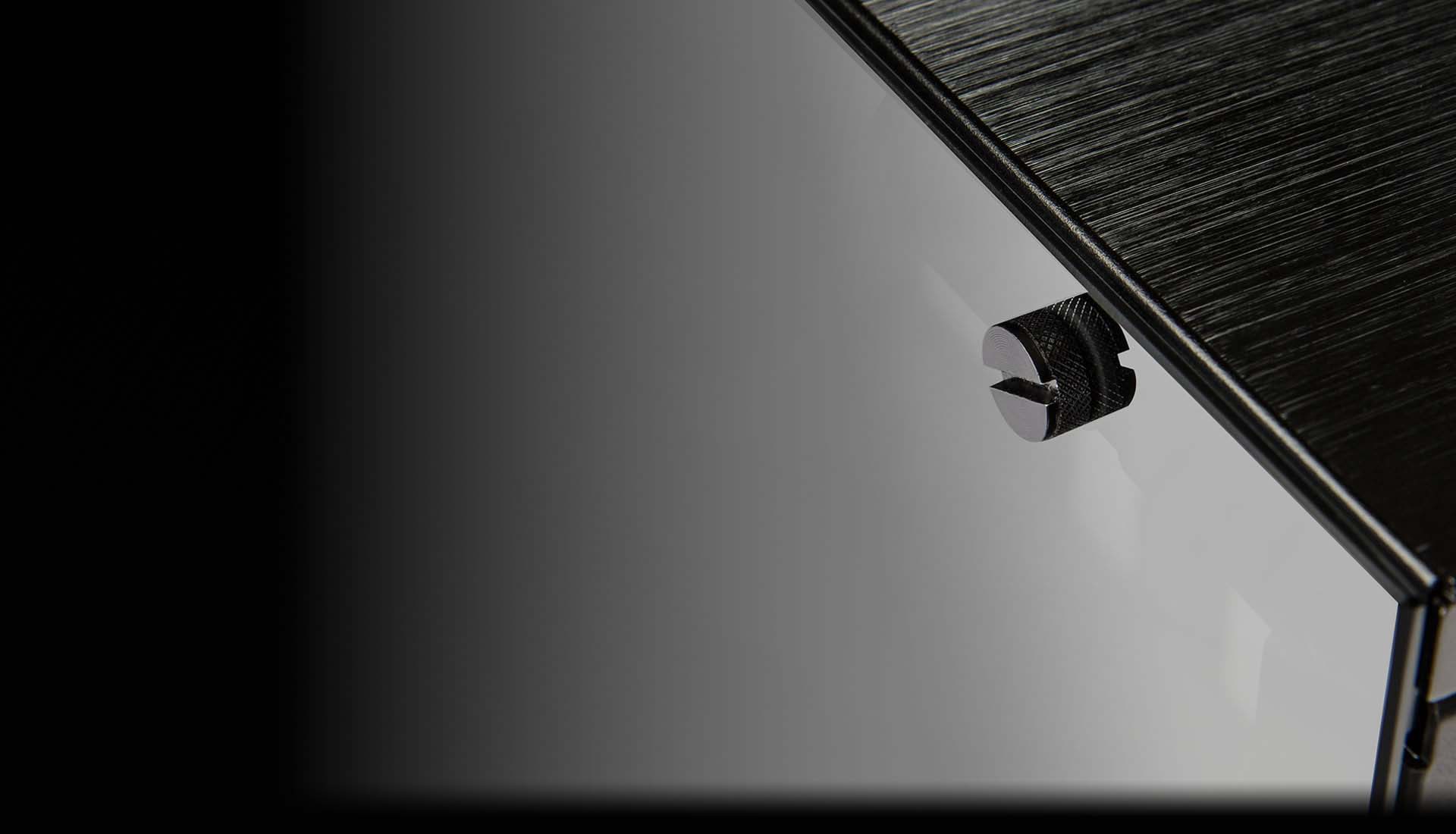

Tempered Glass Panels

Both sides and front panels of 805 are finished with 3mm tempered glass which offers not only great protection, but also lets you to enjoy and show your build with others.

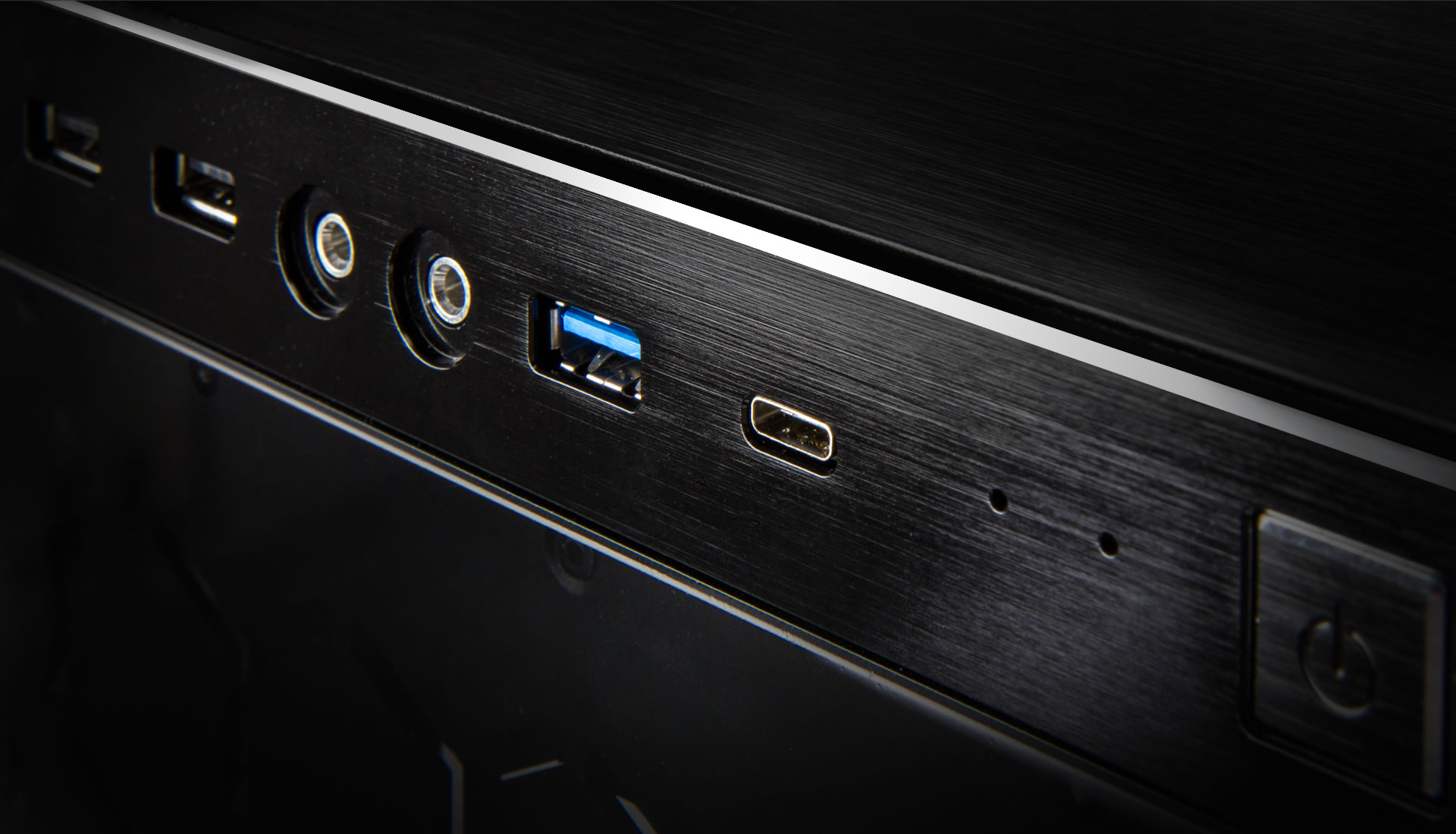

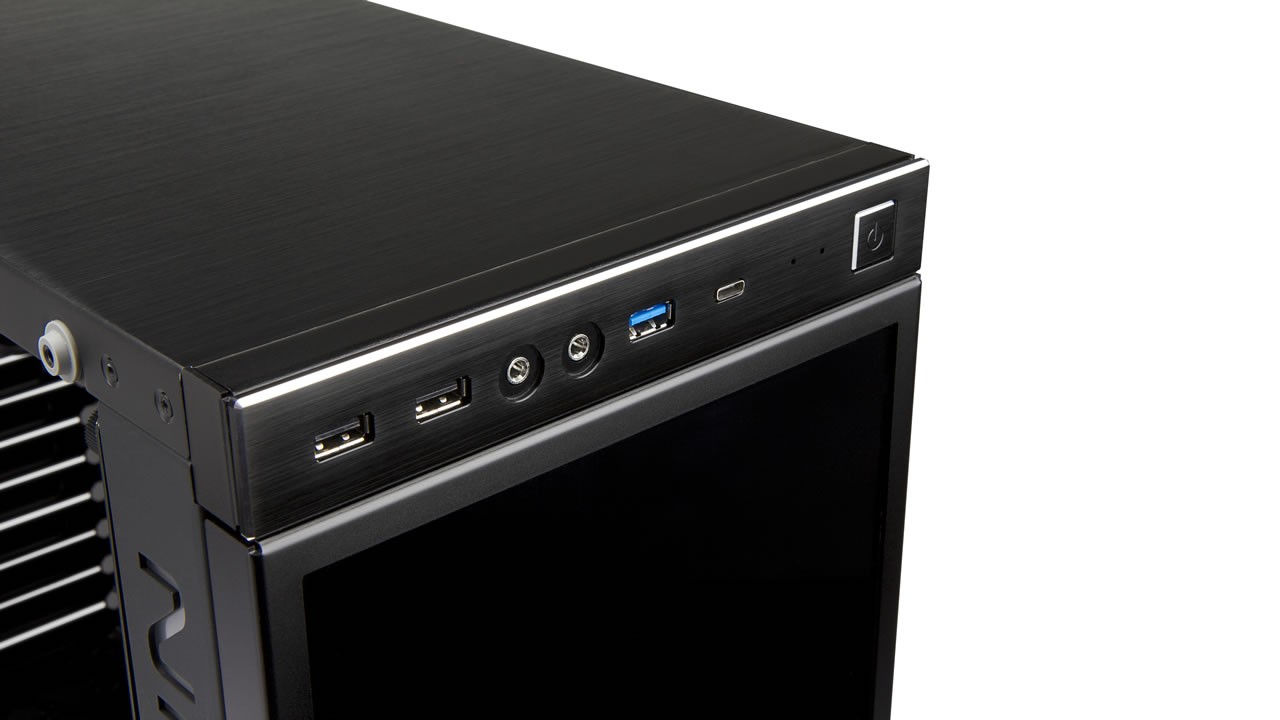

Super Speed Transmission
USB 3.1 Type-C

2X FASTER

5Gb/s

USB 3.0

10Gb/s

USB 3.1

* The actual data transfer speed will be determined by your motherboard specification.

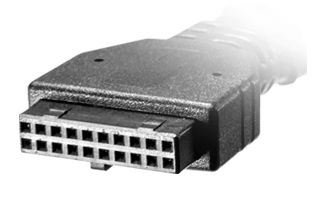

19-Pin
Connector

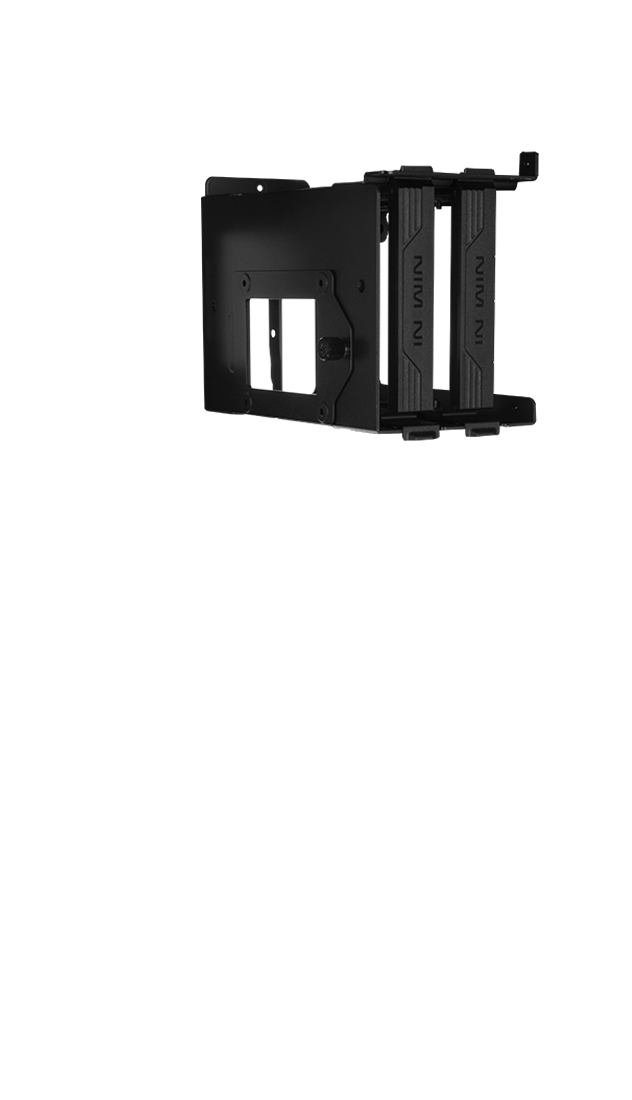

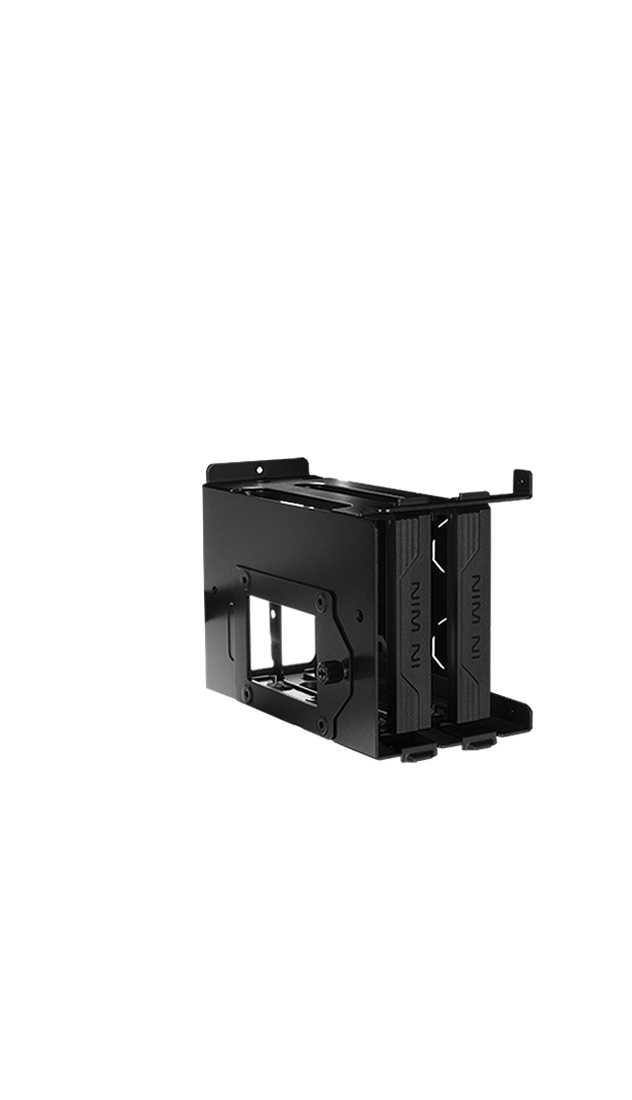

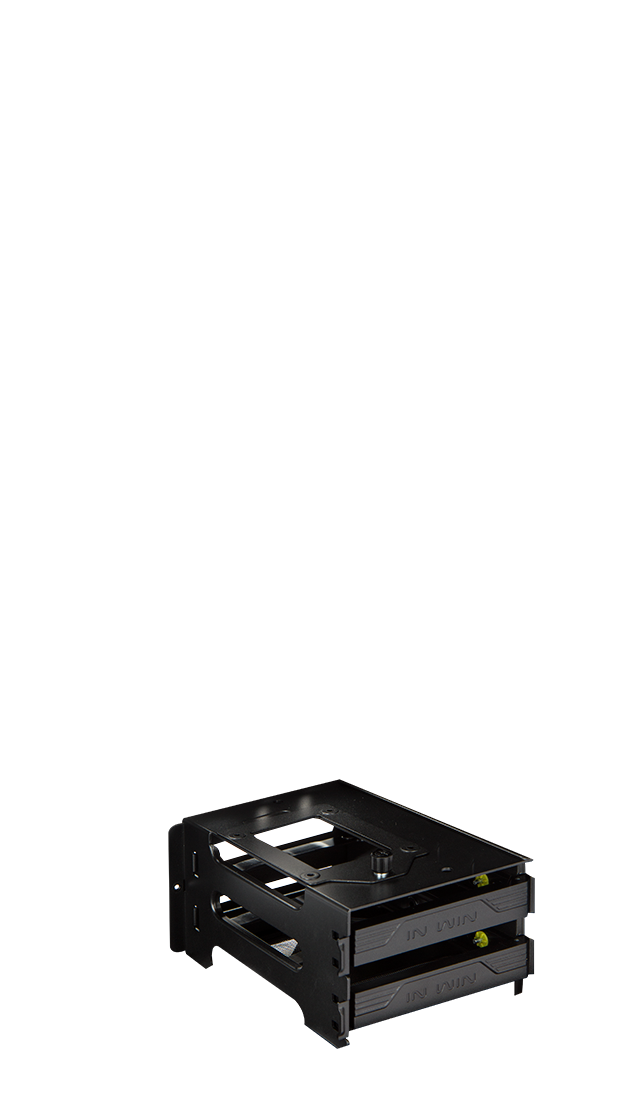

Versatile HDD Mounting Position for Optimized Functionality

Two optional fans can be mounted at the bottom by moving HDD trays to the front to enhance airflow and achieve maximum heat dissipation.

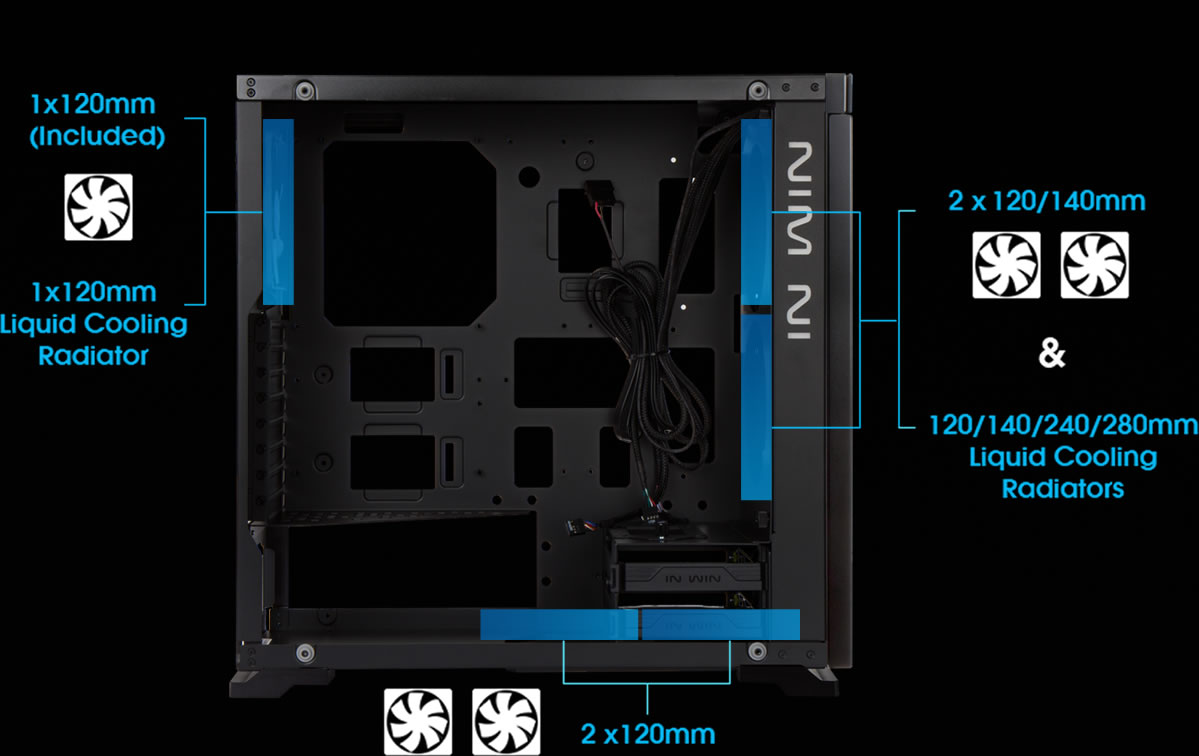

Excellent Liquid Cooling Support for Better Airflow

Overall the 805 can accommodate two radiators (front and rear) to create the ultimate liquid cooling system for best cooling performance, thermal solutions and quick heat dissipation.

Specifications

Model	805	805 Infinity
Color	Black, Red, Gold	Black
Case Type	Mid Tower
Material	Aluminium, Tempered Glass
M/B Compatibility	ATX, Micro-ATX, Mini-ITX
Expansion Slots	PCI-E X 8
Maximum Compatibility	VGA Card Length:320mm CPU Heatsink Height :156mm
Front Ports	2 x USB 2.0 1 x USB 3.0 1 x USB 3.1 Type-C HD Audio
External Drive Bays	N/A
Internal Drive Bays	2 x 2.5”/ 3.5" 4 x 2.5"
Thermal Solution Compatibility	2 x 120/140mm Front Fan / 280mm Radiator 1 x 120mm Rear Fan (Pre-installed) / 120mm Radiator 2 x 120mm Bottom Fan
Power Supply Compatibility	PSII: ATX12V and EPS 12V - Length up to 220mm
Product Dimension (H x W x D)	455 x 205 x 458mm 17.9”x 8.1” x 18.1”	455 x 205 x 474mm 17.9”x 8.1” x 18.7”
Product Dimension (H x W x D) with screw height	476 x 222 x 467mm 18.7”x 8.7” x 18.4”	476 x 222 x 477mm 18.7”x 8.7” x 18.8”
Package Dimension (H x W x D)	315 x 570 x 620mm 12.4” x 22.4” x 24.4”
Net Weight	6.85kg/15.1lb	8.22kg/18.1lb
Gross Weight	9.15kg/20.2lb	10.9kg/24lb
* InWin products comply with RoHS regulation. * Specifications may vary based on different regions.
