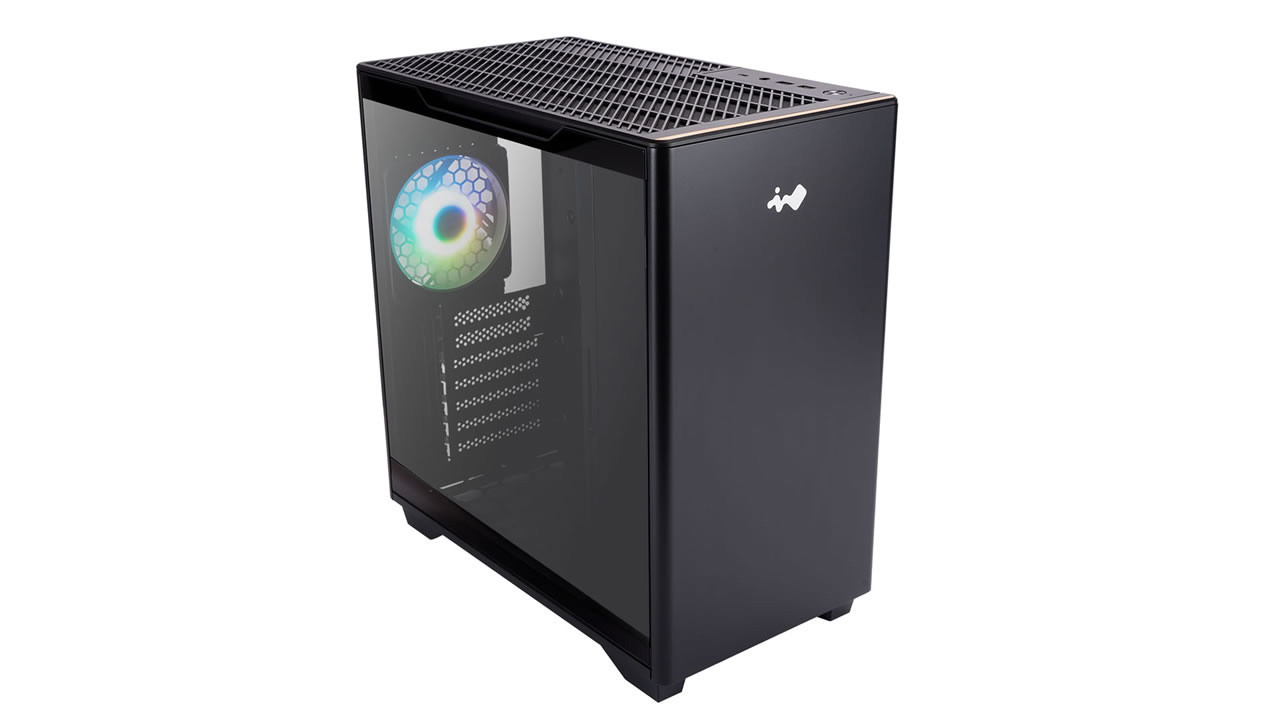

A5

Minimalistic Approach to PC Aesthetics

The tinted tempered glass side panel complements the A5’s overall modern vibe. The front panel is pristinely clean and is embellished with a golden sheet.

Compact E-ATX Enclosure

The A5 is a compact case that does not occupy much space and yet makes the most of its modest dimensions. It’s smaller than most mid towers, but allows PC builders to assemble a powerful rig!

37% smaller by volume than a standard mid tower

Stuff It With Hardware!

This mid tower can support up to E-ATX system builds while accommodating high-end graphics cards and power supply.

* PSUs longer than 170 mm will need to build with GPUs 280 mm or shorter.

The A5 supports multiple 2.5” / 3.5” storage devices. The case offers strategically placed channels behind the motherboard tray for clean and easy cable management.

Vertical Airflow Layout

Since heat rises, the A5’s internal layout works in accordance to this fact. The top and bottom feature ventilated filter panels to combat dust and heat. With the PSU secured at the front, air can naturally propel upwards in the main chamber.

Don’t Screw Yourself! Go Screwless!

The toolless tinted tempered glass side panel offers a refreshing view of the internal hardware! Meanwhile, the top panel, steel side panel, and bottom filter are screwless too for easy access and cleaning.

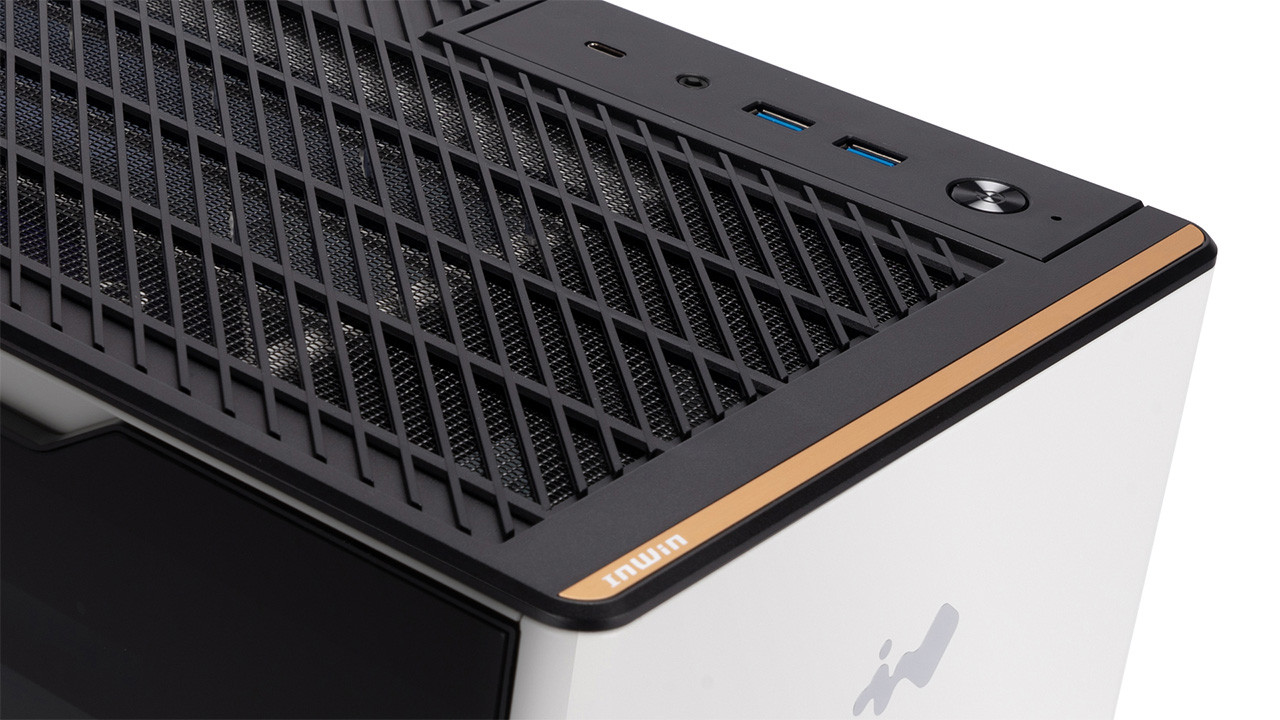

Know I/O?

The A5 features one USB 3.2 Gen 2x2 Type-C port, two USB 3.2 Gen 1 Type-A ports for fast charging speeds and outstanding data transfer rates and a headset audio jack utilizing the international CTIA standard.

USB 3.2 Gen 2x2
20 Gpbs
USB 3.2 Gen 2
10 Gpbs
USB 3.2 Gen 1
5 Gpbs

*The transfer speeds may vary depending on hardware configuration.

Slim Silent Cooling Fan Mercury AM120S

Pre-installed silent ARGB fan AM120S provides powerful cooling performance within a slim 20 mm frame.
Learn More

Specifications

Model A5
Model Number IW-CS-A5BLK-1AM120S
IW-CS-A5WHI-1AM120S
Colors Black, White
Case Type Mid Tower
Materials SECC, Tempered Glass, PC-ABS
M/B Compatibility 12" x 11" E-ATX, ATX, Micro-ATX, Mini-ITX
Expansion Slots 7 x PCI-E
Maximum Compatibility GPU Length: 340 mm
CPU Heatsink Height: 162 mm
I/O Ports 1 x USB 3.2 Gen 2x2 Type-C
2 x USB 3.2 Gen 1
HD Audio Combo (CTIA – SPK/Mic)
Internal Drive Bays 2 x 3.5" / 2.5"
2 x 2.5"
Thermal Solution Compatibility Air Cooling Fans:
Top: 2 x 120 mm
Rear: 1 x 120 mm
Bottom: 2 x 120 mm
(1 InWin Mercury AM120S Fan Included)

Water Cooling Radiator:
Top: 1 x 240 mm
Power Supply Compatibility PSII: ATX12V
- Length between 140 - 200 mm
(PSUs longer than 170 mm will need to build with GPUs 280 mm or shorter)
Product Dimensions
(L x W x H)
399 x 215 x 407 mm
15.7 x 8.5 x 16"
Package Dimensions
(L x W x H)
473 x 277 x 483 mm
18.6 x 10.9 x 19"
Net Weight 5.86 kg / 12.92 lbs
Gross Weight 6.94 kg / 15.30 lbs
* InWin's products comply with RoHS regulation.
* Specifications may vary based on different regions.
