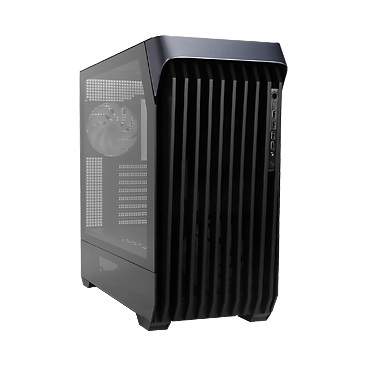

Designed for modern AI and HPC environments, COVALENT delivers an industrial grade foundation built around precision engineering and thermal efficiency. Its full tower structure offers a choice of steel or tempered glass side panels, giving builders the option to prioritize durability or visual presentation. A spacious, purpose designed interior supports advanced cooling layouts and clean component organization, creating a chassis that balances professional function with an elevated workstation aesthetic.
Engineered to support pro-grade hardware, COVALENT accommodates EEB 12" x 13" motherboards, providing the layout necessary for high-core CPUs, large memory capacity, and bandwidth-intensive computing, offering clearance for oversized GPUs, expanded storage, and advanced cooling systems.
Built to meet the demands of accelerated computing, COVALENT supports high-end and professional GPUs tailored for AI training, inference, and HPC workloads. The reinforced 8-slot PCIe expansion layout provides structural stability for heavy, full length graphics cards, ensuring reliable performance in multi-GPU configurations. A directed airflow path maintains consistent thermal performance under sustained processing demands.
COVALENT supports an optional GPU holder bracket to provide additional reinforcement for heavier graphics cards.
* GPU holder bracket not included. Availability may vary by region.
COVALENT is engineered for high-performance cooling, supporting dual 420 mm radiators for extensive liquid-cooling configurations. Its high-capacity intake and exhaust pathways maintain steady airflow, ensuring stable thermals during long-duration computing workloads.
* Pre-installed CV140 Fans: 3 x Front, 1 x Rear
Learn More
| Model | CV140 |
|---|---|
| Colors | Black |
| Fan Size | 140 x 140 x 26 mm |
| Materials | PBT, PC |
| Rated Voltage | DC 12V |
| Rated Power | 3W |
| Rated Current | 0.25A |
| ARGB Rated Voltage | DC 5V |
| ARGB Rated Power | 1.65W |
| ARGB Rated Current | 0.33A |
| Speed Mode | PWM 600 - 1200 RPM |
| Air Flow | 62.95 CFM |
| Air Pressure | 1.2 mm / H2O |
| LED | Addressable RGB |
| Connector to M/B | 4-Pin (12V, PWM), 3-Pin (5V, ARGB) |
| Noise Level | 24.4 dB(A) |
| Bearing Type | Hydraulic Bearing |
| * InWin's products comply with RoHS regulations. * Specifications may vary based on different regions. |
|
As a full-tower platform, COVALENT delivers the expansive interior needed for professional-grade workstation builds. Its EEB motherboard compatibility and versatile storage layout provides generous room for high-end components, cable routing, and workflow-specific configurations. The thermal architecture accommodates dual 420 mm radiators or up to 13 fans for reliable long-term operation.
* Compatible with ASUS BTF, MSI Project Zero, and Gigabyte Project Stealth.
| Model | COVALENT | ||
|---|---|---|---|
| Model Number | IW-CS-COVALENT-TG-4CV140 | IW-CS-COVALENT-SP-4CV140 | |
| Color | Black | ||
| Case Type | Full Tower | ||
| Materials | SPCC, Tempered Glass, Aluminium, ABS | SPCC, SECC, Aluminium, ABS | |
| M/B Compatibility | EEB, 12" x 13" (305 x 330 mm) E-ATX, ATX, Micro-ATX, Mini-ITX | ||
| Expansion Slots | 8 x PCIe | ||
| Maximum Compatibility | GPU Length: 480 mm CPU Heatsink Height: 190 mm |
||
| I/O Ports | 1 x USB 3.2 Gen 2x2 Type-C 2 x USB 3.2 Gen 1 2 x USB 2.0 HD Audio (CTIA - SPK/MIC) Power Button LED Lighting Control Switch |
||
| Internal Drive Bays | 1 x 3.5" / 2 x 2.5" 4 x 3.5" / 2 x 2.5" |
||
| Thermal Solution Compatibility | Air Cooling Fans: Front: 3 x 120 / 140 mm (CV140 fan included) Top: 3 x 120 / 140 mm Rear: 1 x 120 / 140 mm (CV140 fan included) Bottom: 3 x 120 / 140 mm Side: 3 x 120 / 140 mm Water Cooling Radiator: Top: 1 x 360 / 420 mm Rear: 1 x 120 / 140 mm Side: 1 x 360 / 420 mm |
||
| Power Supply Compatibility | PSII : ATX12V - Length up to 250 mm |
||
| Product Dimensions (L x W x H) |
606 x 250 x 536 mm 23.9 x 9.8 x 21.1" |
||
| Package Dimensions (L x W x H) |
692 x 353 x 626 mm 27.2 x 13.9 x 24.6" |
||
| Net Weight | 14.3 kg / 31.5 lb | 13.9 kg / 30.6 lb | |
| Gross Weight | 16.5 kg / 36.4 lb | 16.1 kg / 35.5 lb | |
| * InWin's products comply with RoHS regulation. * Specifications may vary based on different regions. |
|||
