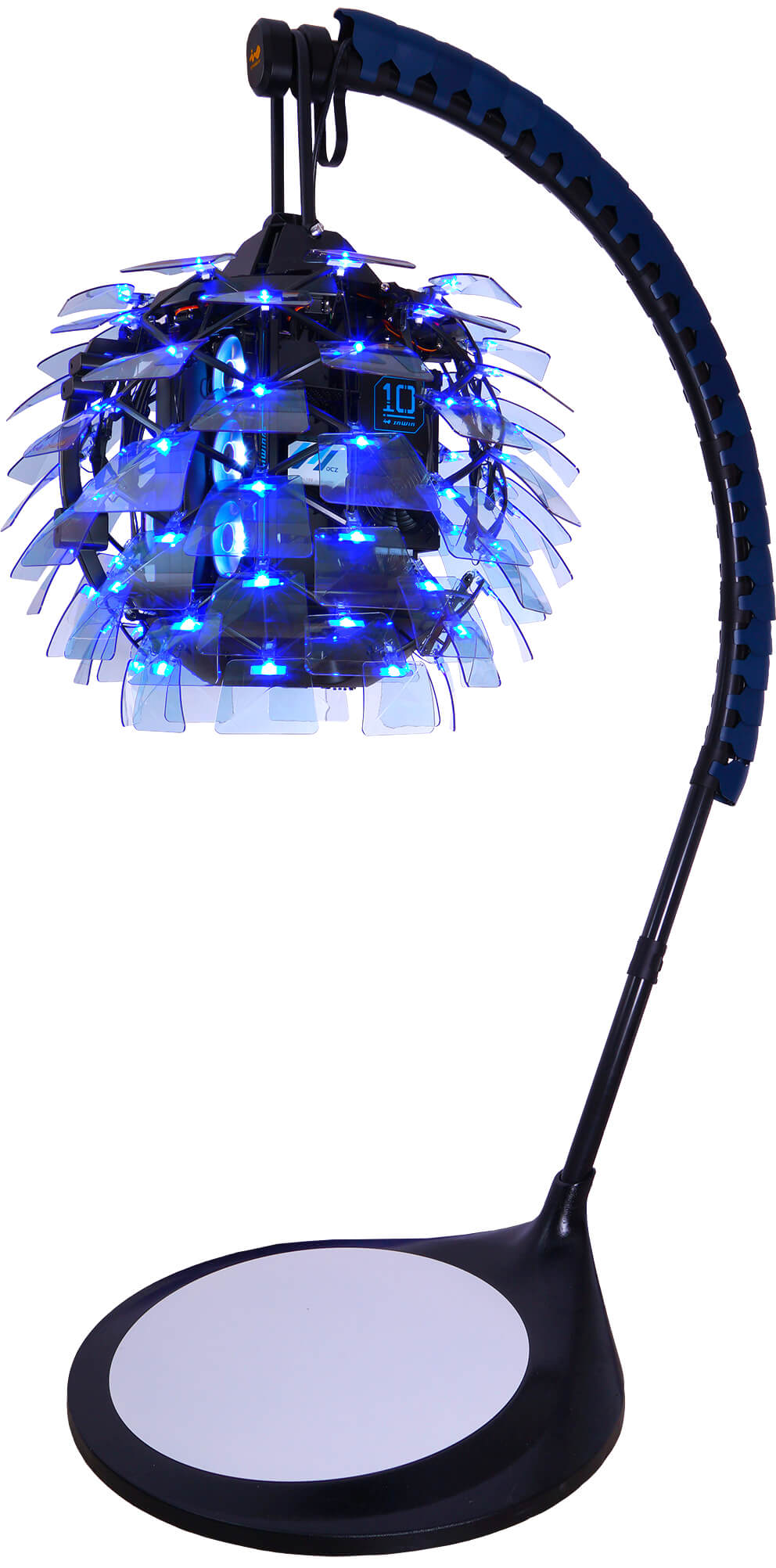

| Model | Diéy | |
|---|---|---|
| Model Number | IW-CS-DIEY | |
| Colors | Water Blue | |
| Case Type | Full Tower | |
| Materials | Aluminium, SECC, Plexiglass | |
| M/B Compatibility | 12" x 13" E-ATX, ATX, Micro-ATX | |
| Expansion Slots | PCI-E x 8 | |
| Maximum Compatibility | Graphics Card Length: 360mm Maximum (GPUs with unique designs may prevent installation) CPU Heatsink Height: 170mm (CPU Die Surface to Side Panel) |
|
| Front Ports | 1 x USB 3.1 Gen 2 Type-C 2 x USB 3.0 HD Audio |
|
| Internal Drive Bays | 4 x 3.5" / 2.5" | |
| Thermal Solution Compatibility | 1 x 120mm Left Side Fan / 120mm Radiator 3 x 120mm Right Side Fan / 360mm Radiator Side: 50mm Maximum Height including Fans (Radiators with unique designs may prevent installation) |
|
| Power Supply Compatibility | ATX12V and EPS12V | |
| Product Dimensions (H x W x D) |
800 x 960 x 960mm - 800 x 1300 x 1300mm 31.5" x 37.8" x 37.8" - 31.5" x 51.2" x 51.2" (The product dimensions vary depending on wing placement.) |
|
| Product Dimensions (H x W x D) with Hanging Bracket |
2300 x 1000 x 1500mm 90.6" x 39.4" x 59.1" |
|
| Package Dimensions (H x W x D) |
1190 x 1000 x 1000mm 46.9" x 39.4" x 39.4" |
|
| * Our products comply with RoHS regulations * Specifications may vary based on different regions * Extra fees will apply for optional parts. |
||
