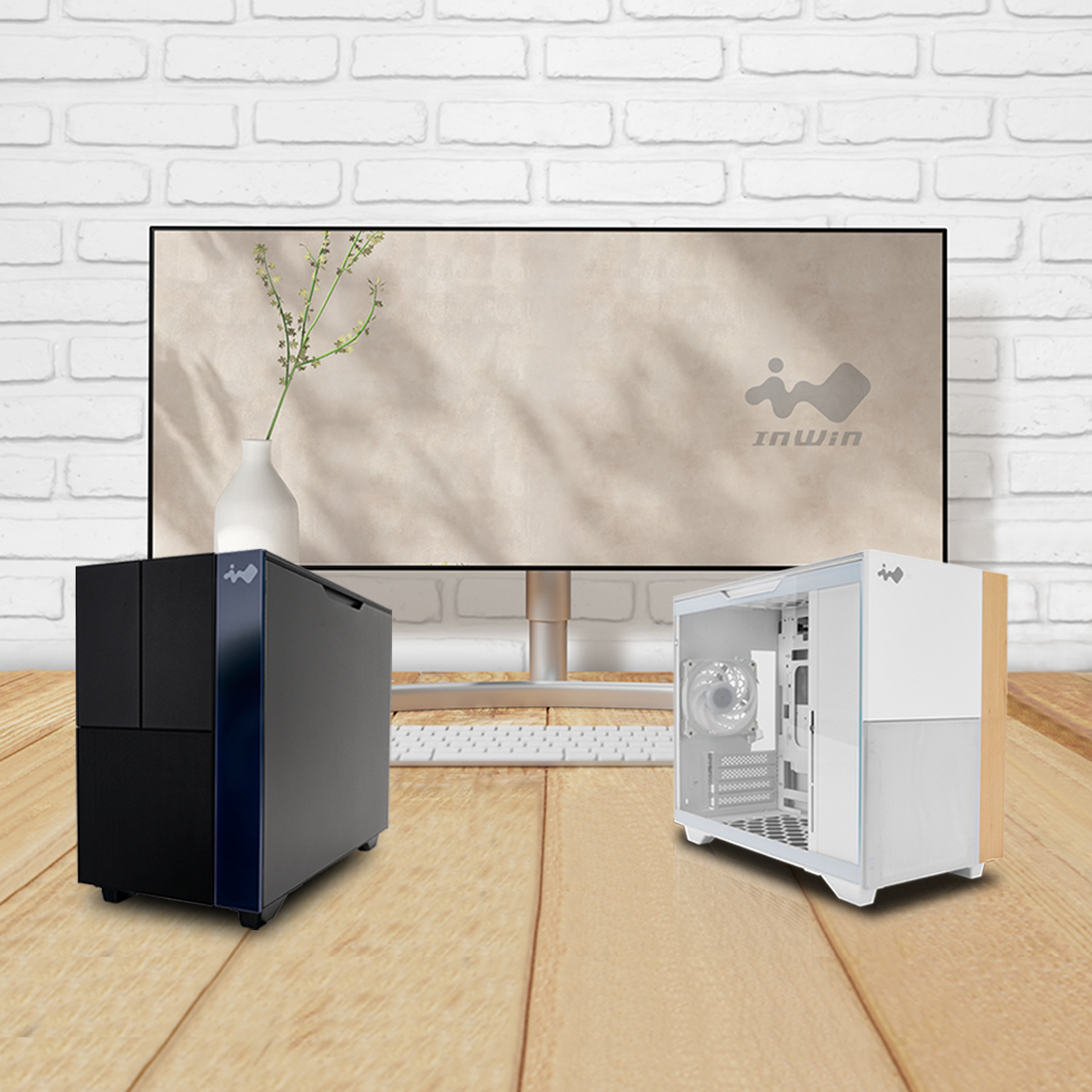

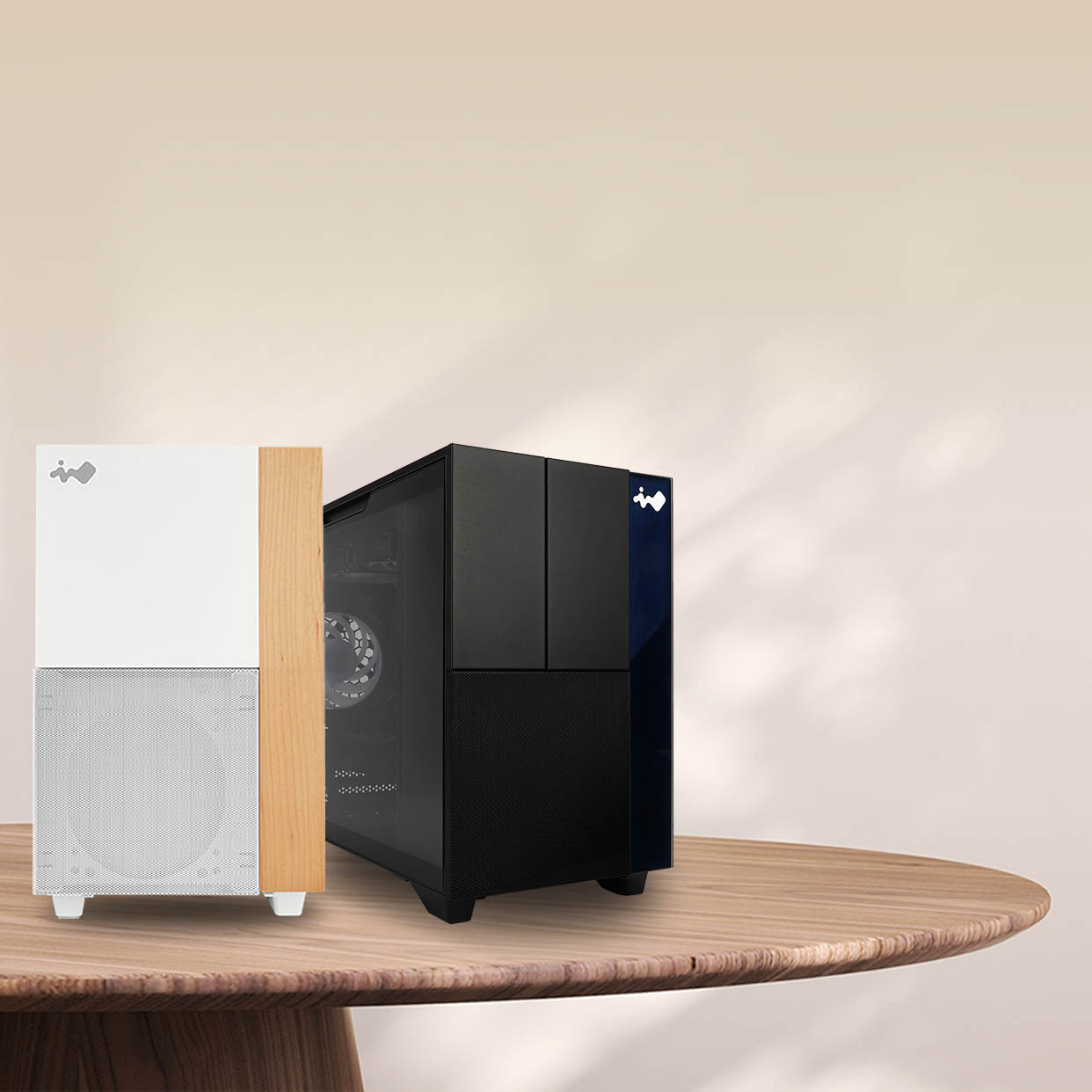

Redefine Your PC Aesthetic

Inheriting the classy F-Series design, the new F3 case offers a choice between elegant maple wood and modern glass, allowing your PC to fit your lifestyle and taste.

All About the Hardware Flair

The F3 accommodates micro-ATX motherboards and supports GPU lengths up to 360 mm. It can even fit a 3.5-slot graphics card to make it ideal for creating compact workstations capable of light AI computation or a killer gaming PC. The choice is yours!
* Space below for installing 3.5-slot or larger graphics cards may be < 20 mm.

Build Small. Play Big.

This case is compatible with SFF-Ready Enthusiast GeForce cards, so you can pack high performance into a smaller footprint. Look for SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.

Back-Connector M/B Design

The F3 supports back-connecting motherboards provide tidier cable management and allows for easy installation of two HDDs or three SSDs.
* Supports ASUS BTF and MSI Project Zero Series back-connector mATX motherboards.

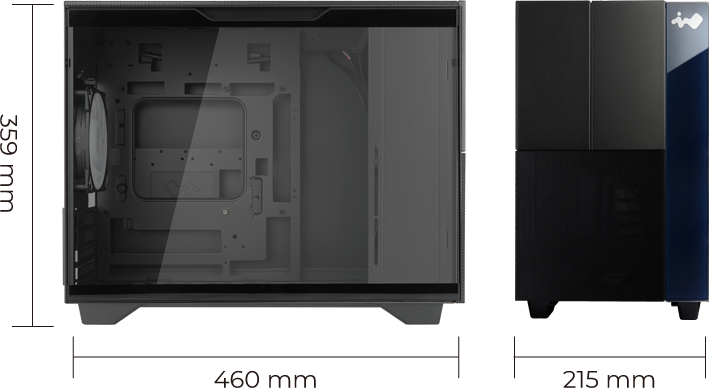

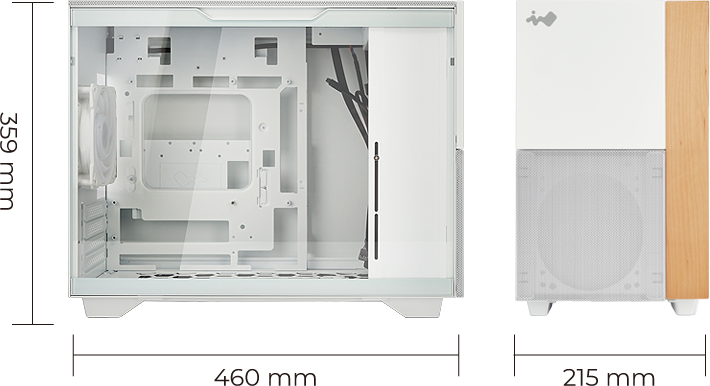

Model F3
Model Number IW-CS-F3BLK-1AN120, IW-CS-F3WHI-1AN120P
Colors Black, White
Case Type Mini Tower
Materials SECC, Tempered Glass
SECC, Tempered Glass, Wood
M/B Compatibility Micro-ATX, Mini-ITX
Expansion Slots 4 x PCI-E
Maximum Compatibility GPU Length: 360 mm
CPU Heatsink Height: 160 mm
I/O Ports 1 x USB 3.2 Gen 2x2 Type-C
2 x USB 3.2 Gen 1
HD Audio Combo (CTIA – SPK/Mic)
Internal Drive Bays 1 x 3.5" / 2.5"
1 x 3.5" / 2 x 2.5"
Thermal Solution Compatibility Air Cooling Fans:
Front: 1 x 120 mm
Top: 2 x 120 / 140 mm
Rear: 1 x 120 mm
Bottom: 2 x 120 mm
(1 InWin AN120 / AN120P Fan Included)

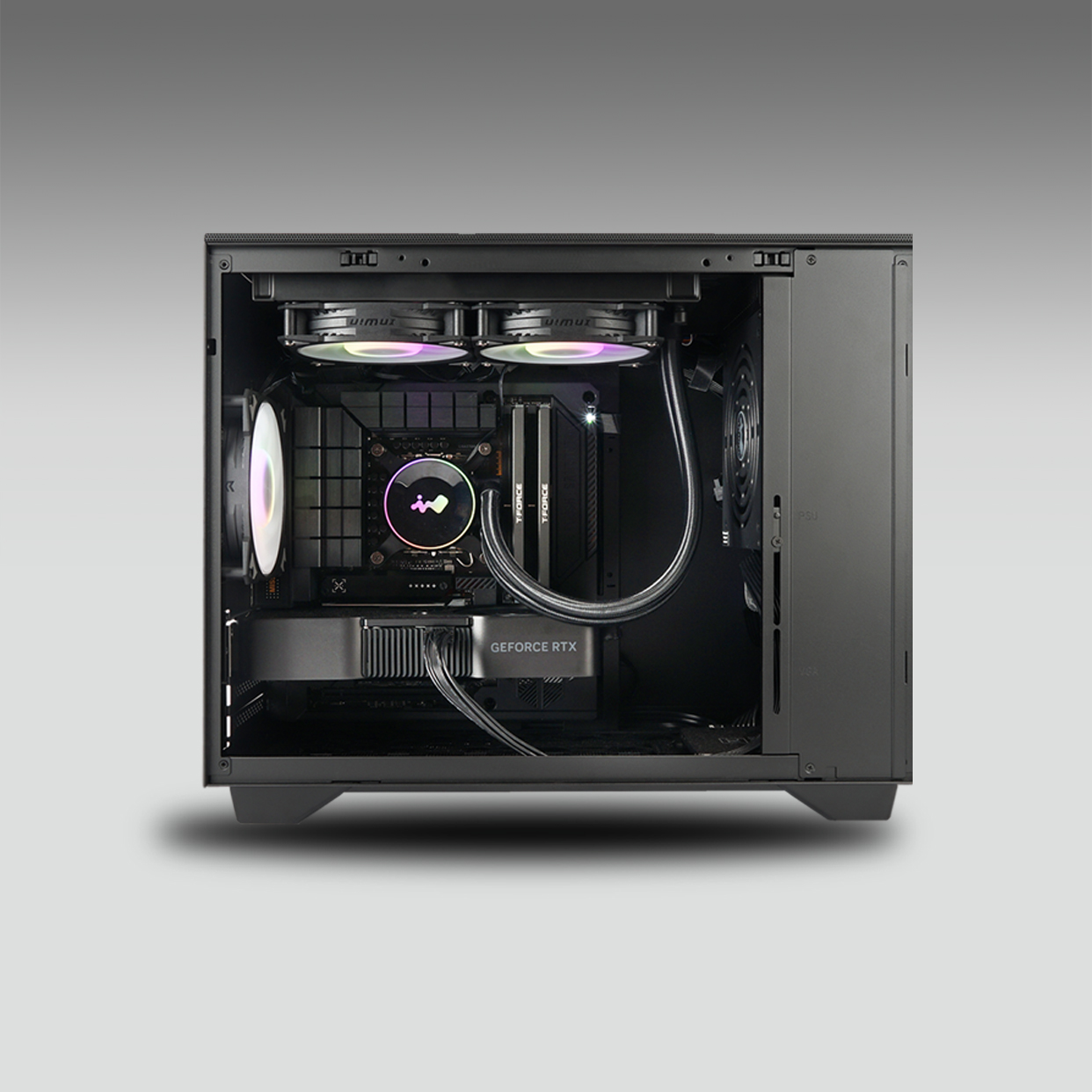

Water Cooling Radiator:
Top: 1 x 240 / 280 mm
Power Supply Compatibility PSII: ATX12V
- Length up to 160 mm
* InWin's products comply with RoHS regulation.
* Specifications may vary based on different regions.
