Inspired by InWin’s Tòu signature chassis, PRISM’s mirrored glass panel conceals your components when the lights are off, only to be revealed when the internal lighting radiates through to create a transparent-to-opaque visual effect.
PRISM boasts a seamless spliced three-piece glass panel, forming a pristine frameless panoramic view. Precise cuts ensure both durability and stunning visuals, exemplifying InWin’s dedication to craftsmanship and design excellence.

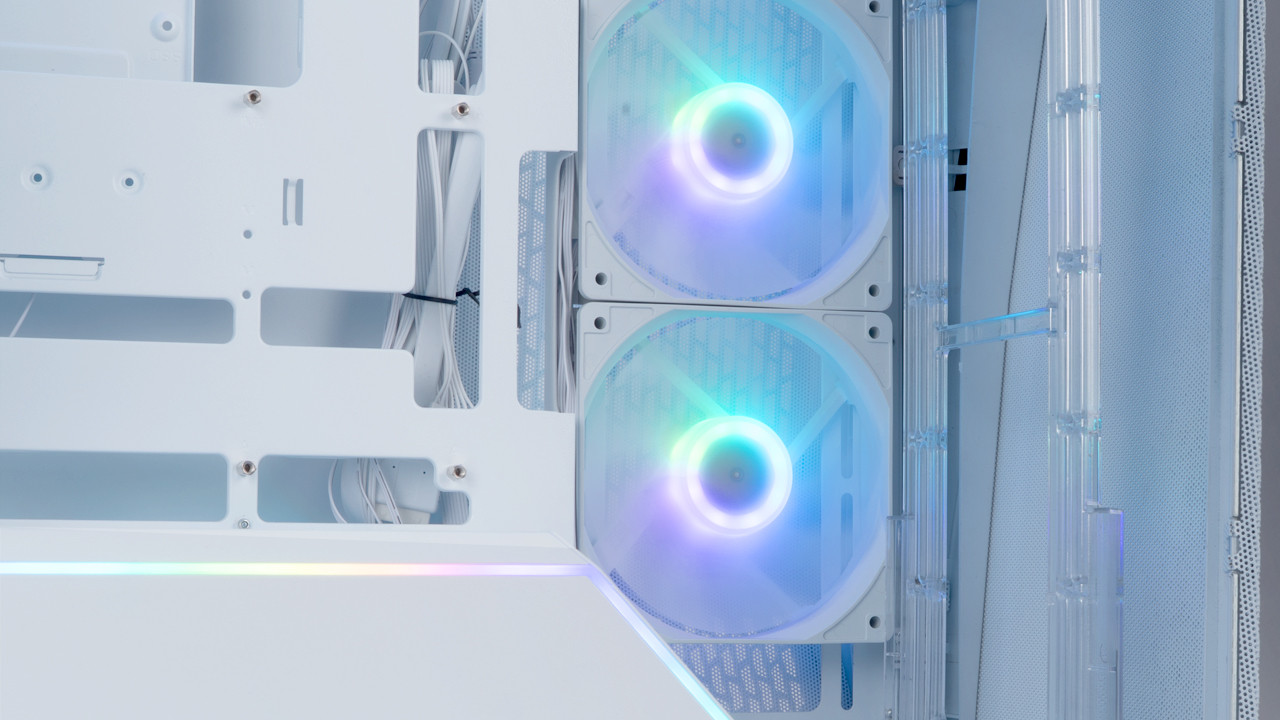

Accommodates up to 10 fans and 240, 280, and 360mm radiators, featuring four pre-installed VORTEX regular blade fans. The perforated front and geometric mesh side panels optimize airflow for superior cooling performance.
* Pre-installed VX120 Fans: 3 × Side, 1 × Rear
Learn More
The VORTEX fans have two variants, Regular or Reverse blade options for versatile airflow and full ARGB visibility no matter which cooling direction. Intelligent PWM cooling adjusts speed for optimal performance and striking visuals.
| Regular Blade (Pre-installed) | |
|---|---|
| Model | VORTEX |
| Quantity Included | Single Pack |
| Style | Regular Blade |
| Model Number | IW-FN-VX120-1PK, IW-FN-VX120P-1PK |
| Color | Black, White |
| Fan Size | 120 x 120 x 25 mm |
| Materials | PBT, PC |
| Rated Voltage | DC 12V |
| Rated Power | 2.76W |
| Rated Current | 0.23A |
| ARGB Rated Voltage | DC 5V |
| ARGB Rated Power | 1.45W |
| ARGB Rated Current | 0.29A |
| Speed Mode | PWM 600 - 1600 RPM |
| Air Flow | 66.37 CFM |
| Air Pressure | 1.4 mm / H2O |
| LED | Addressable RGB |
| Connector to M/B | 4-Pin (12V, PWM), 3-Pin (5V, ARGB) |
| Noise Level | 31.7 dB(A) |
| Bearing Type | Hydro Bearing |
| * InWin's products comply with RoHS regulations. * Specifications may vary based on different regions. |
|
| Reverse Blade (Optional) | |
|---|---|
| Model | VORTEX |
| Quantity Included | Single Pack |
| Style | Reverse Blade |
| Model Number | IW-FN-VX120-RB-1PK, IW-FN-VX120P-RB-1PK |
| Color | Black, White |
| Fan Size | 120 x 120 x 25 mm |
| Materials | PBT, PC |
| Rated Voltage | DC 12V |
| Rated Power | 2.76W |
| Rated Current | 0.23A |
| ARGB Rated Voltage | DC 5V |
| ARGB Rated Power | 1.45W |
| ARGB Rated Current | 0.29A |
| Speed Mode | PWM 600 - 1600 RPM |
| Air Flow | 63.89 CFM |
| Air Pressure | 1.05 mm / H2O |
| LED | Addressable RGB |
| Connector to M/B | 4-Pin (12V, PWM), 3-Pin (5V, ARGB) |
| Noise Level | 37.2 dB(A) |
| Bearing Type | Hydro Bearing |
| * InWin's products comply with RoHS regulations. * Specifications may vary based on different regions. |
|

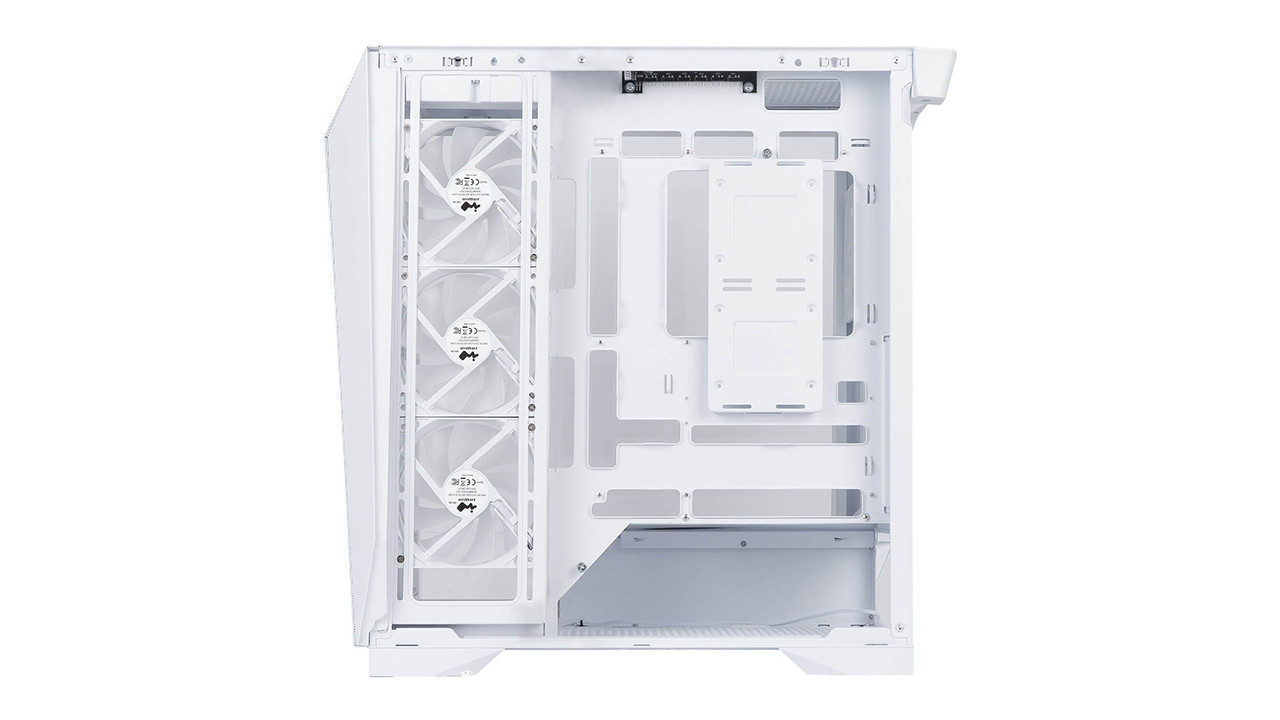

PRISM supports ATX motherboards and GPUs up to 435mm, it is the ideal chassis for high-performance workstations and gaming rigs.
* Supports Back-Connector ATX and Micro-ATX motherboards.
| Model | PRISM |
|---|---|
| Model Number | IW-CS-PRISMBLK-4VX120, IW-CS-PRISMWHI-4VX120 |
| Color | Black, White |
| Case Type | Mid Tower |
| Materials | SPCC, Tempered Glass |
| M/B Compatibility | ATX, Micro-ATX, Mini-ITX |
| Expansion Slots | 7 x PCI-E (Riser Card Optional; Not Included in Package) |
| Maximum Compatibility | GPU Length: 435 mm CPU Heatsink Height: 175 mm |
| I/O Ports | 1 x USB 3.2 Gen 2x2 Type-C 2 x USB 3.2 Gen 1 HD Audio Combo (CTIA – SPK/Mic) LED Lighting Control Switch |
| Internal Drive Bays | 2 x 3.5" & 2 x 2.5" (2.5" SSD H 7 mm Max.) |
| Thermal Solution Compatibility | Air Cooling Fans: Front: 3 x 120 / 140 mm Top: 3 x 120 / 2 x 140 mm Rear: 1 x 120 mm Side: 3 x 120 mm (4 InWin VX120 Fans Included) Water Cooling Radiators: Front: 1 x 240 / 360 mm Top: 1 x 240 / 280 / 360 mm Rear: 1 x 120 mm Side: 1 x 240 / 360 mm |
| Power Supply Compatibility | PSII: ATX12V - Length up to 238 mm |

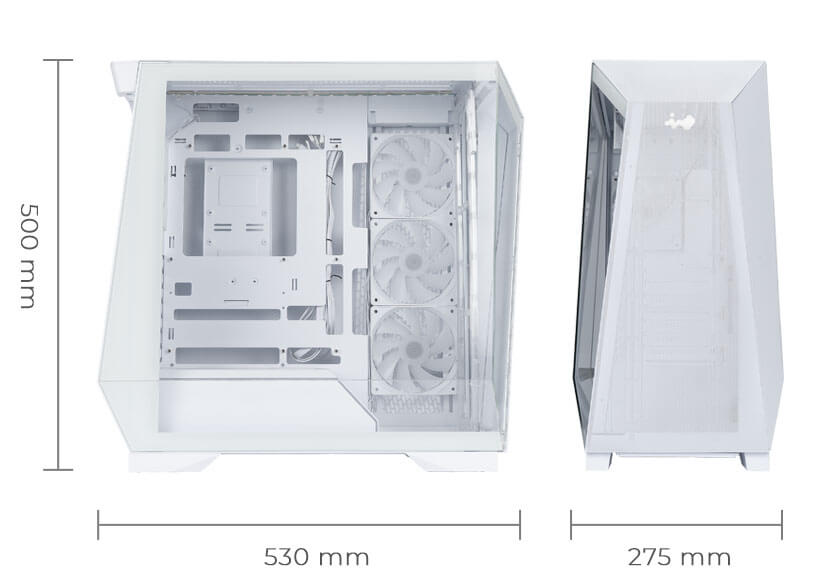

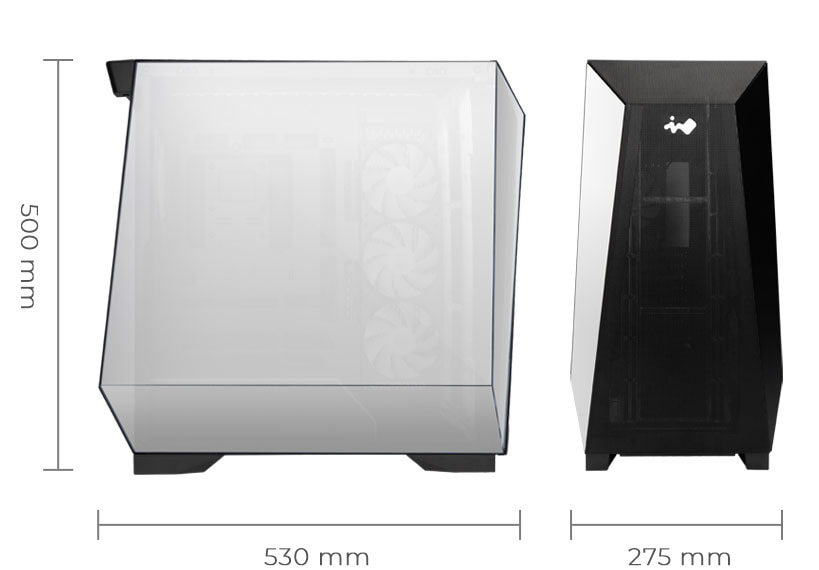

| Product Dimensions (L x W x H) |
530 x 275 x 500 mm 20.9 x 10.8 x 19.7" |
| Package Dimensions (L x W x H) |
583 x 370 x 638 mm 22.9 x 14.5 x 25.1" |
| Net Weight | 10.01 Kg / 22.2 lbs |
| Gross Weight | 12.3 Kg / 27.1 lbs |
| * InWin's products comply with RoHS regulation. * Specifications may vary based on different regions. |
|
