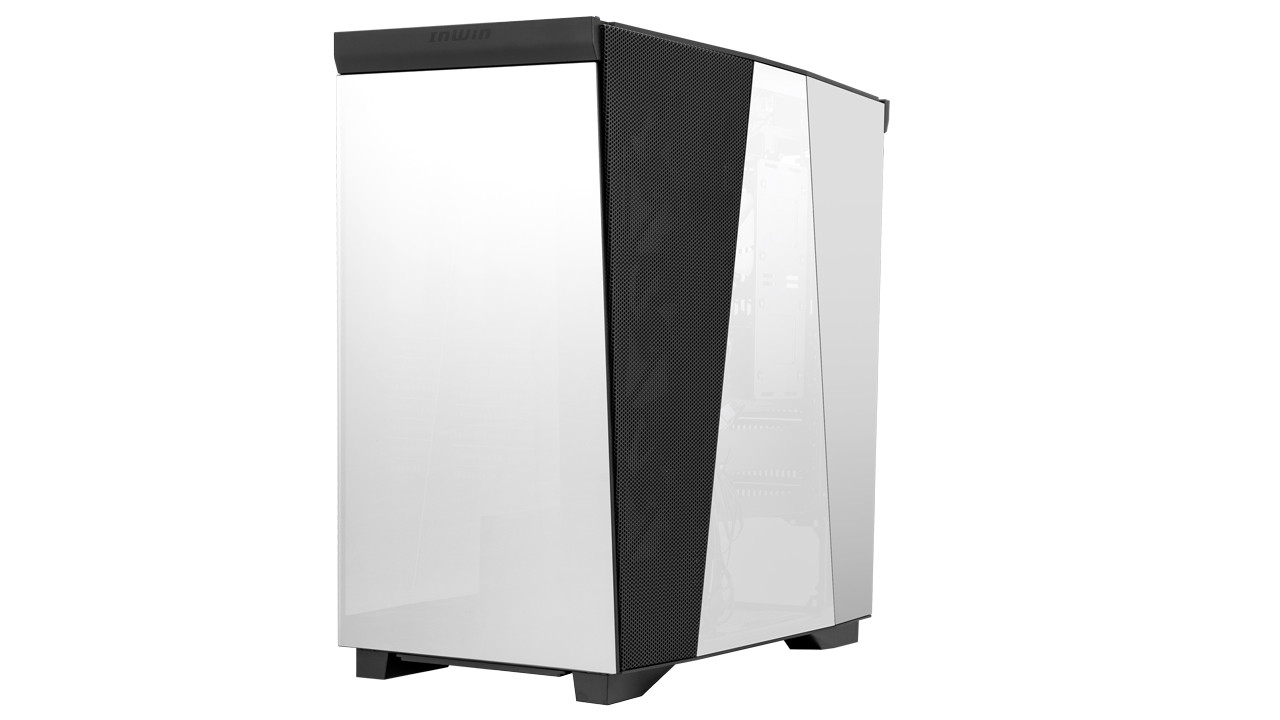

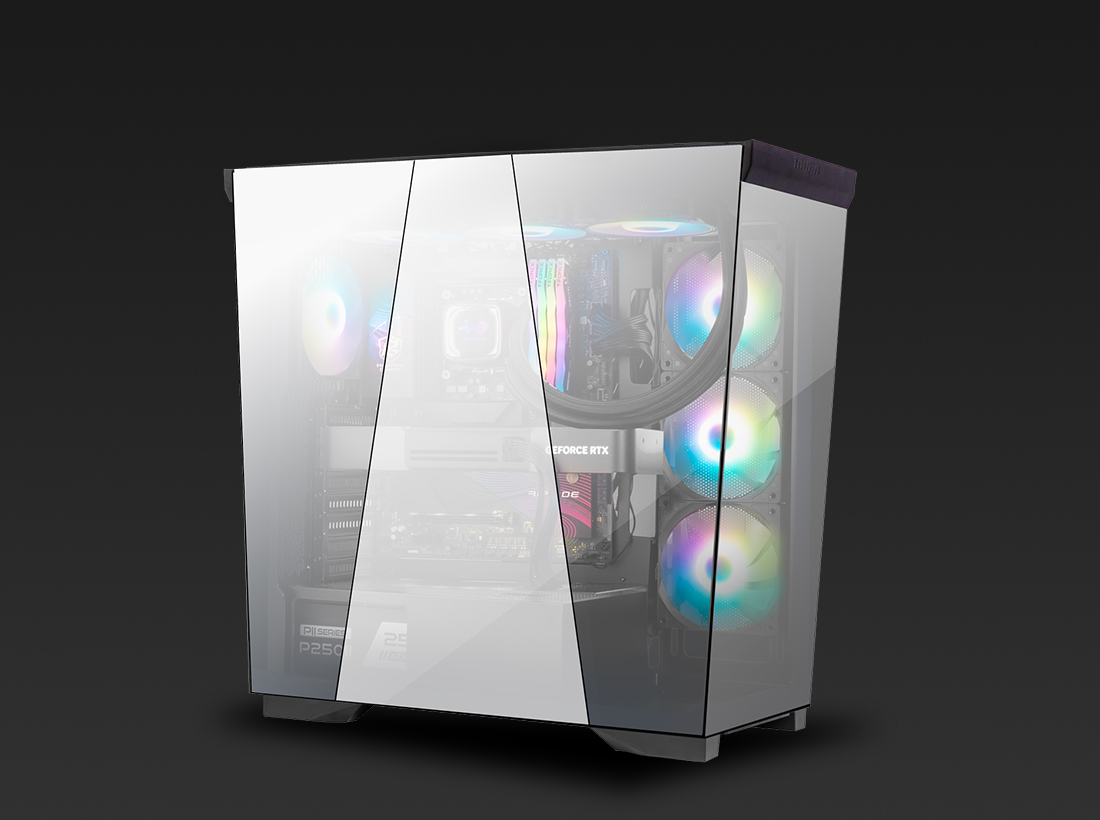

Tempered glass forms InWin’s signature W-shaped split, delivering a bold, panoramic showcase.

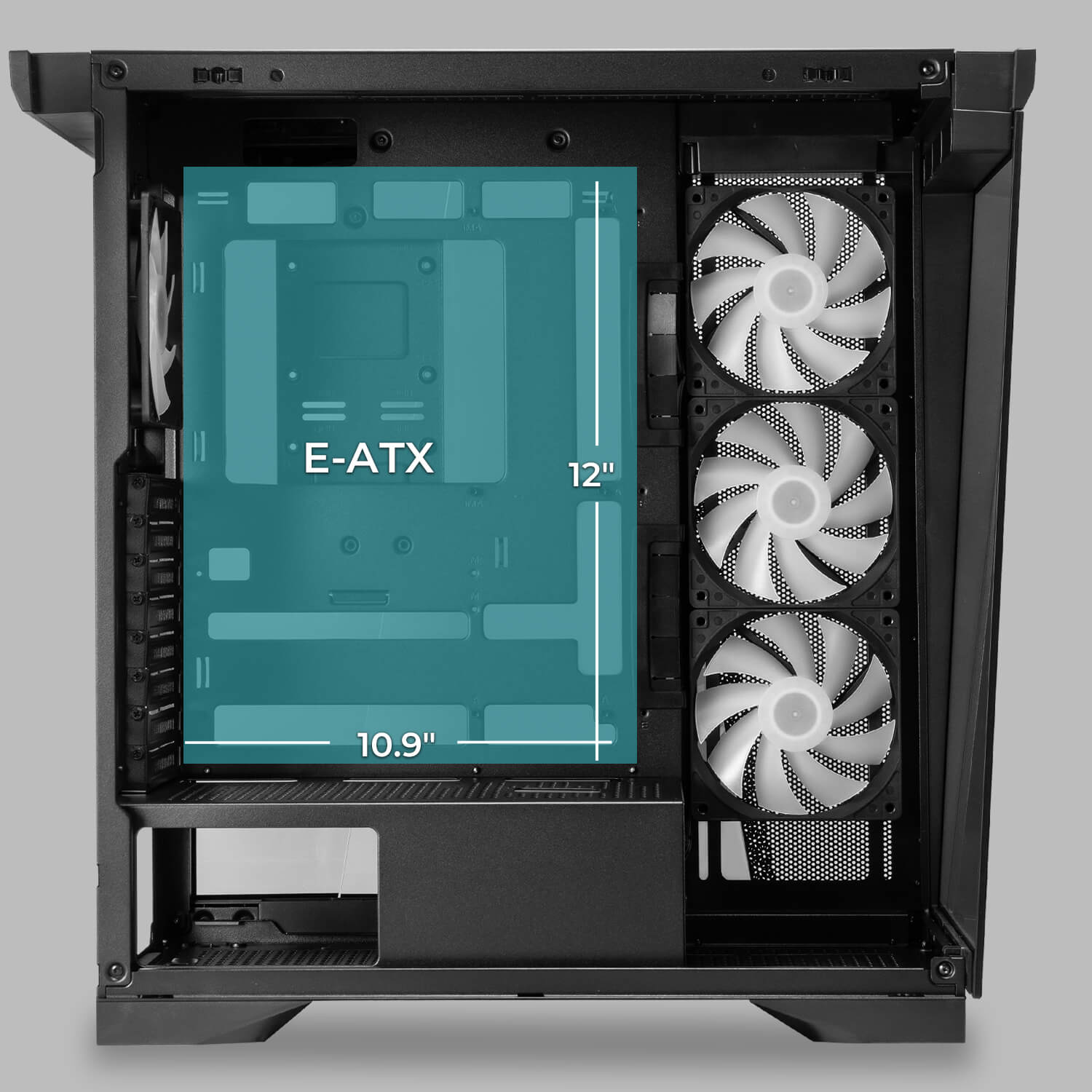

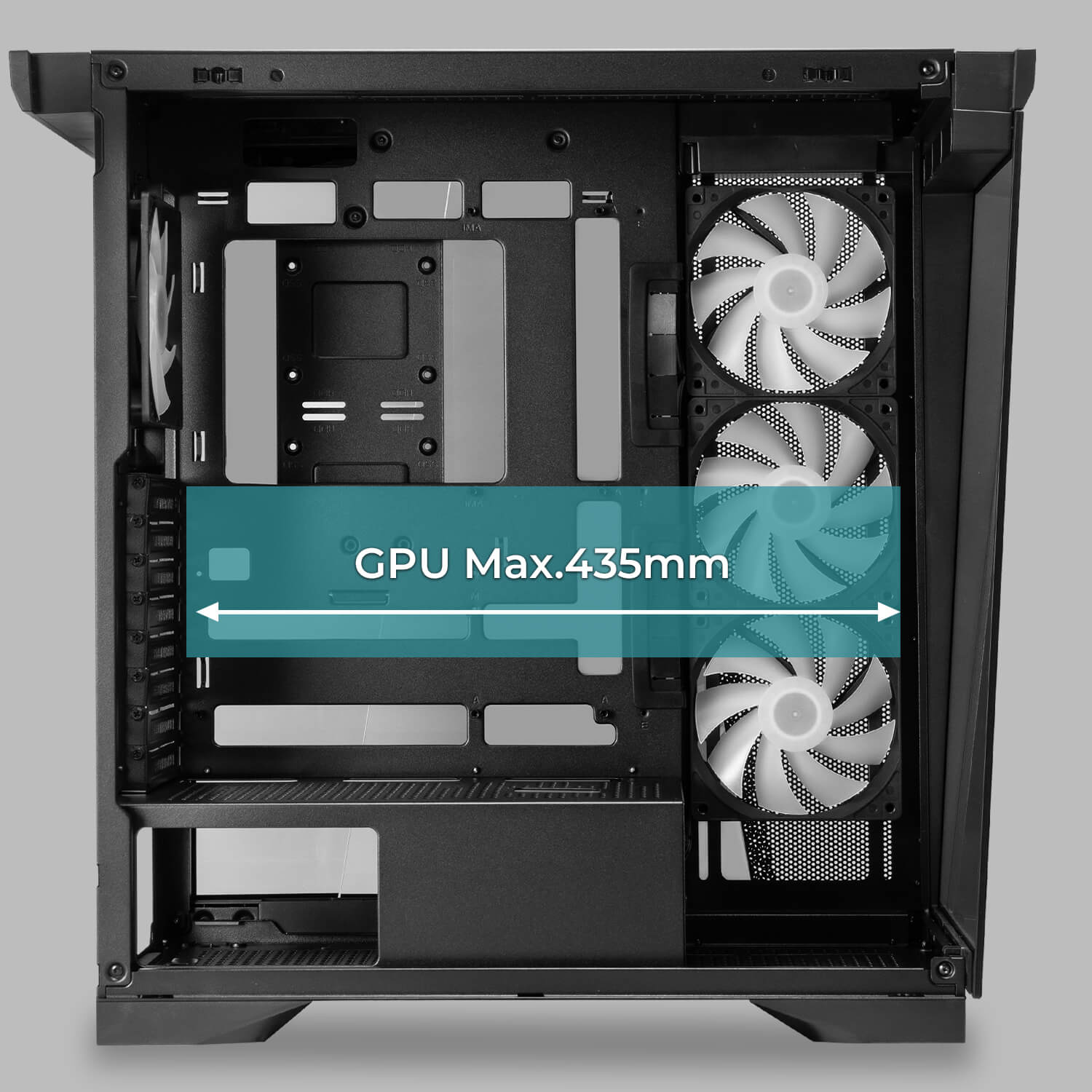

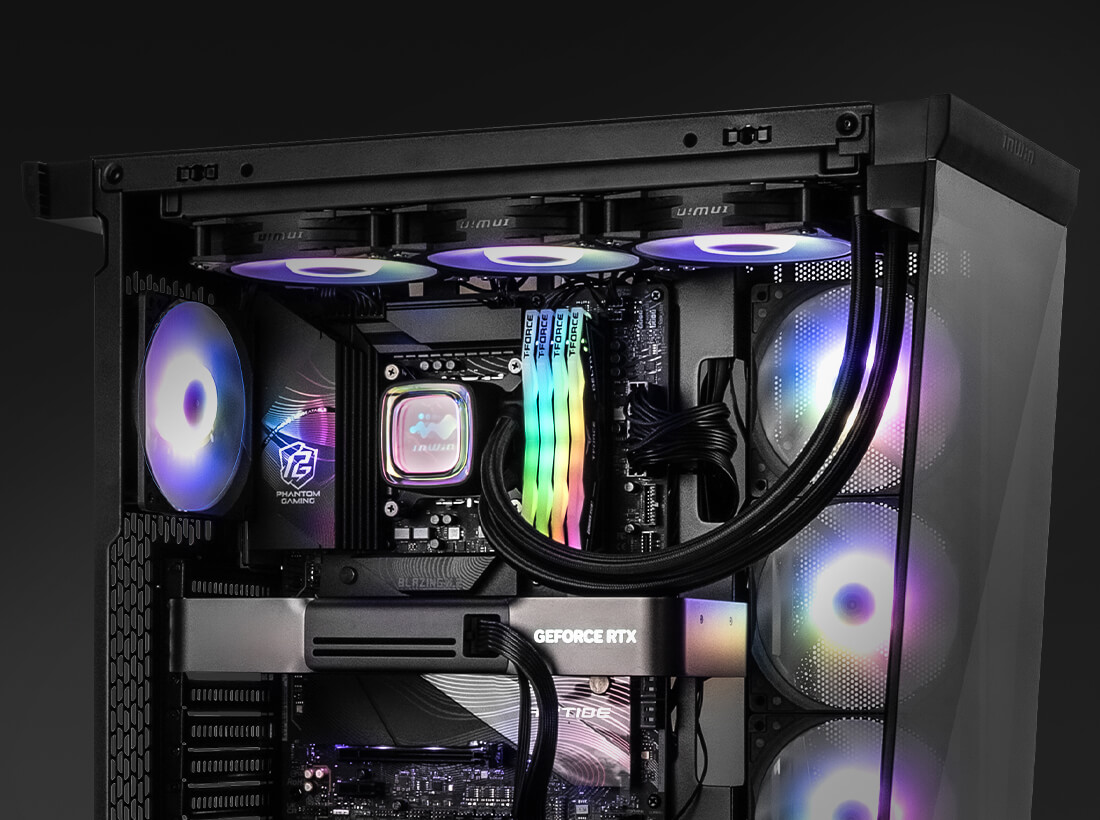

Supports E-ATX (12" × 10.9") and back-connect ATX & Micro-ATX motherboards, GPUs up to 435 mm, CPU coolers up to 175 mm, and PSUs up to 238 mm. Includes flexible drive bays for dual 3.5" and 2.5" storage, with streamlined cable routing for a cleaner build.
* Compatible with ASUS BTF, MSI Project Zero, and Gigabyte Project Stealth.

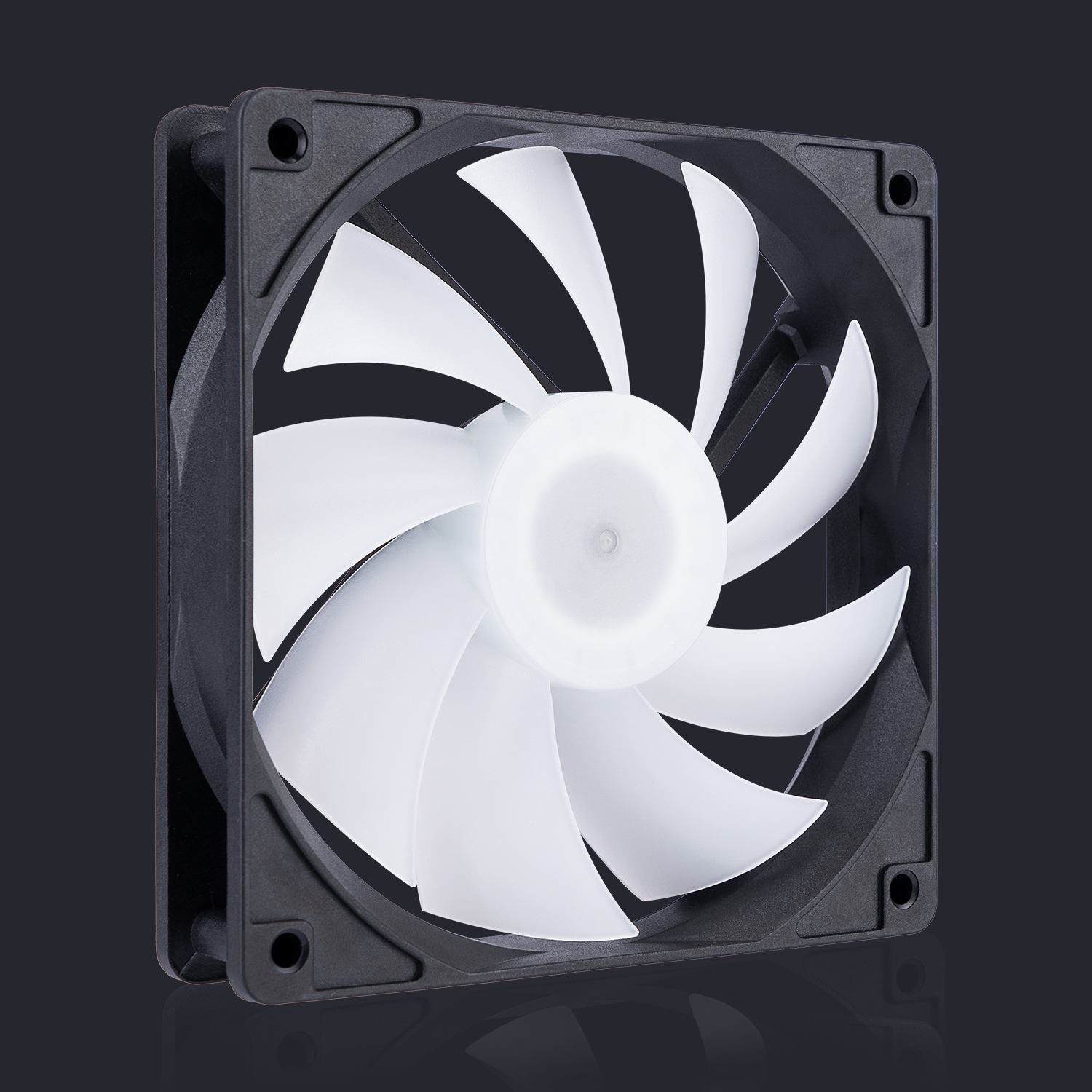

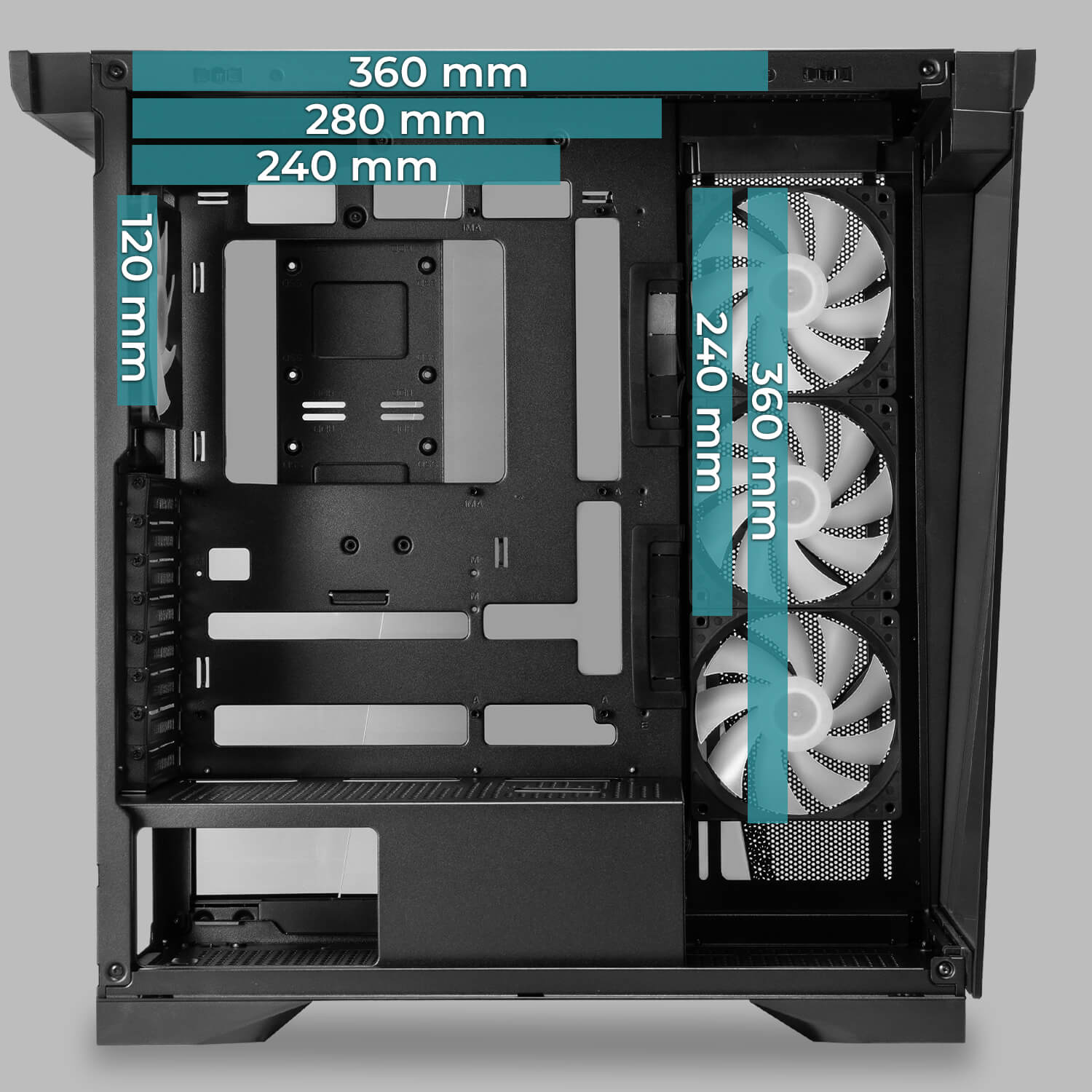

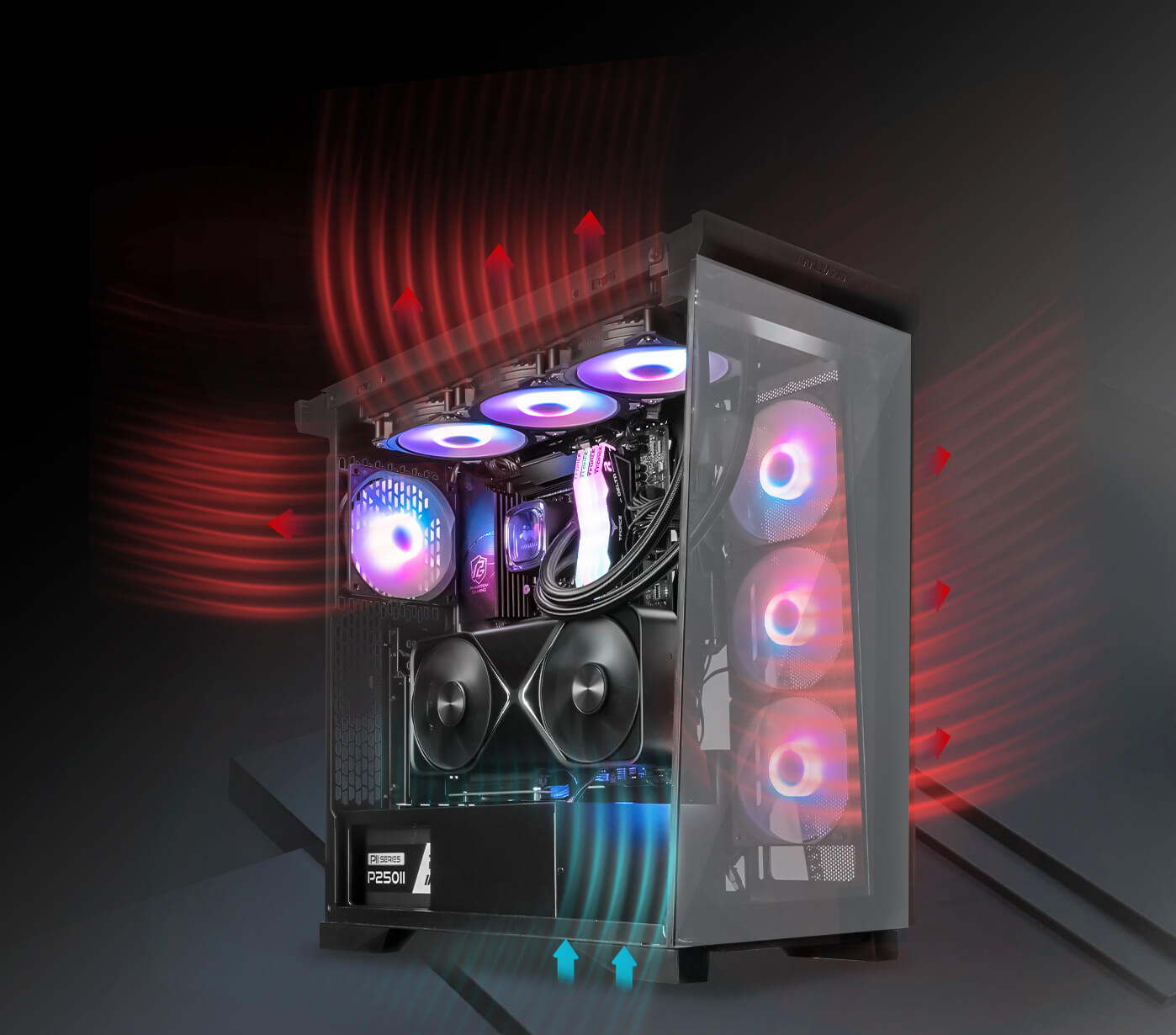

Pre-installed with four powerful yet quiet Vortex VX120 fans (3 × side, 1 × rear), delivering instant airflow and 19 lighting modes via the I/O LED button or motherboard sync. Supports up to 360 mm radiators on the top and side, plus 120-280 mm AIOs for flexible cooling configurations.
Learn More

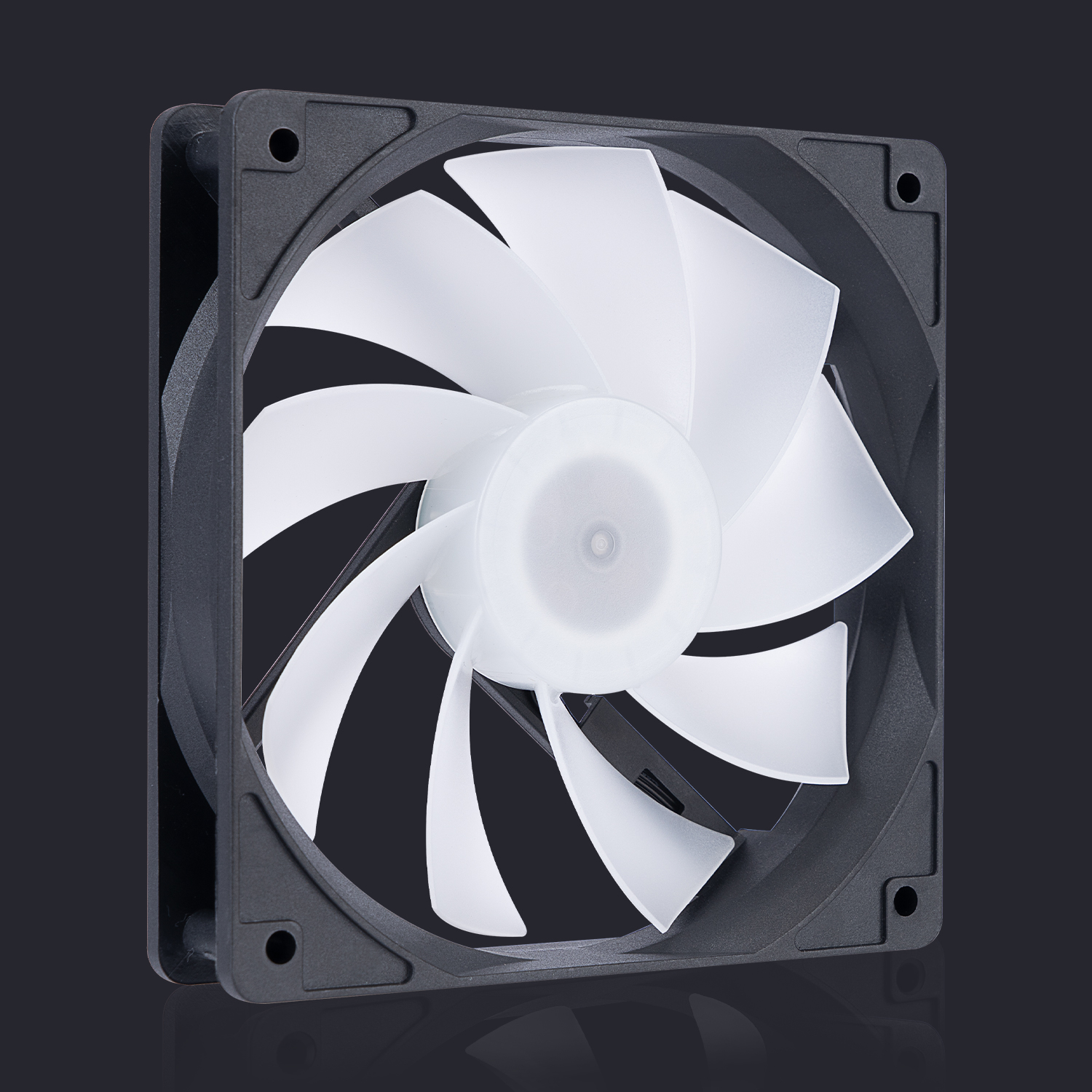

The VORTEX fans have two variants, Regular or Reverse blade options for versatile airflow and full ARGB visibility no matter which cooling direction. Intelligent PWM cooling adjusts speed for optimal performance and striking visuals.
| Regular Blade (Pre-installed) | |
|---|---|
| Model | VORTEX |
| Quantity Included | Single Pack |
| Style | Regular Blade |
| Model Number | IW-FN-VX120-1PK |
| Color | Black |
| Fan Size | 120 x 120 x 25 mm |
| Materials | PBT, PC |
| Rated Voltage | DC 12V |
| Rated Power | 2.76W |
| Rated Current | 0.23A |
| ARGB Rated Voltage | DC 5V |
| ARGB Rated Power | 1.45W |
| ARGB Rated Current | 0.29A |
| Speed Mode | PWM 600 - 1600 RPM |
| Air Flow | 66.37 CFM |
| Air Pressure | 1.4 mm / H2O |
| LED | Addressable RGB |
| Connector to M/B | 4-Pin (12V, PWM), 3-Pin (5V, ARGB) |
| Noise Level | 31.7 dB(A) |
| Bearing Type | Hydro Bearing |
| * InWin's products comply with RoHS regulations. * Specifications may vary based on different regions. |
|
| Reverse Blade (Optional) | |
|---|---|
| Model | VORTEX |
| Quantity Included | Single Pack |
| Style | Reverse Blade |
| Model Number | IW-FN-VX120-RB-1PK |
| Color | Black |
| Fan Size | 120 x 120 x 25 mm |
| Materials | PBT, PC |
| Rated Voltage | DC 12V |
| Rated Power | 2.76W |
| Rated Current | 0.23A |
| ARGB Rated Voltage | DC 5V |
| ARGB Rated Power | 1.45W |
| ARGB Rated Current | 0.29A |
| Speed Mode | PWM 600 - 1600 RPM |
| Air Flow | 63.89 CFM |
| Air Pressure | 1.05 mm / H2O |
| LED | Addressable RGB |
| Connector to M/B | 4-Pin (12V, PWM), 3-Pin (5V, ARGB) |
| Noise Level | 37.2 dB(A) |
| Bearing Type | Hydro Bearing |
| * InWin's products comply with RoHS regulations. * Specifications may vary based on different regions. |
|

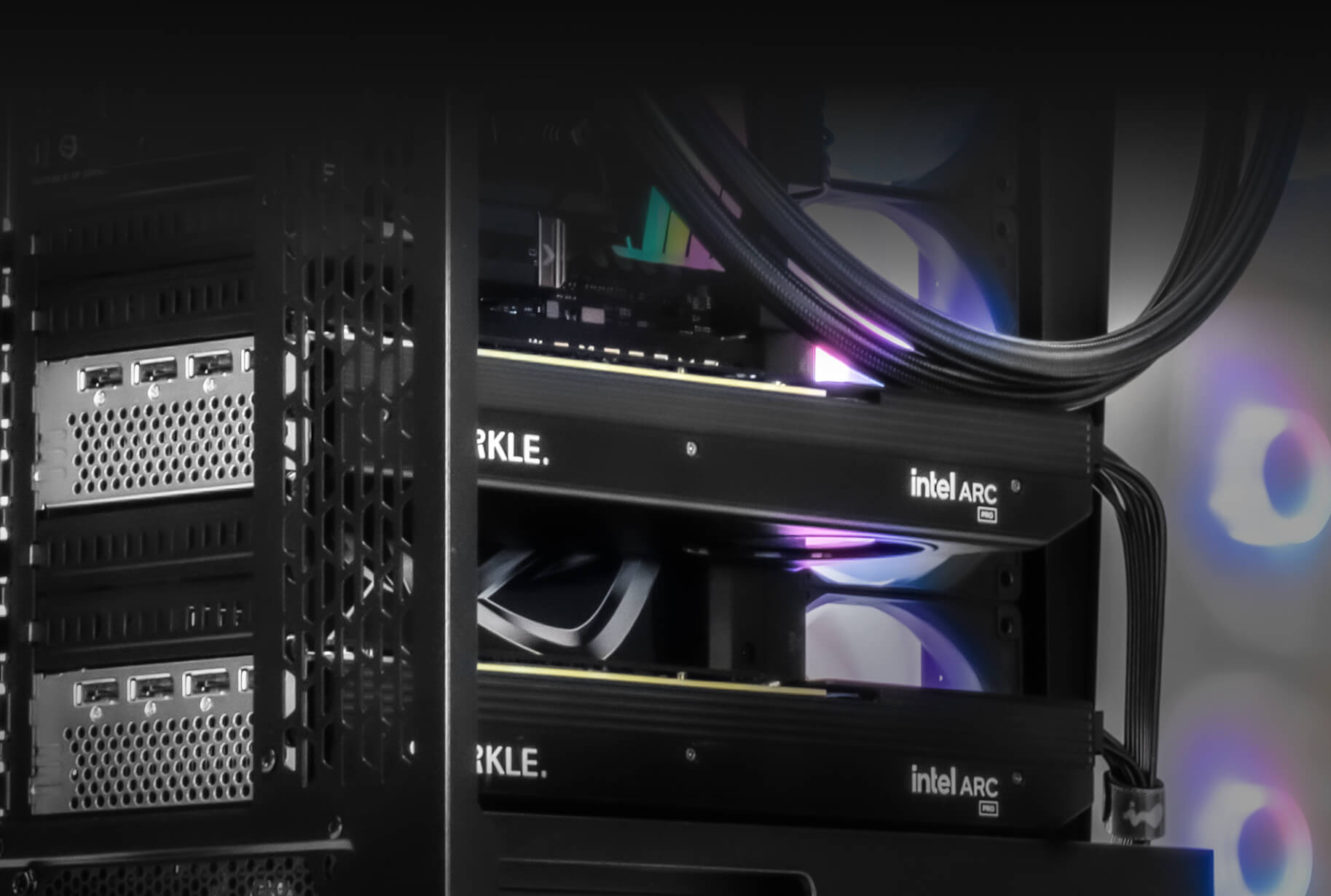

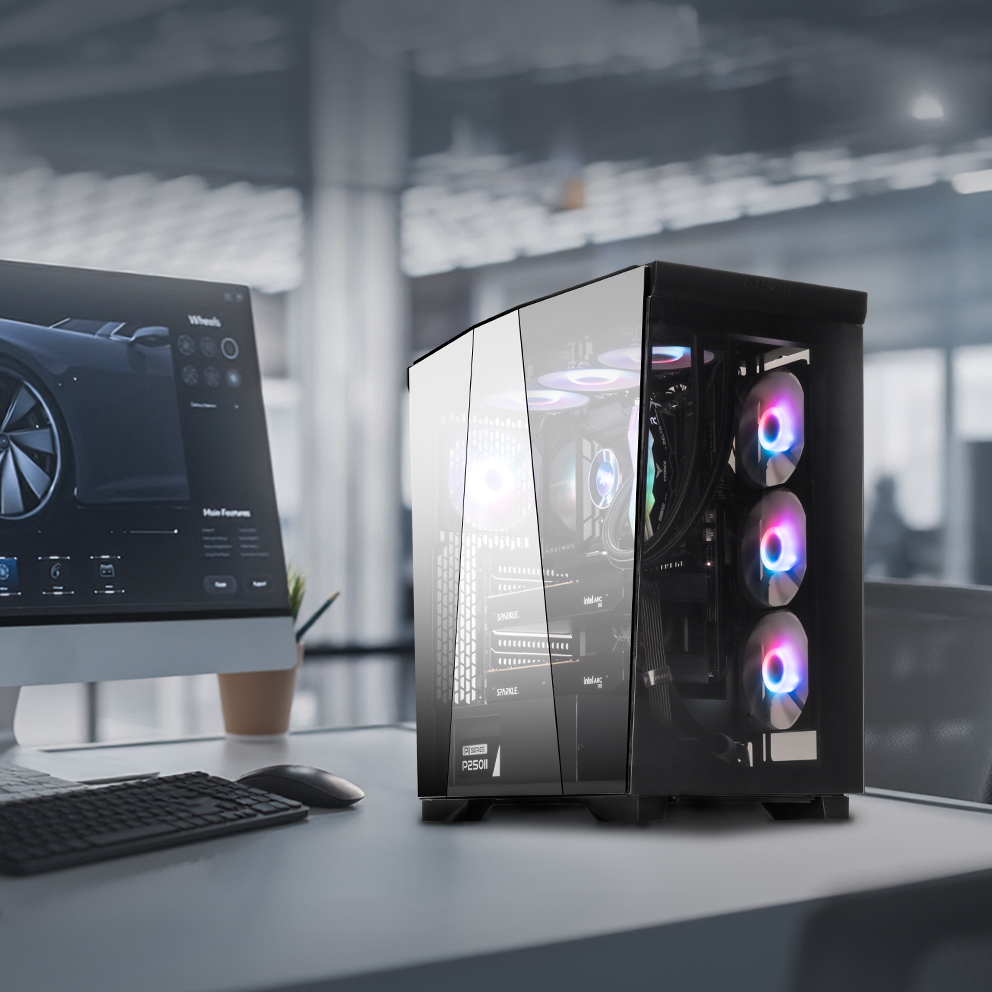

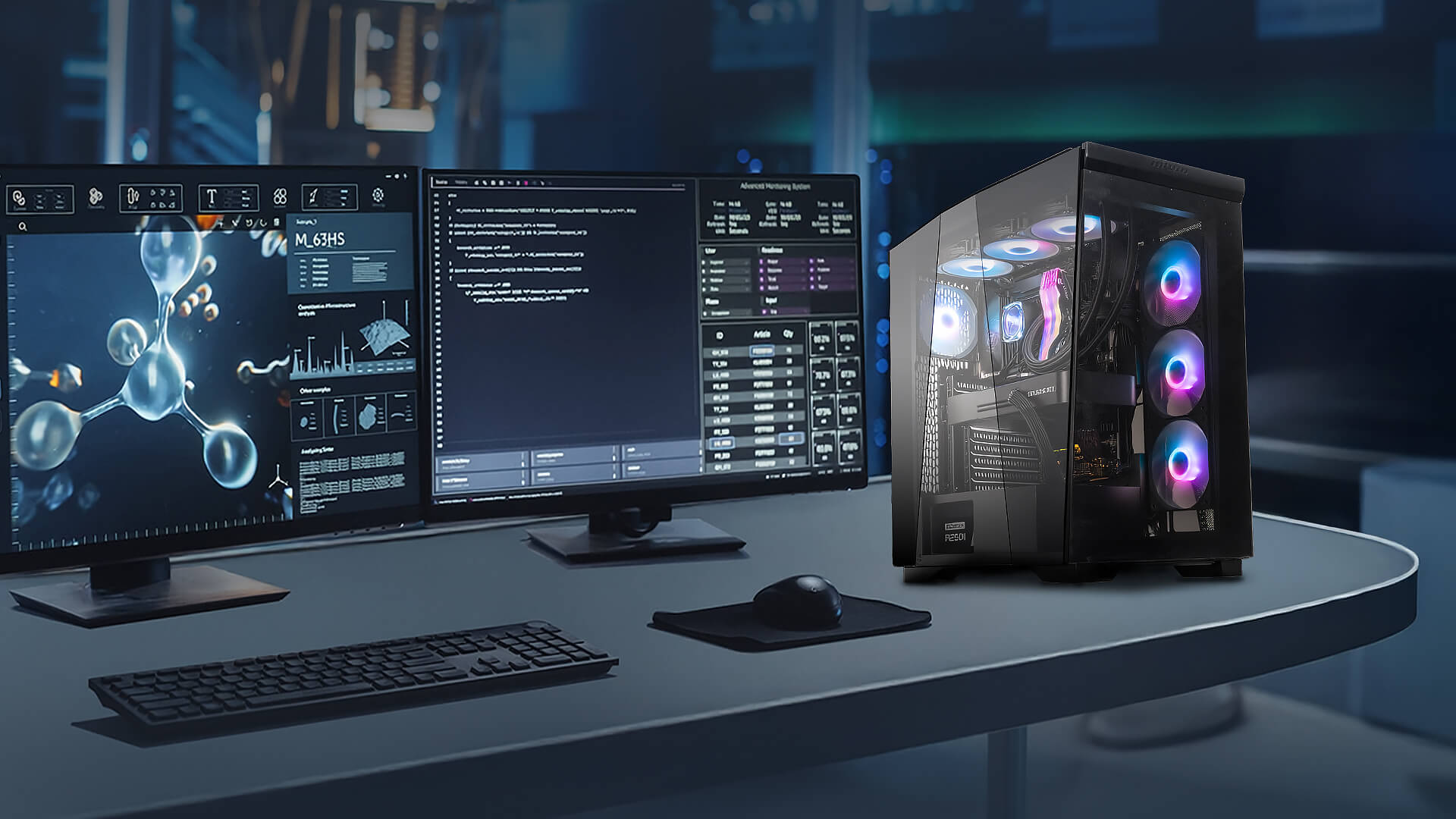

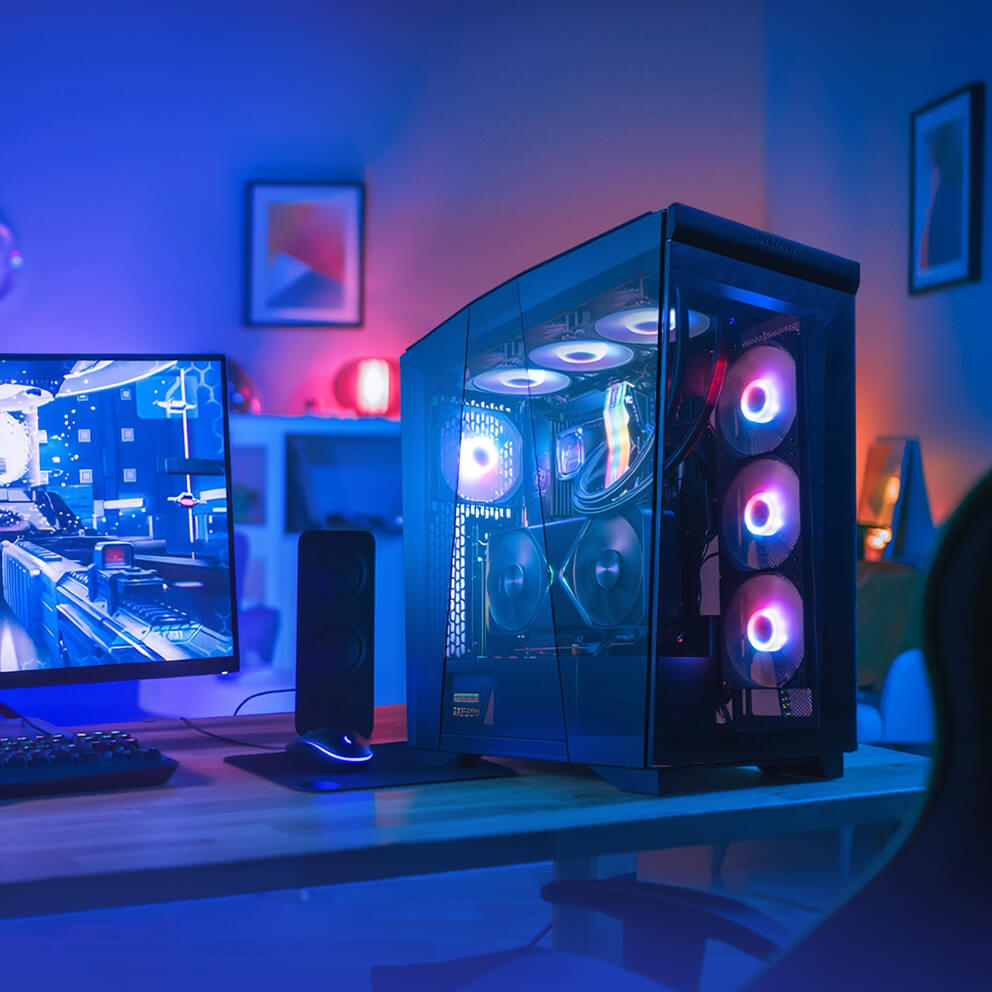

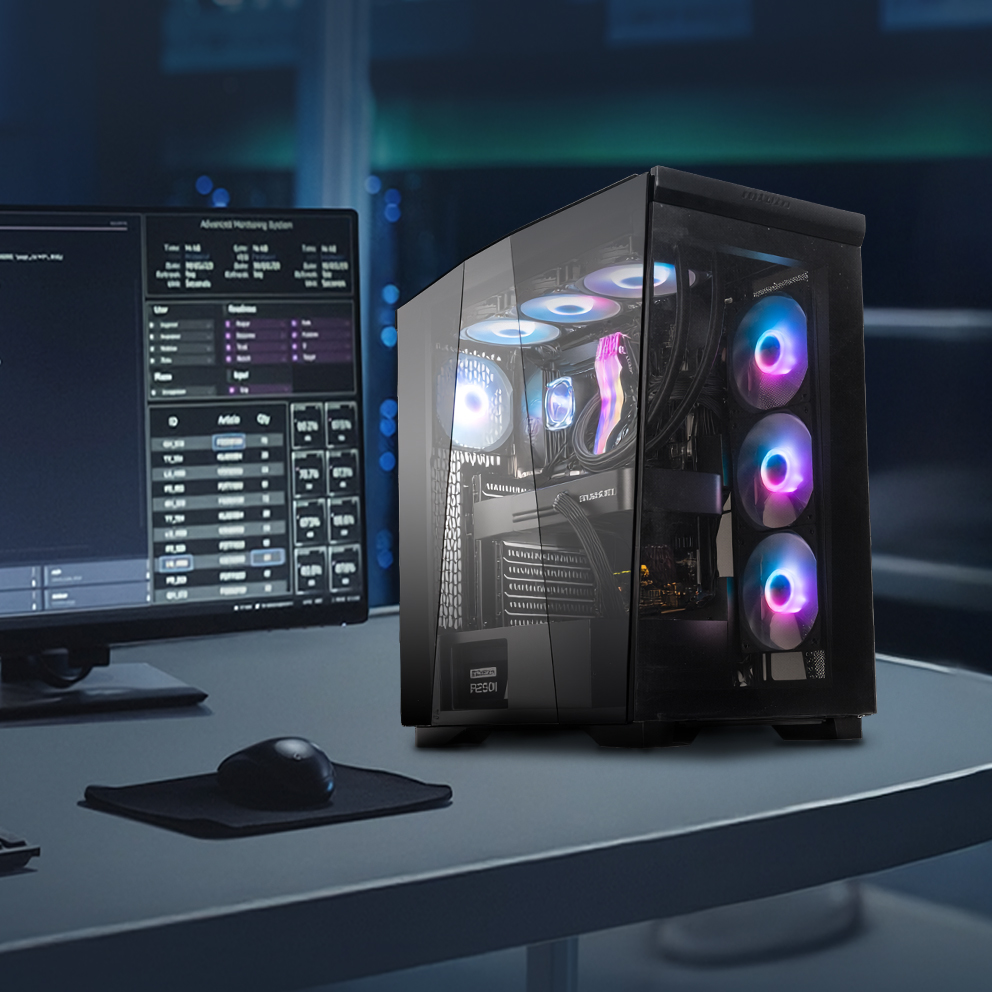

From AI and rendering to extreme gaming, the W50 adapts with versatile hardware support. Its 8-slot PCIe layout accommodates dual professional GPUs, add-on cards, or flagship graphics cards with optimized airflow. A modular bracket enables vertical or horizontal GPU installation, offering maximum flexibility for any build.
*PCIe modular bracket is not included in the package.

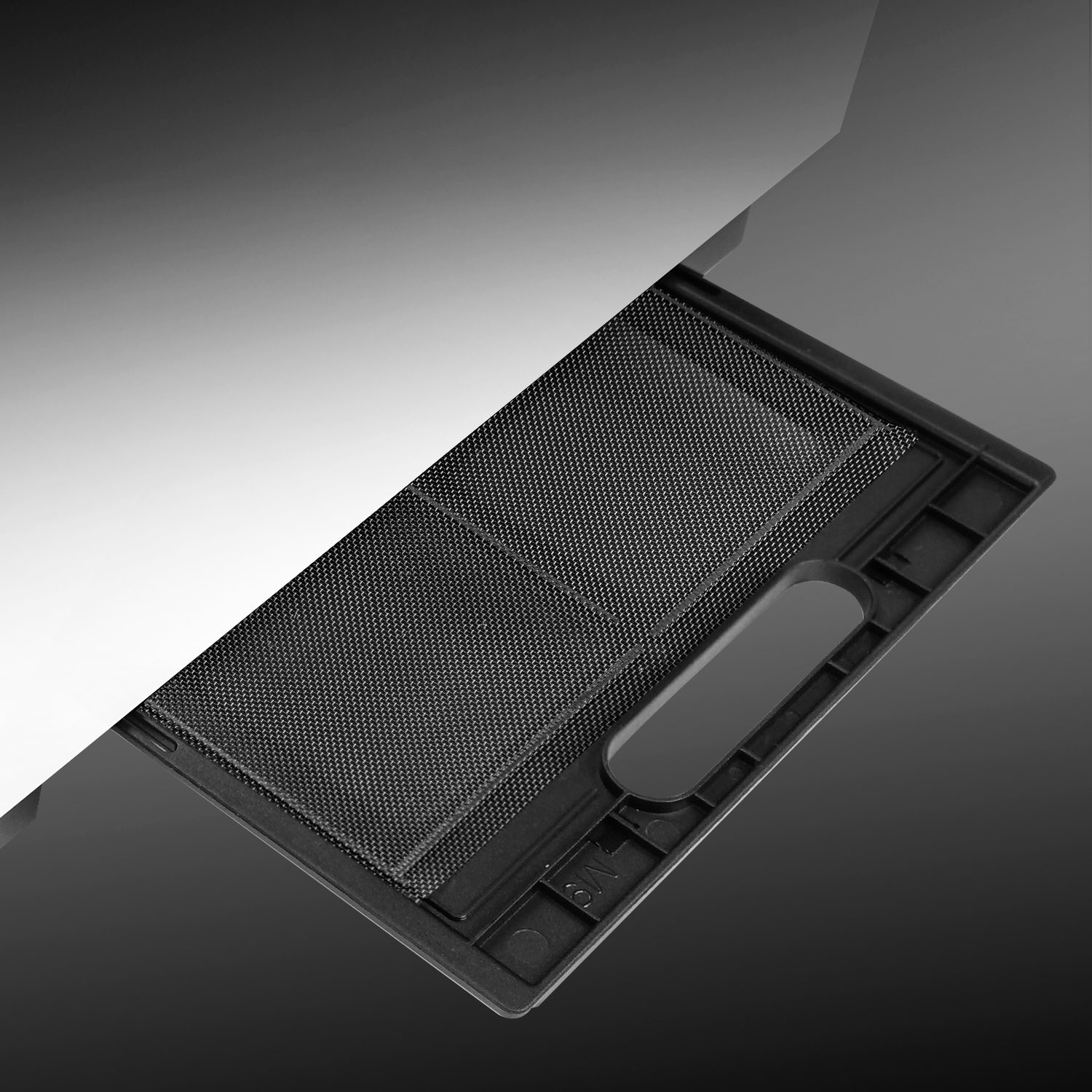

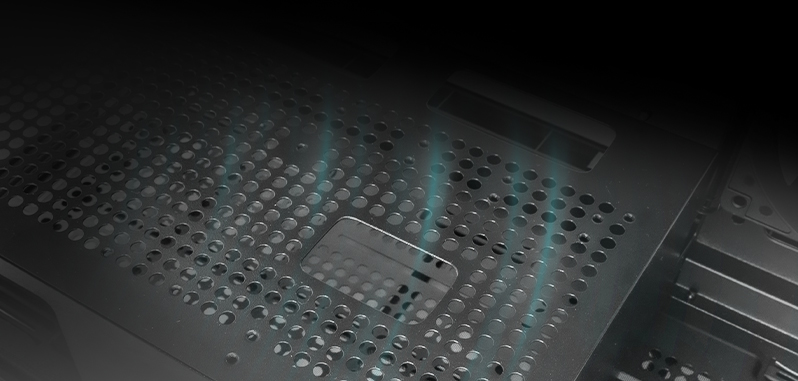

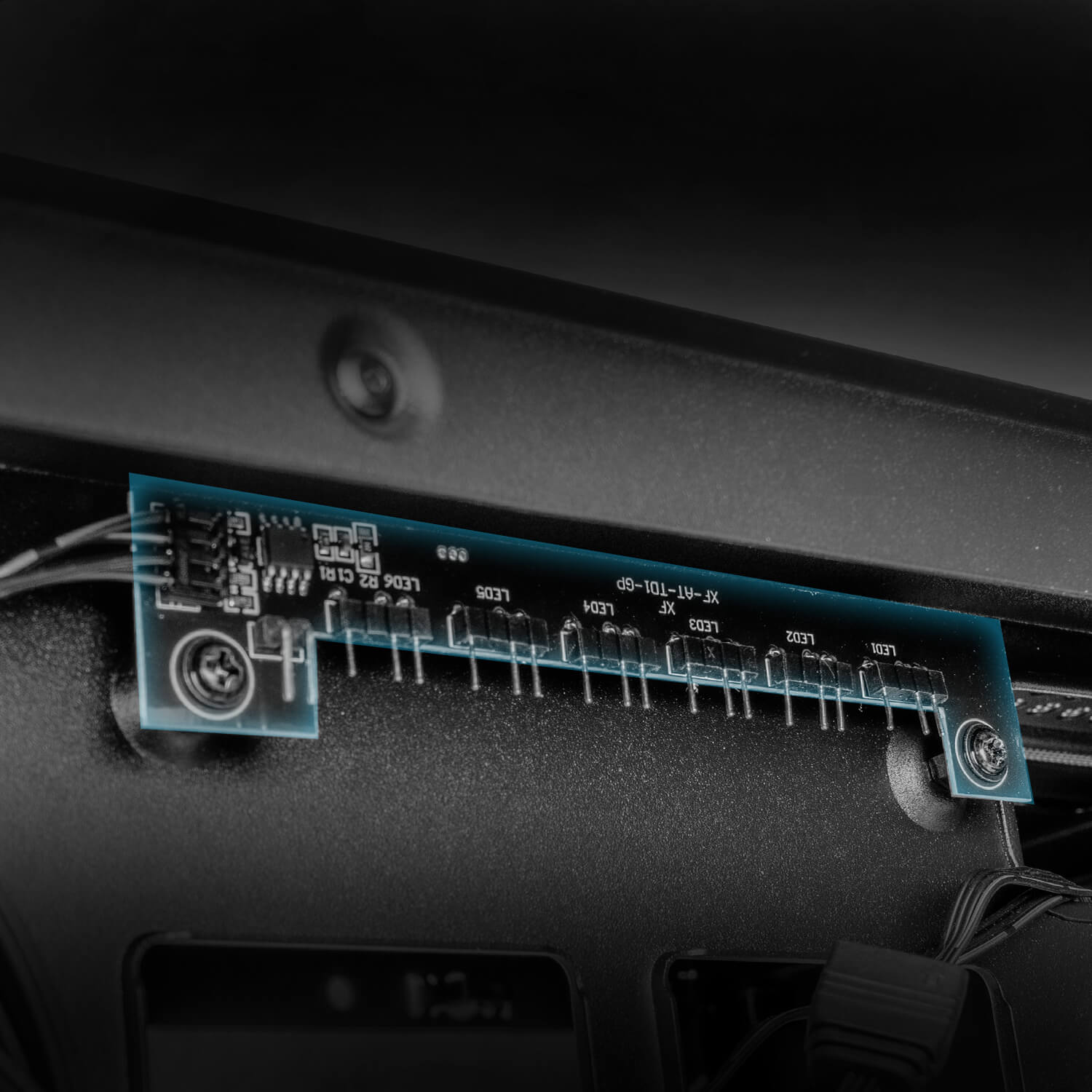

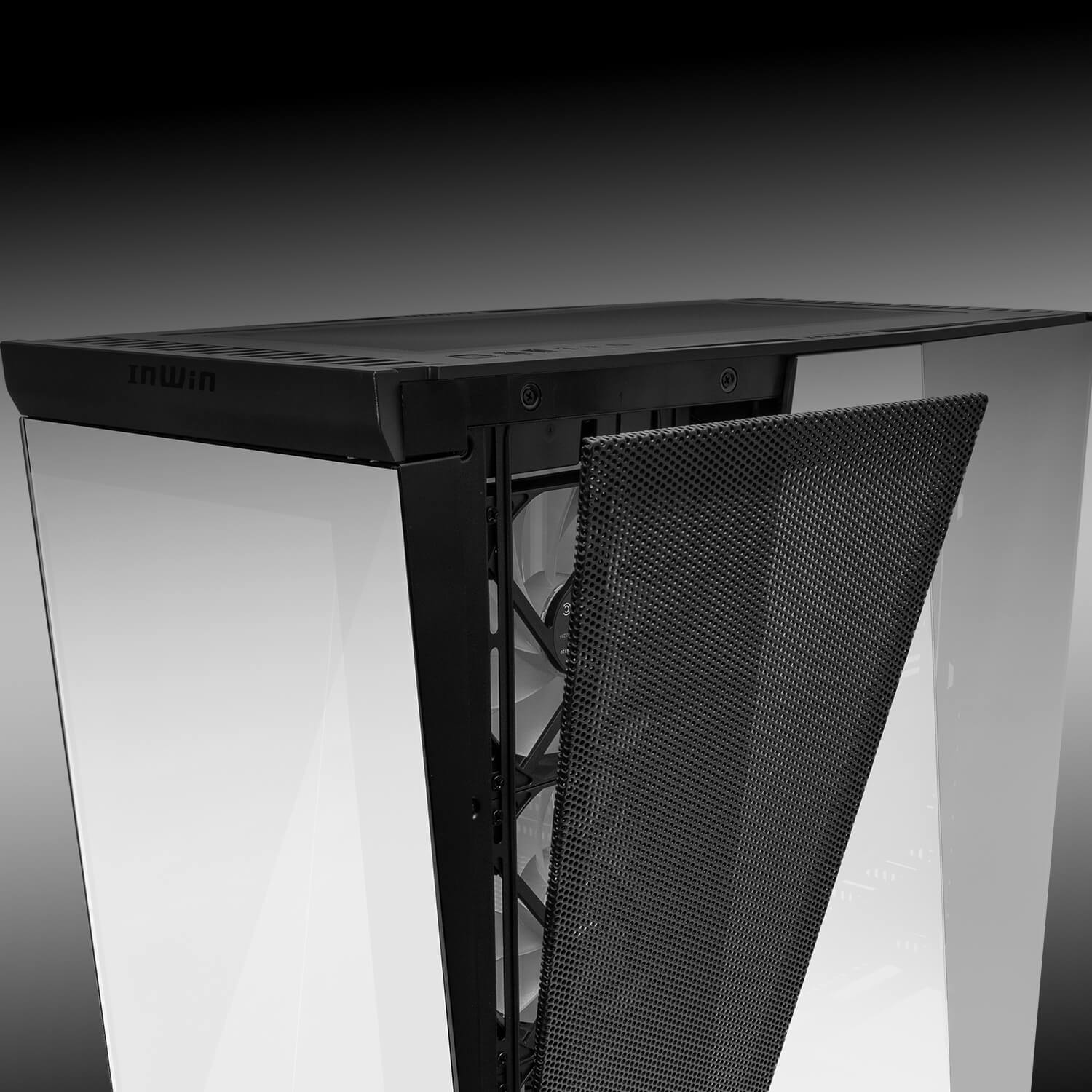

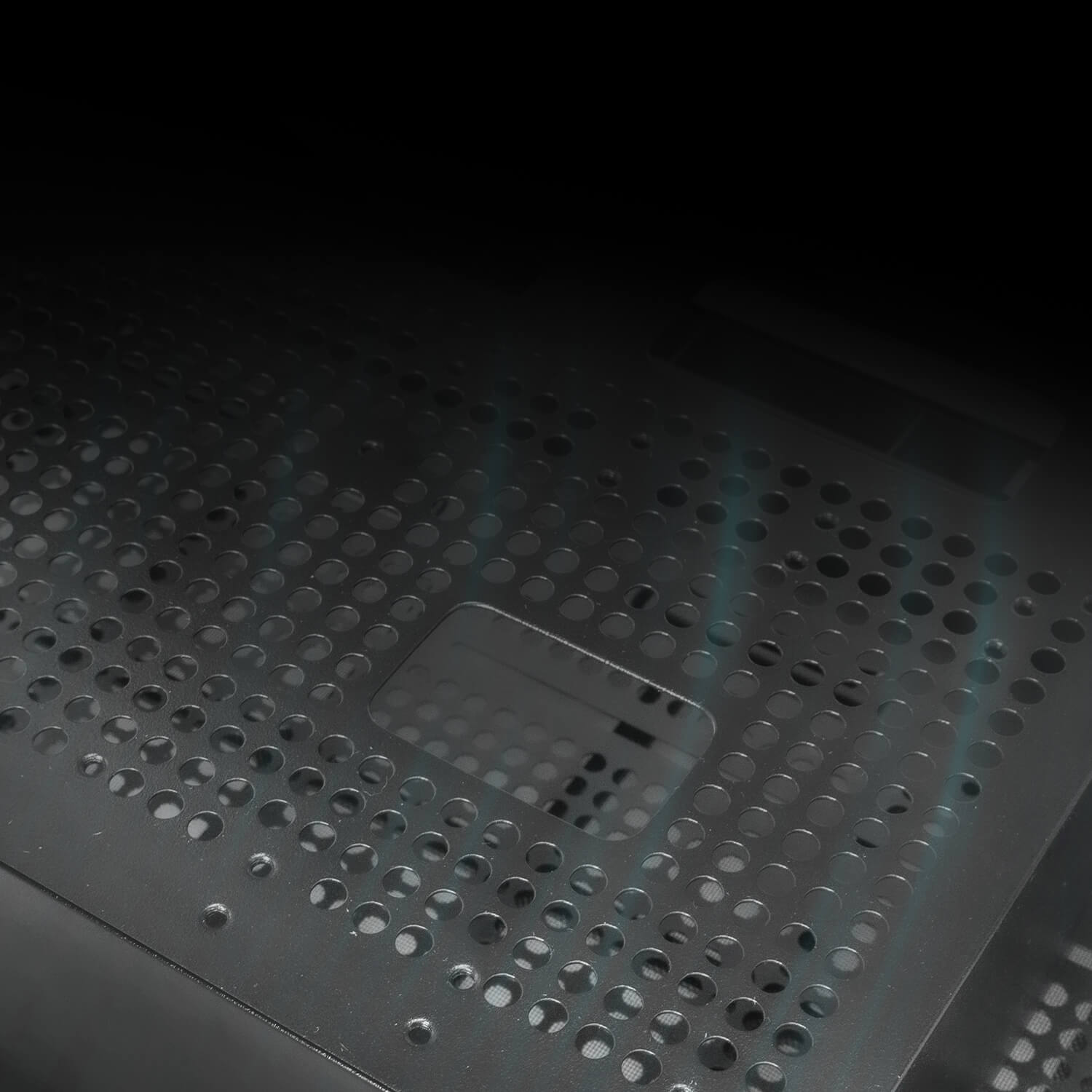

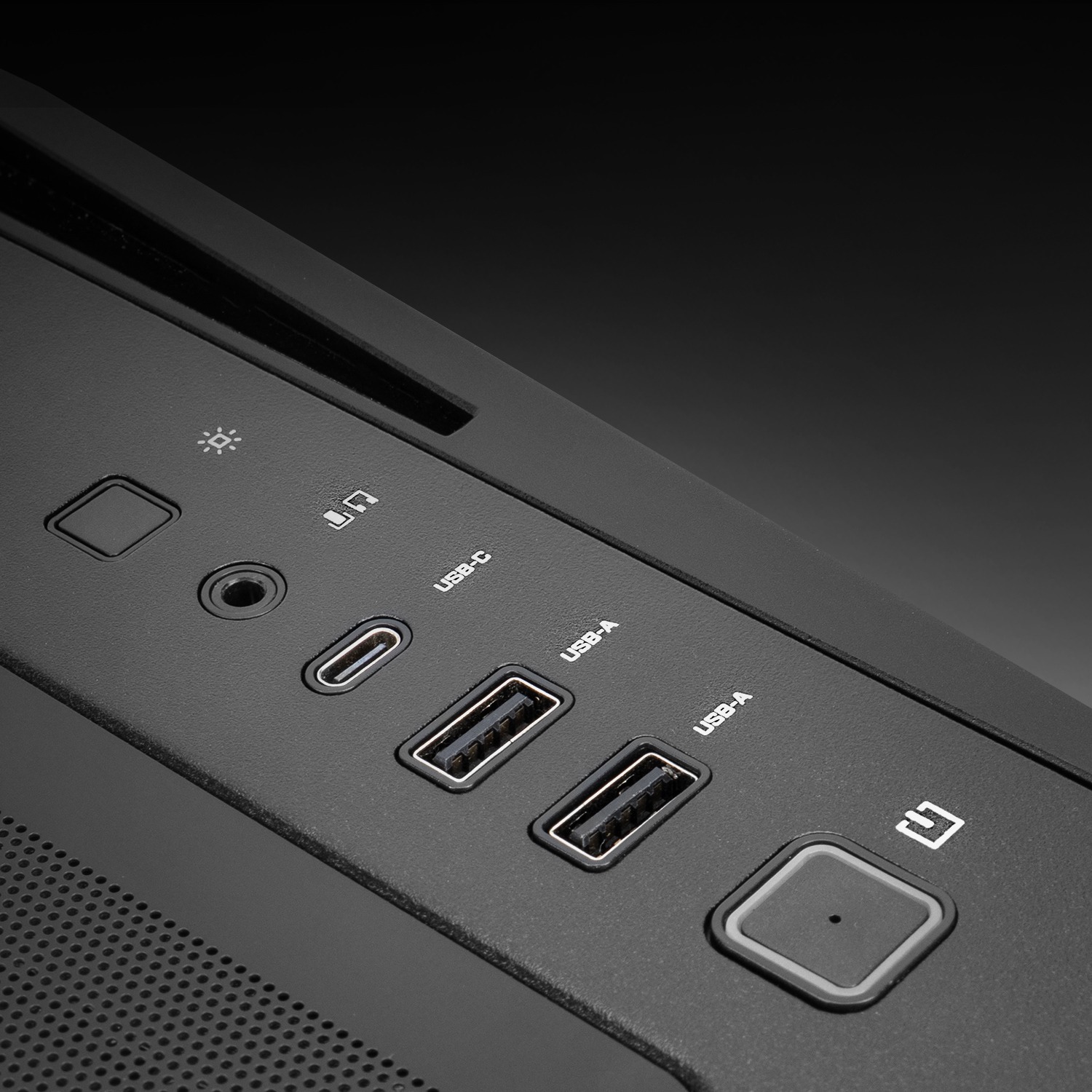

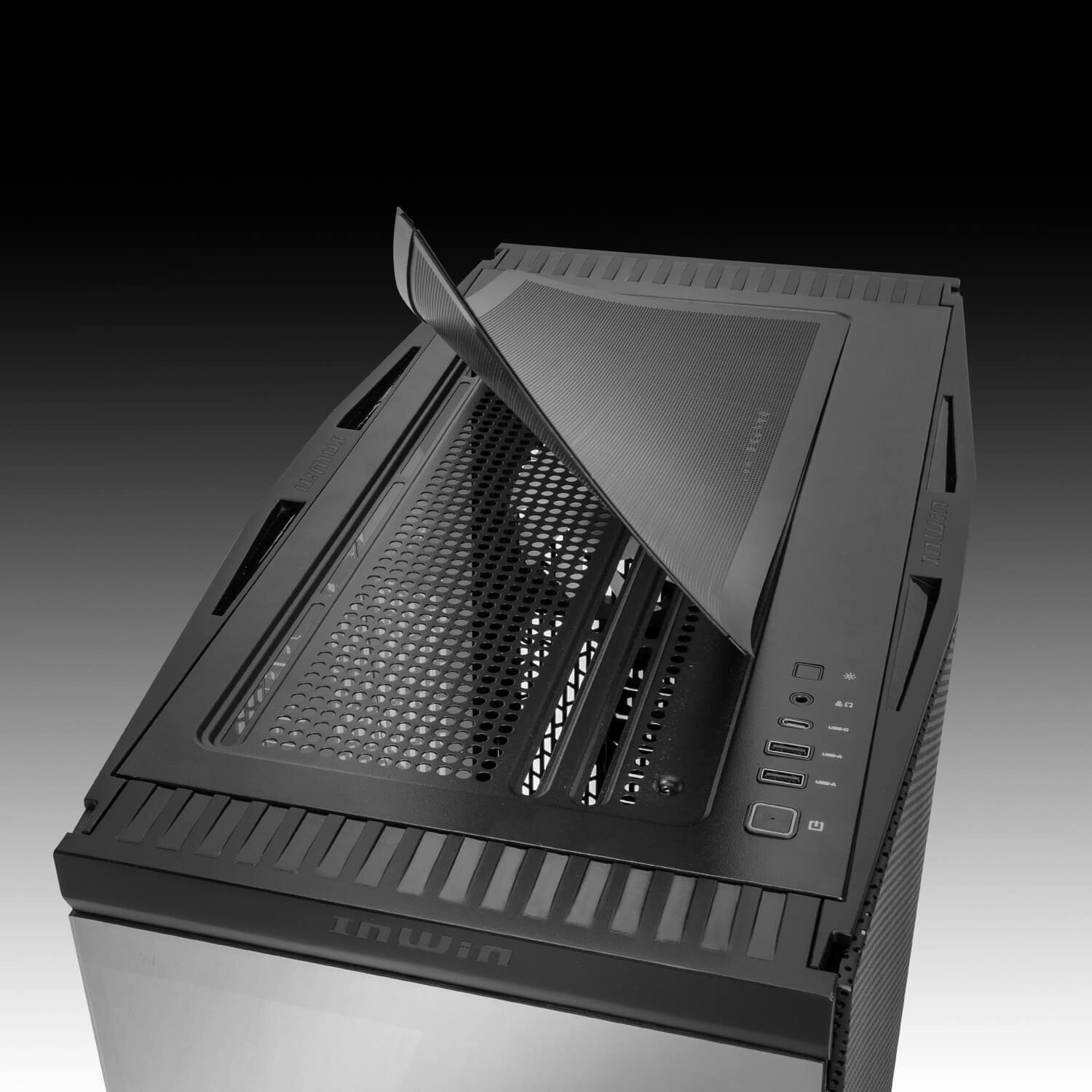

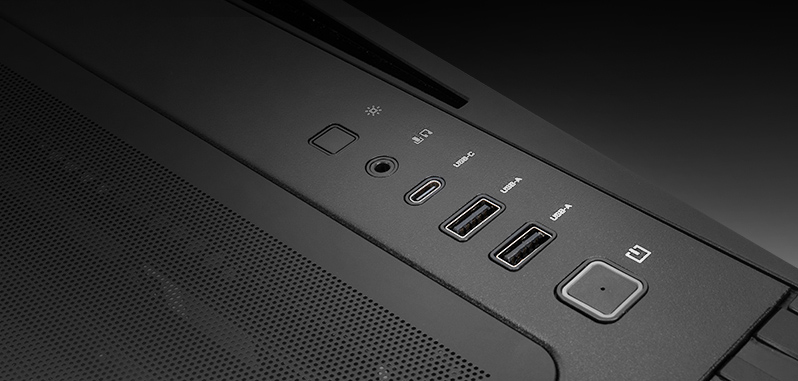

Ultra-fine magnetic dust filters (top, side, and pull-out bottom) keep your system clean and maintenance simple. Features include a ventilated PSU shroud with a dedicated GPU power cable pass-through, an integrated ARGB hub for sync-ready lighting, and modern top I/O ports for everyday convenience.
| Model | W50 |
|---|---|
| Model Number | IW-CS-W50BLK-4VX120 |
| Color | Black |
| Case Type | Mid Tower |
| Materials | SPCC, Tempered Glass |
| M/B Compatibility | 12" x 10.9" E-ATX ( 305 x 277 mm ), ATX, Micro-ATX, Mini-ITX |
| Expansion Slots | 8 x PCIe |
| Maximum Compatibility | GPU Length: 435 mm CPU Heatsink Height: 175 mm |
| I/O Ports | 1 x USB 3.2 Gen 2x2 Type-C (20 Gbps) 2 x USB 3.2 Gen 1 HD Audio (CTIA - SPK/MIC) LED Lighting Control Switch Power Button |
| Internal Drive Bays | 2 x 3.5" & 2 x 2.5" |

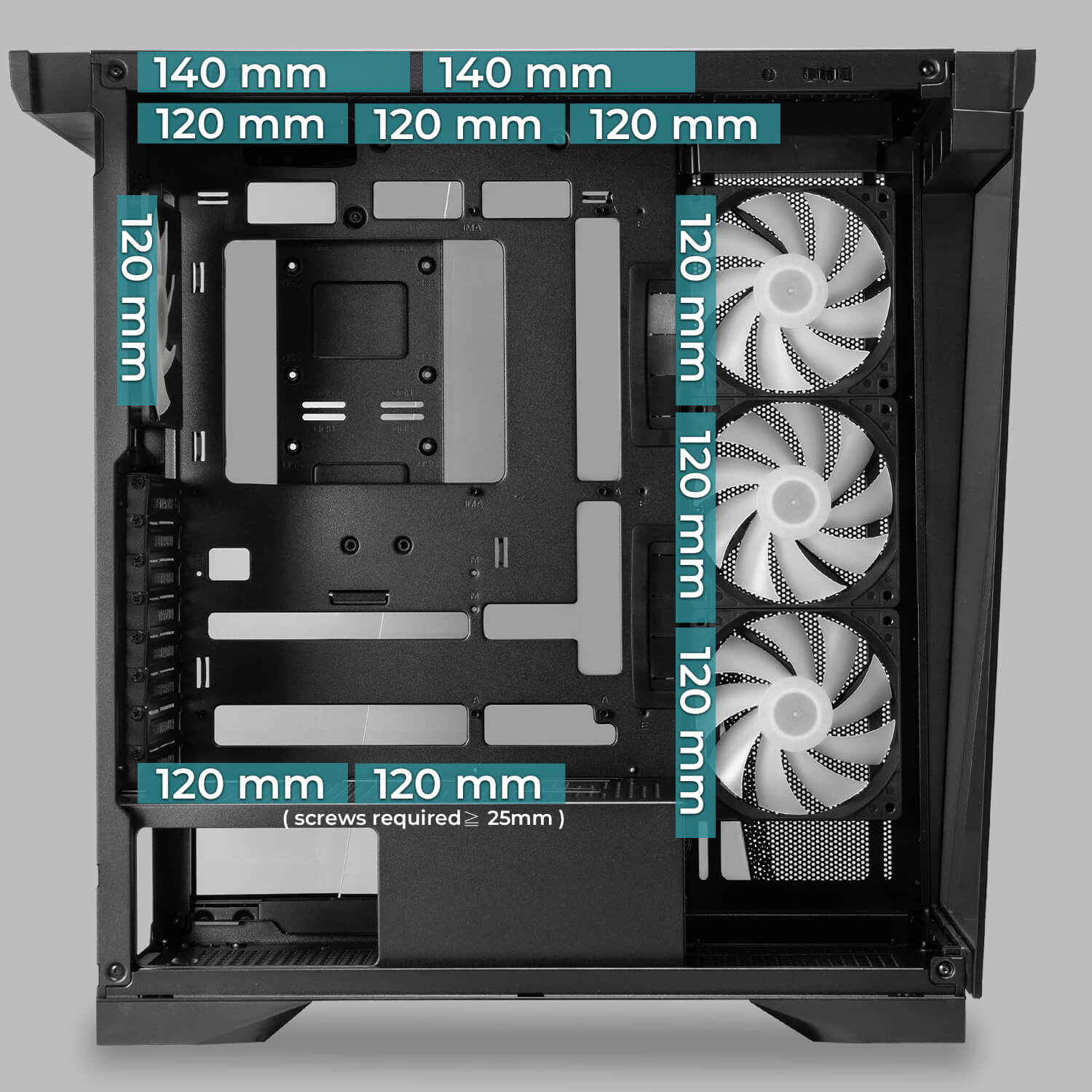

| Thermal Solution Compatibility | Air Cooling Fans: Top: 3 x 120 / 2 x 140 mm Rear: 1 x 120 mm (VX120 pre-installed) Bottom: 2 x 120 mm ( screws required≧ 25mm ) Side: 3 x 120 mm (VX120 pre-installed) Water Cooling Radiators: Top: 1 x 240/ 280 / 360 mm Rear: 1 x 120 mm Side: 1 x 240 / 360 mm |

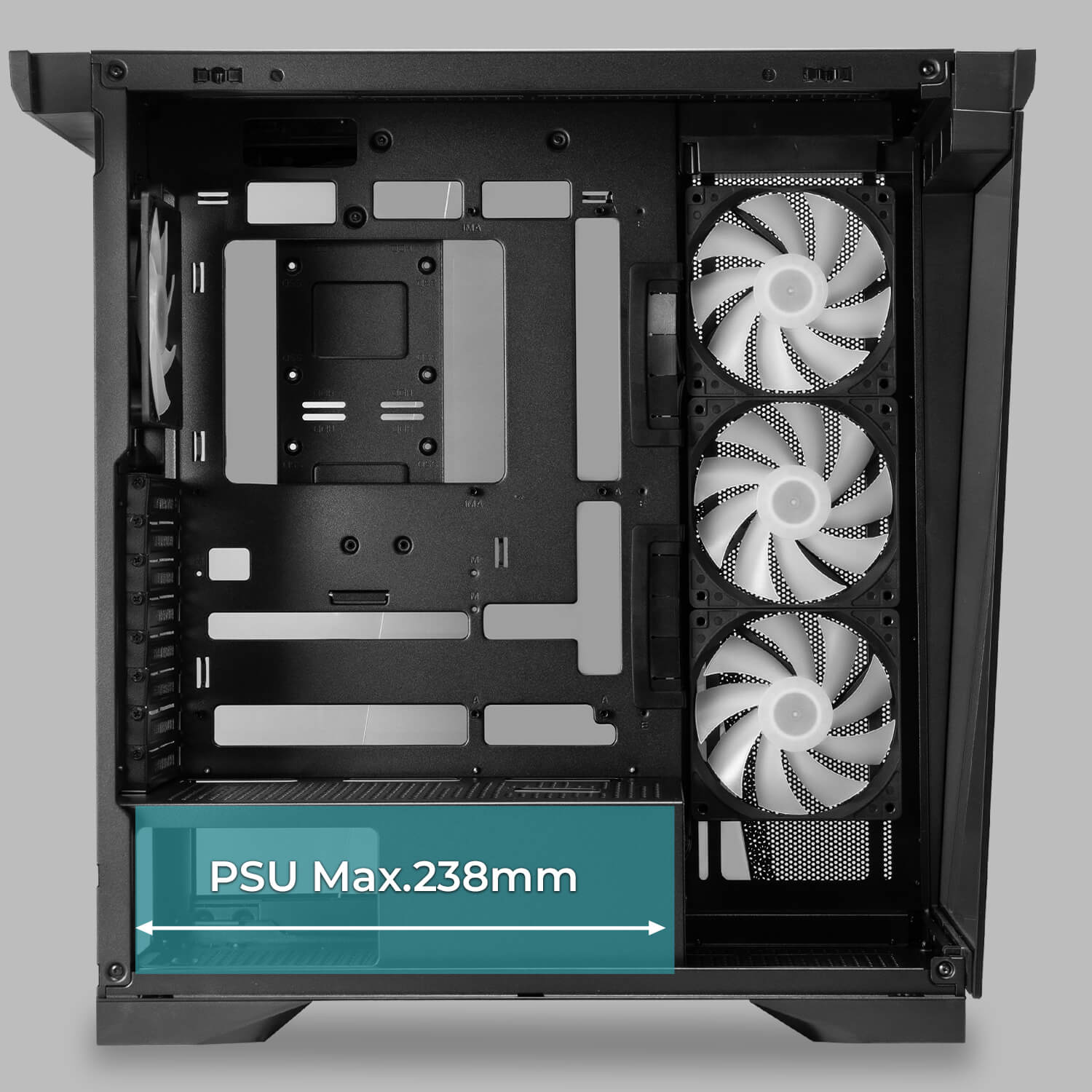

| Power Supply Compatibility | PSII: ATX12V - Length up to 238 mm |

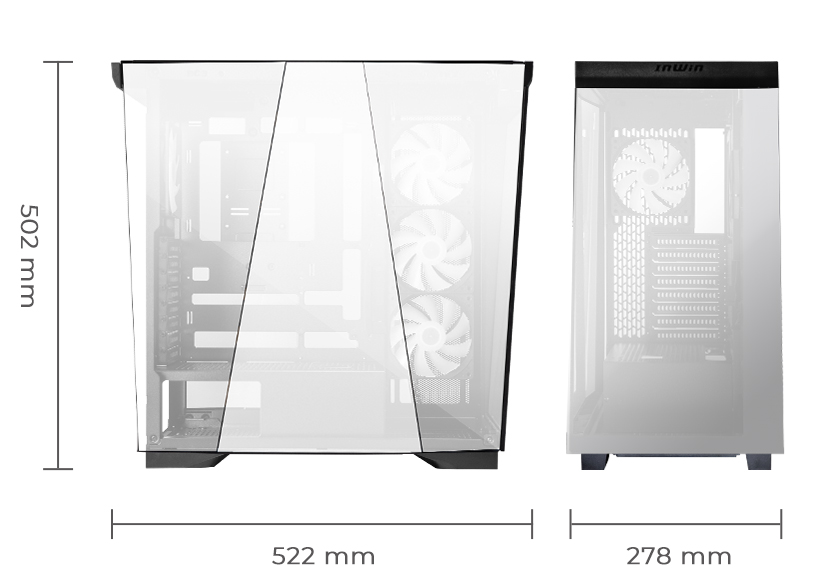

| Product Dimensions (L x W x H) |
522 x 278 x 502 mm 20.5 x 10.9 x 19.7" |
| Package Dimensions (L x W x H) |
563 x 365 x 631 mm 22.1 x 14.3 x 24.8" |
| Net Weight | 11.15 kg /24.58 lbs |
| Gross Weight | 13.3 Kg /29.32 lbs |
| * InWin's products comply with RoHS regulation. * Specifications may vary based on different regions. |
|
The W50 carries InWin’s iconic W-series design language with a W-shaped panoramic tempered glass design. It combines showcase aesthetics, efficient cooling, and builder-friendly usability for high-end gaming and creator PC builds.
The W50 is a highly expandable panoramic mid-tower case designed for high-end gamers, content creators, AI developers, and workstation users who need strong hardware compatibility, efficient cooling, and a premium showcase design.

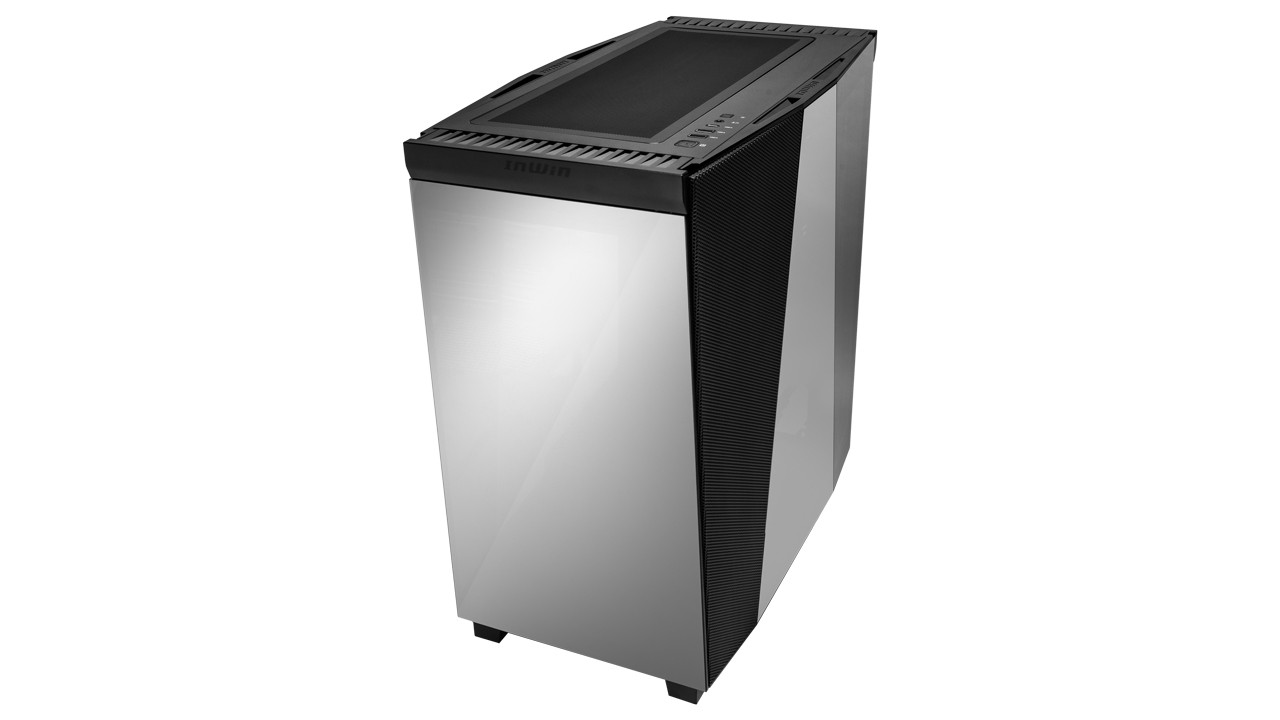

The W50 features InWin’s signature W-shaped joined tempered glass, creating a wide panoramic view of internal hardware and ARGB lighting. Its mirrored glass finish delivers a refined look whether the system is powered on or off.
The W50’s panoramic glass design showcases ARGB lighting from multiple angles. With an integrated ARGB hub and top LED control button, users can switch lighting effects or synchronize lighting with the motherboard.
The W50 comes with four InWin VORTEX VX120 ARGB PWM fans, supports up to nine fans, and accommodates up to 360mm radiators on the top and side, providing flexible and stable cooling performance.

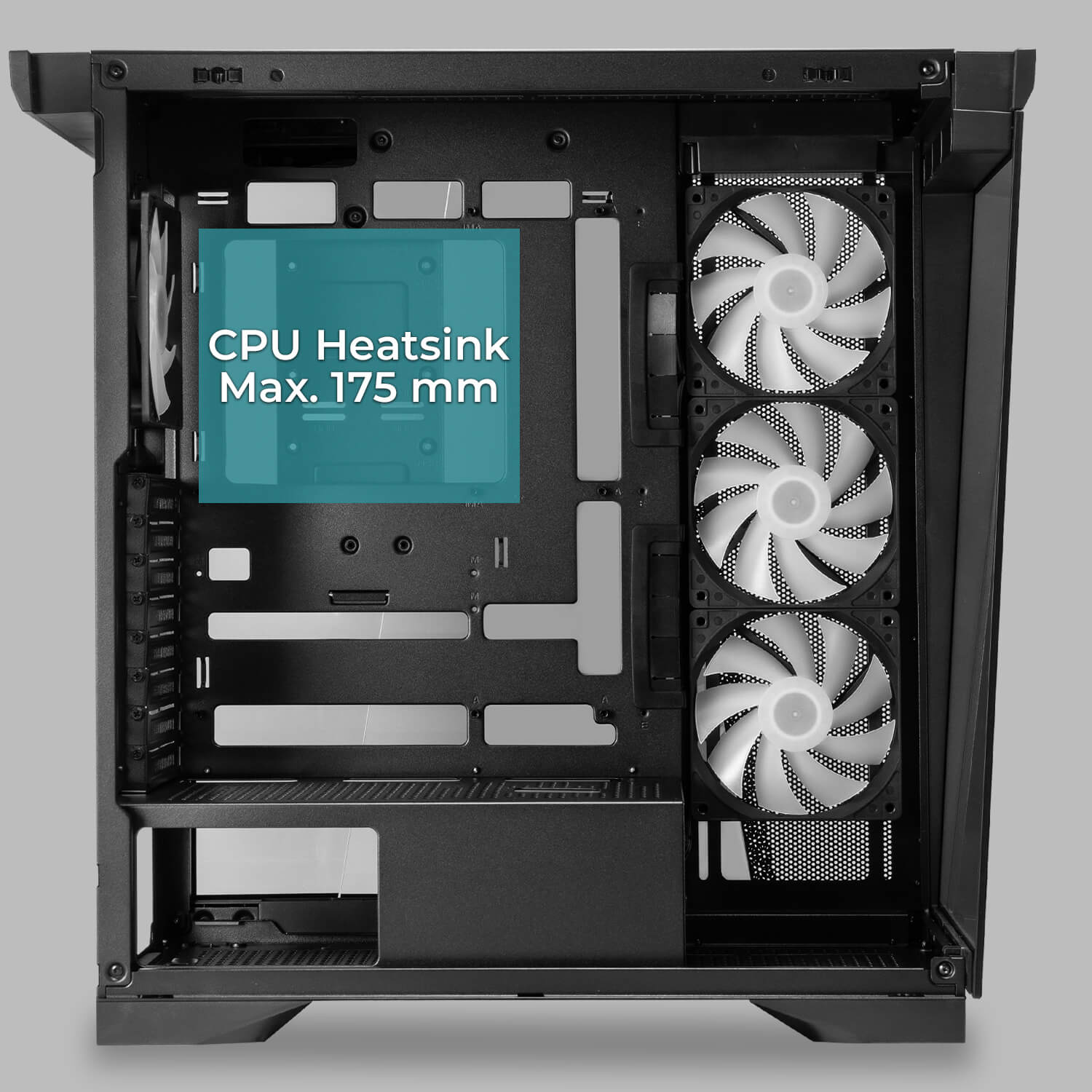

The W50 supports E-ATX (12" × 10.9"), ATX, Micro-ATX, and Mini-ITX motherboards, graphics cards up to 435mm, CPU coolers up to 175mm, ATX power supplies up to 238mm, and eight PCIe expansion slots.
