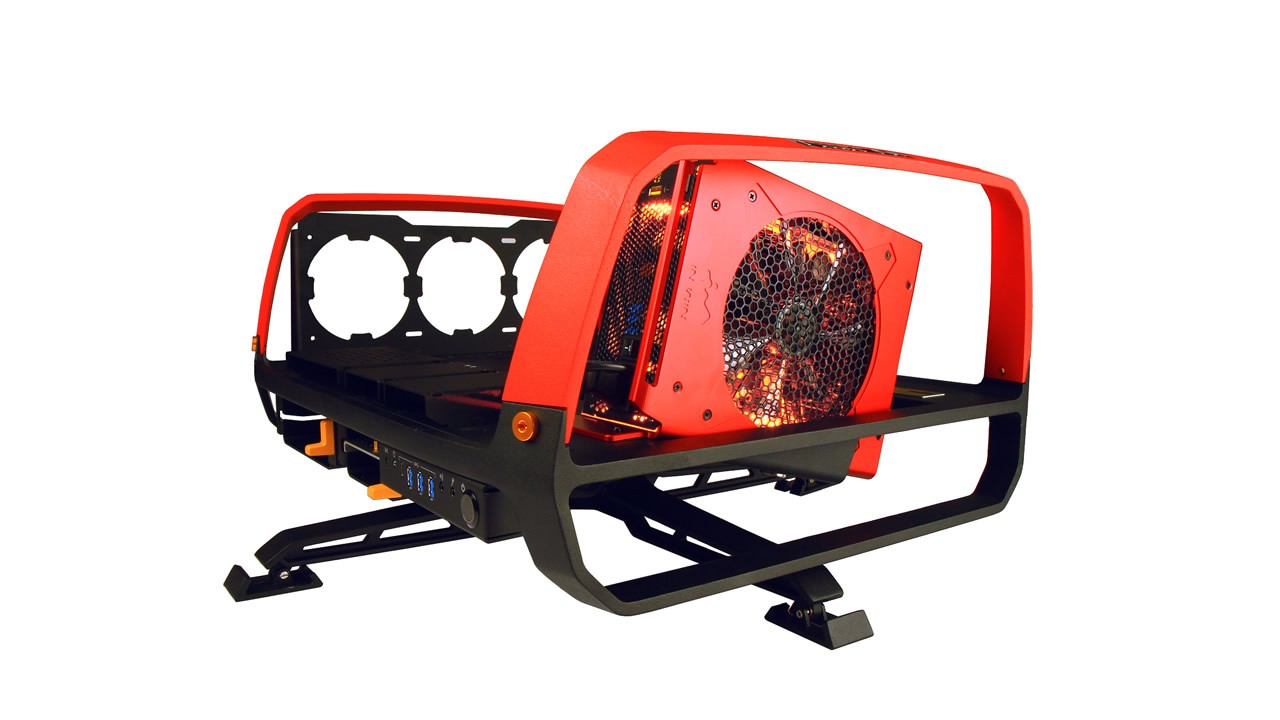

X-Frame 2.0
*

X-Frame 2.0: PC Power Revealed!

The X-Frame 2.0 inherits the spirit of the original X-Frame by serving as a test bench for professional users. The X-Frame 2.0 is bundled with an In Win branded signature power supply, the SI-1065W. Its open-frame and full 360 degree free-rotating design provides the ultimate flexibility for professional users.

*

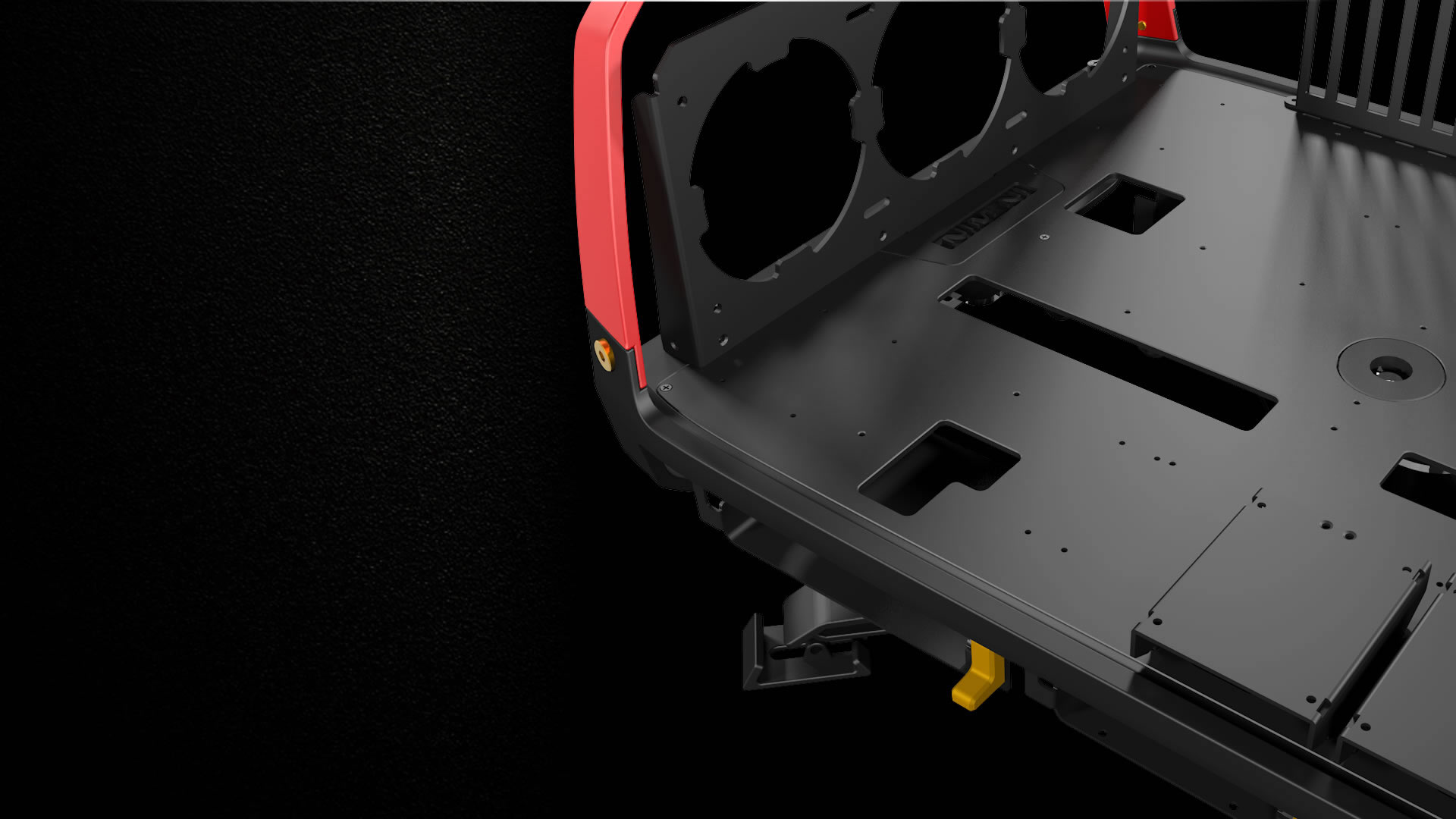

Test Bench Design for Easy Installation and Removal

There is no limit for professional users to display their build! Breaking through the traditional closed chassis barrier, the X-Frame 2.0’s metal structure is designed to serve the purpose of a test bench for professional users. Professional users can display their hardware from any angle and upgrade their rigs quickly and with ease.

*
* * *
*

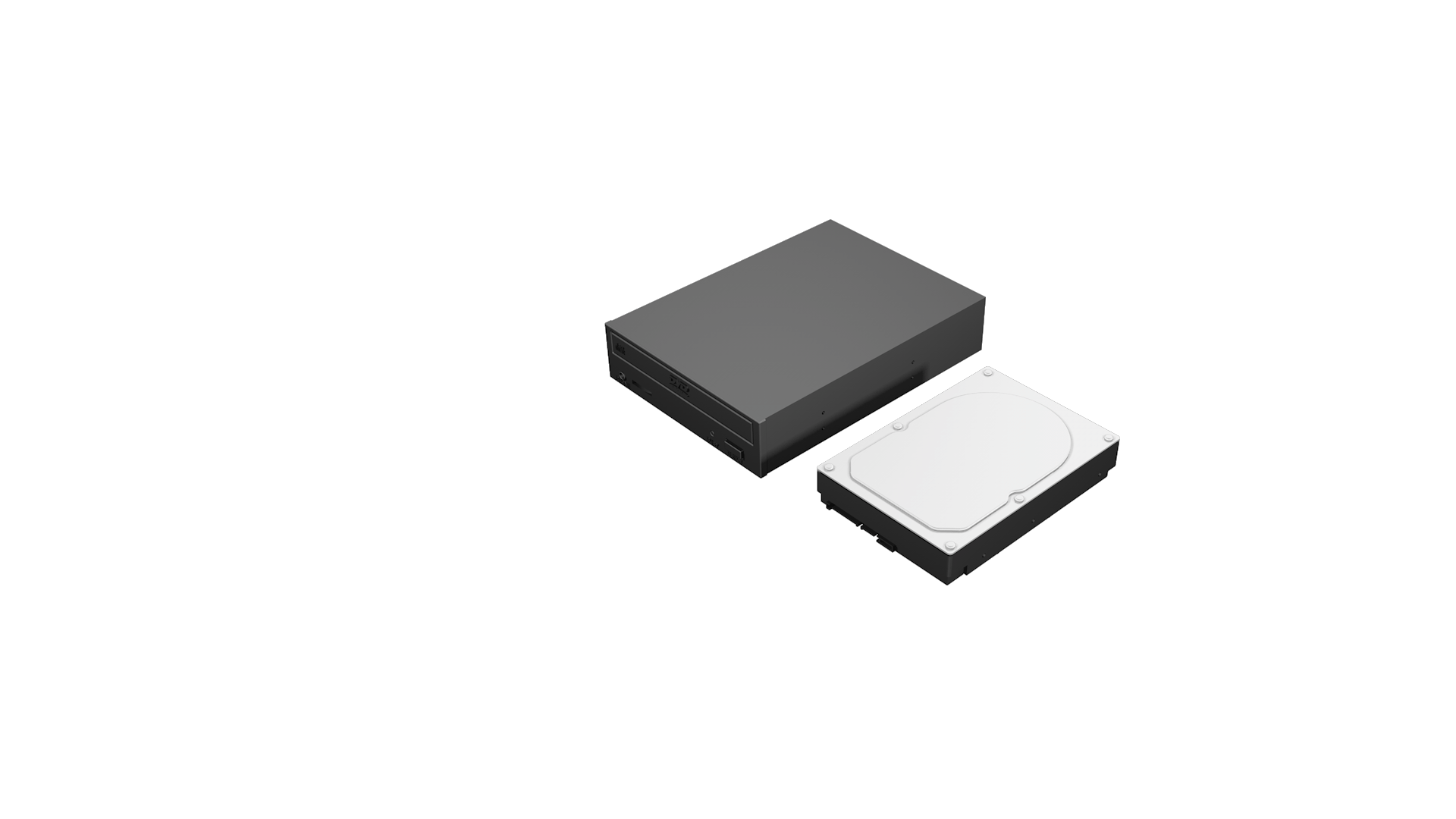

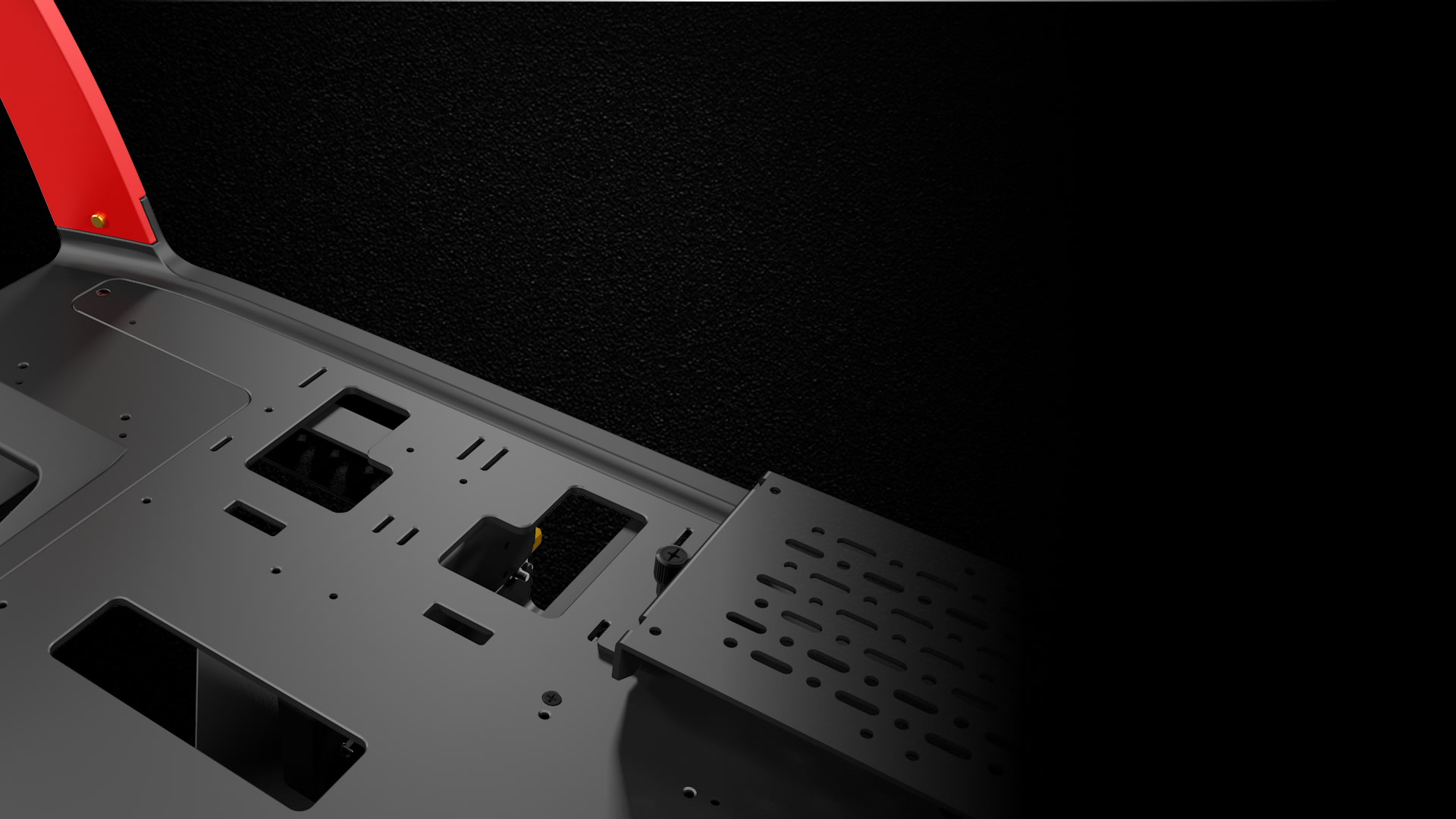

Mounting Bracket for 2.5” SSD and Water Pump

*
* *
*

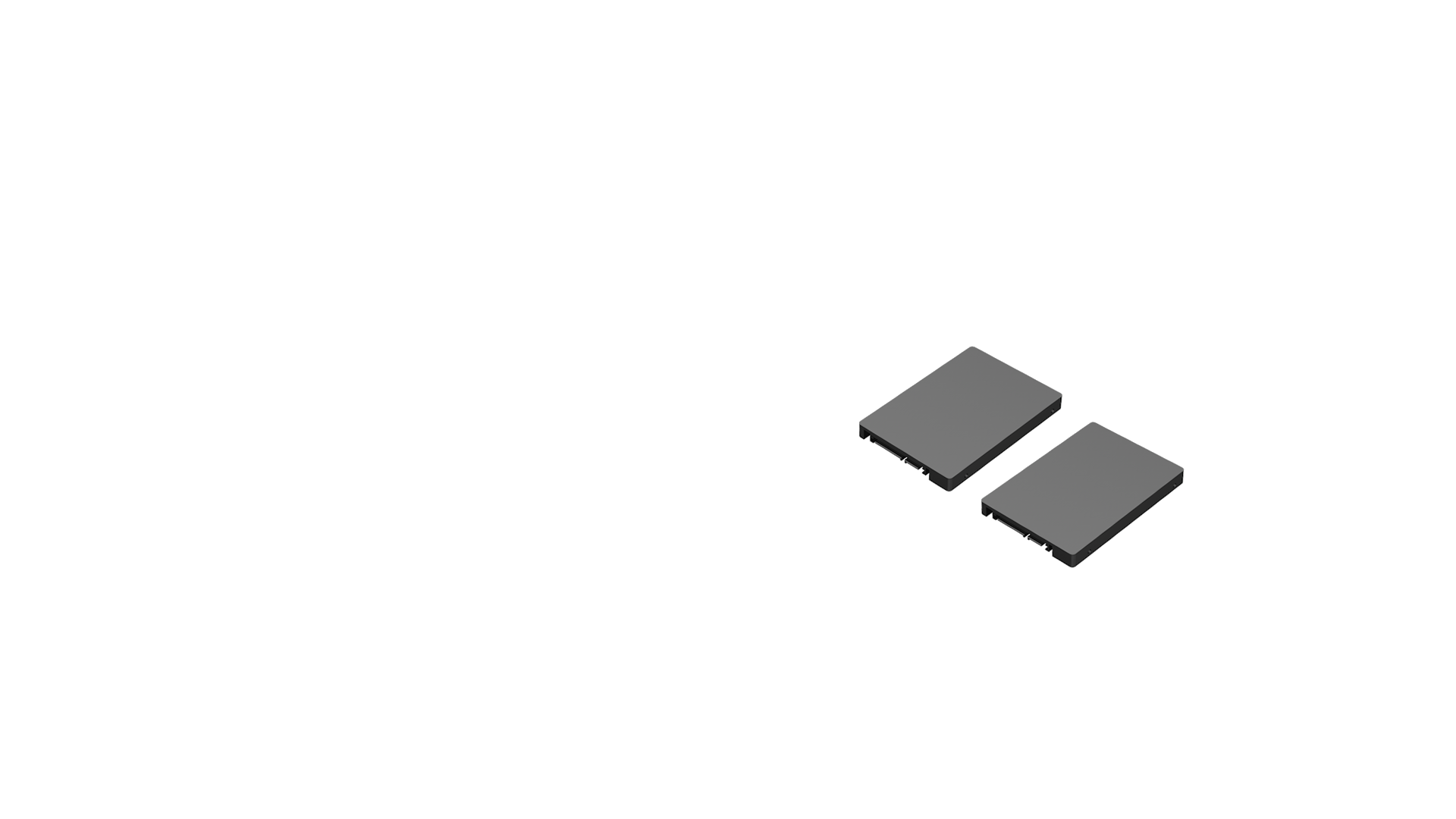

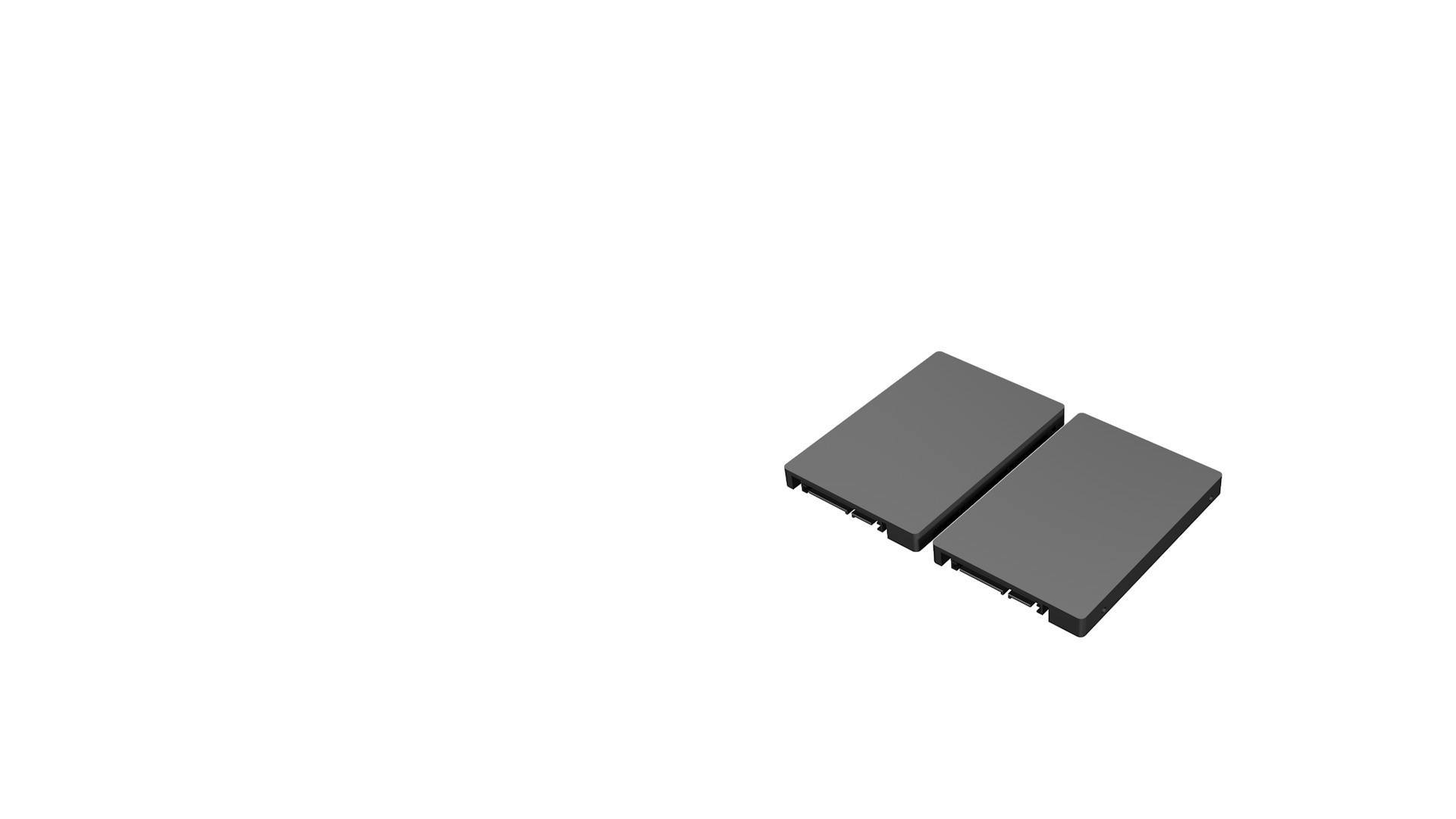

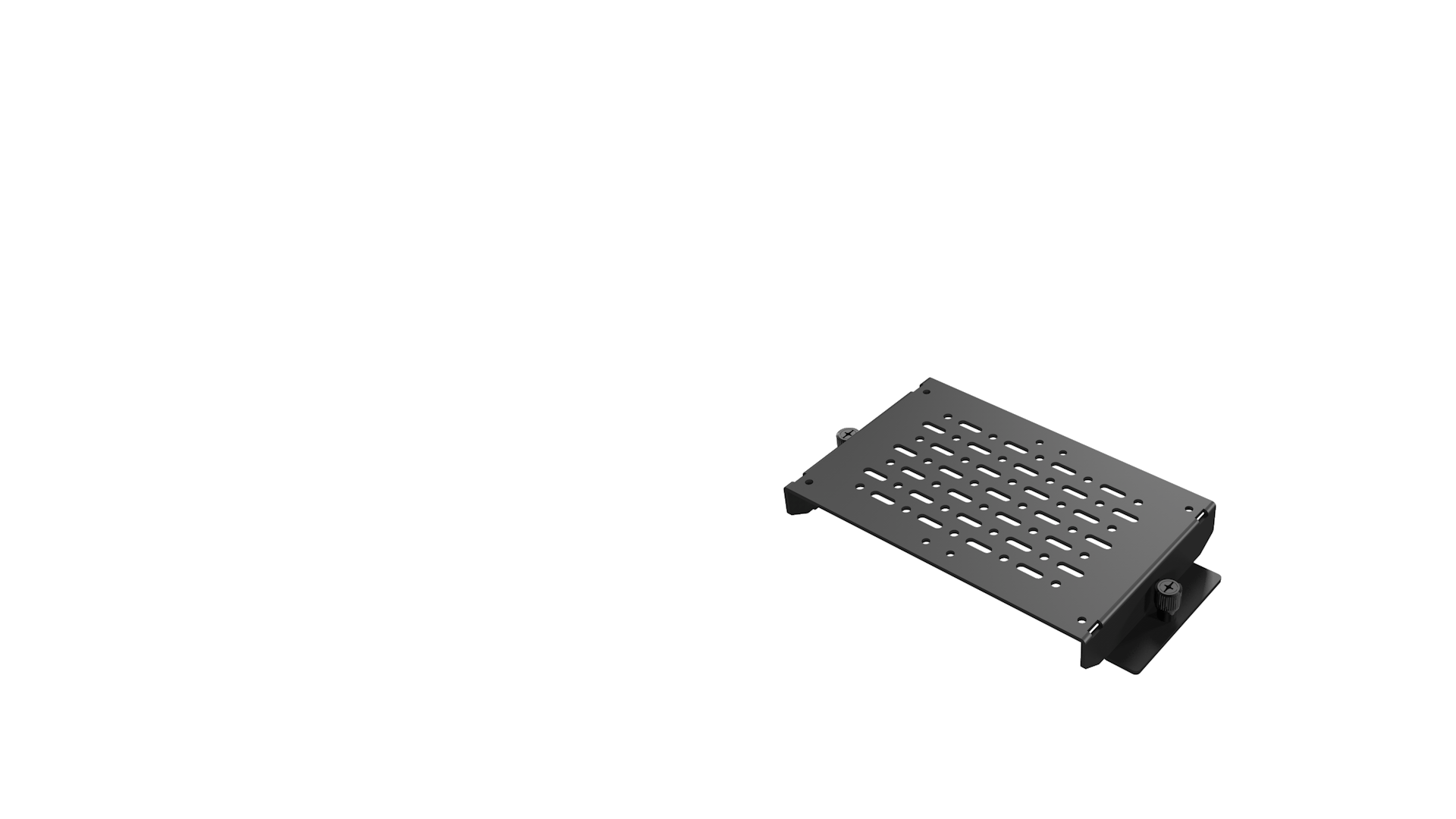

Quick-Release 2.5” SSD Bracket

*

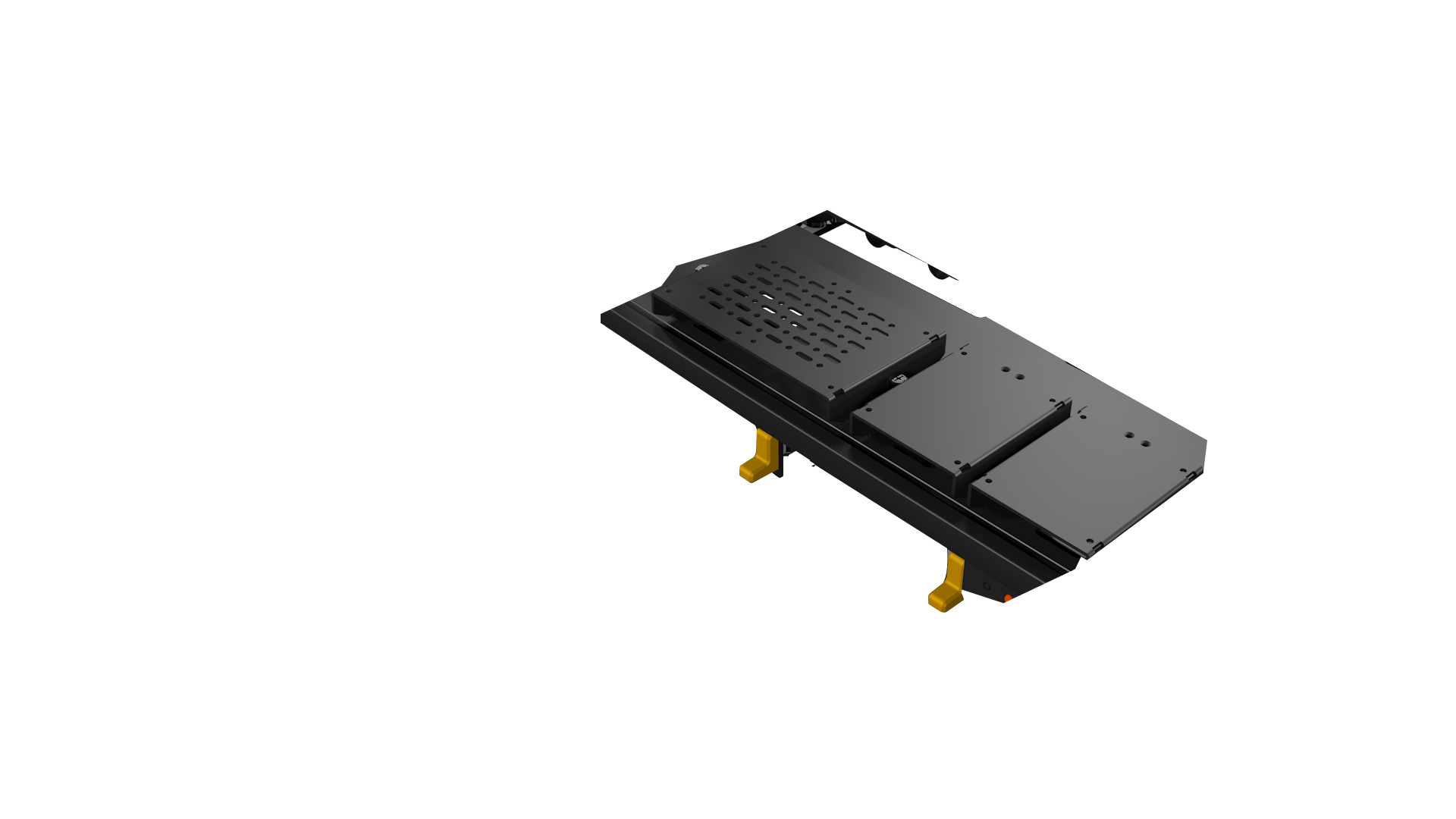

A. 5.25" ODD

B. Slide-in 2.5"/3.5" Multifunctional HDD Tray

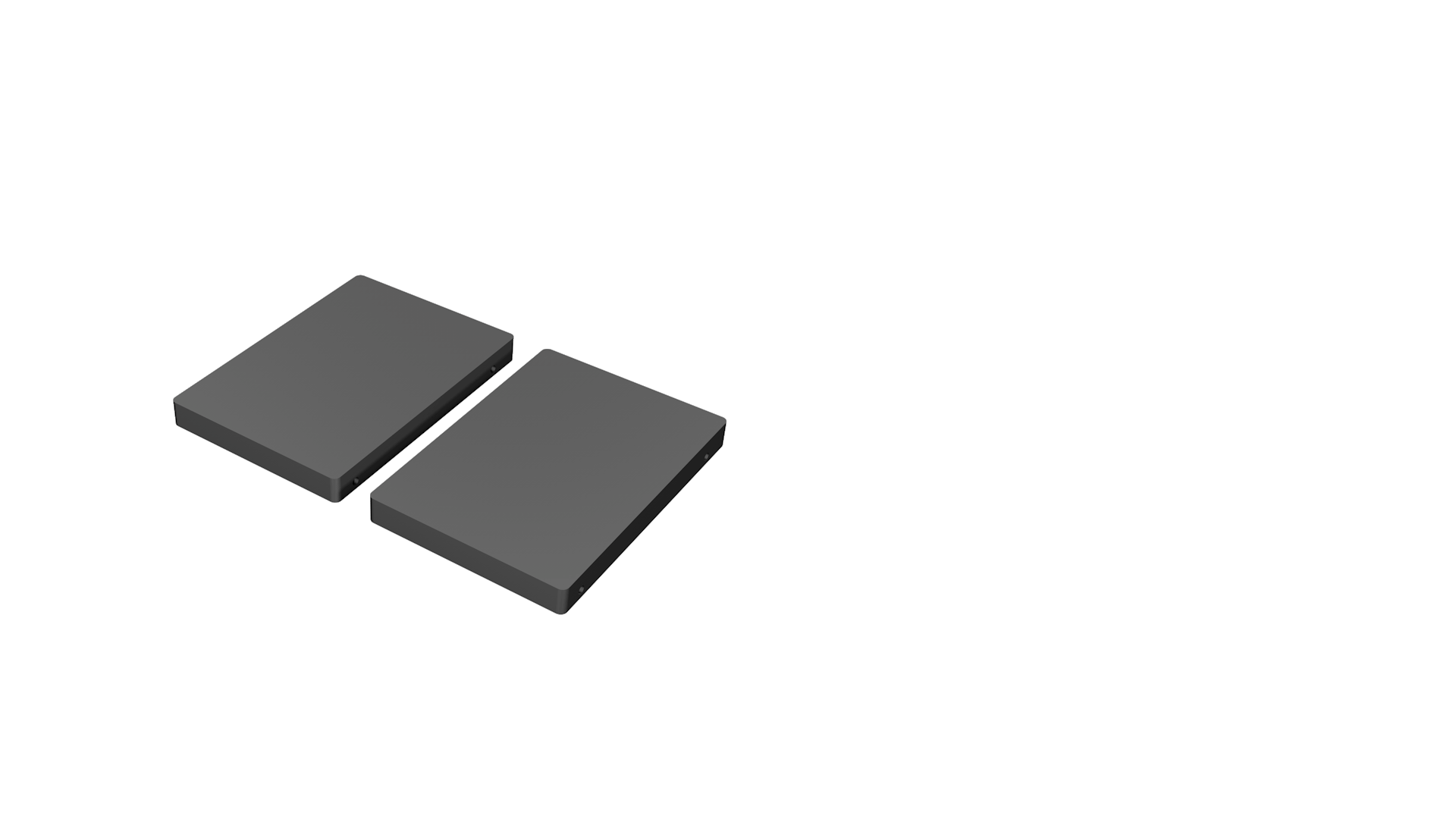

C. 2.5" SSD/ HDD

*
*
*

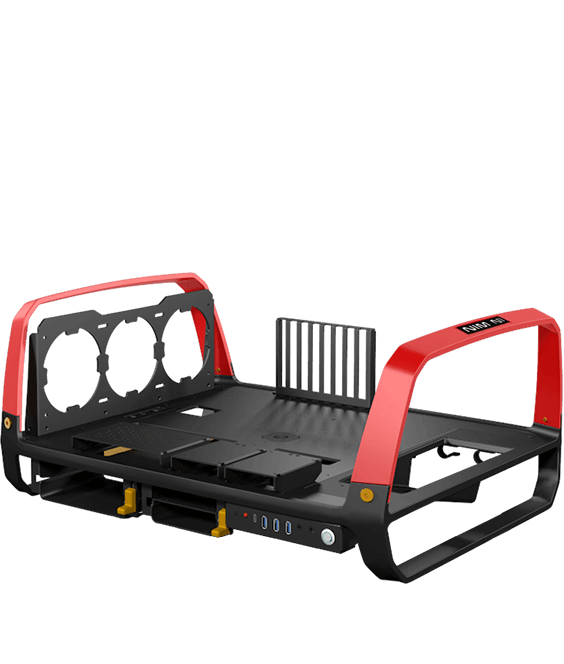

Dual Orientation with 360° Rotation for Maximum Flexibility

The X-Frame 2.0 has a detachable rotating stand to lay or stand the complete build. Users can assemble their rigs when they are seated at just about any position. Builds can be placed horizontally or vertically at each 15 degree.

*
*

* The actual transfer rate depends on the motherboard specification.

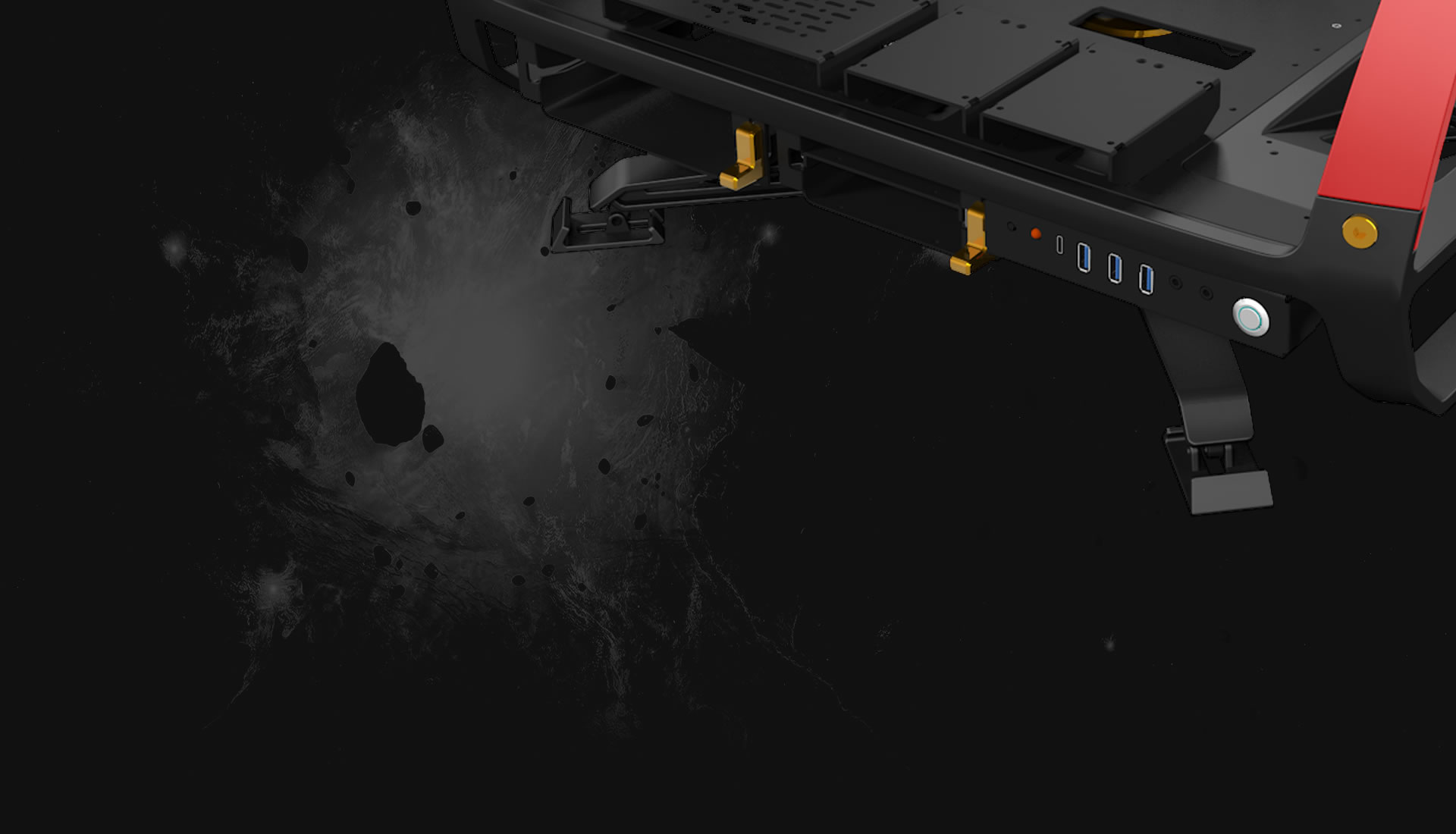

Supports the Latest USB 3.1 Gen1 Type-C

The newest USB 3.1 Gen1 Type-C is featured in X-Frame 2.0. Experience the rapid transfer speeds, and the convenience of the reversible Type-C connector.

Wield the Latest and Greatest Hardware

The X-Frame 2.0 is armed with 8mm thick aluminium handles to ensure safe transportation with the precious hardware. Plenty of room to offered to let users create ultimate gaming systems with superb ventilation.

*
*
360mm Radiator with 3 x 120mm Fans: Width up to 85mm
*
*
Graphic Card Max. Length: 385mm
*
*
CUP Heatsink height: Infinite
*
*
*

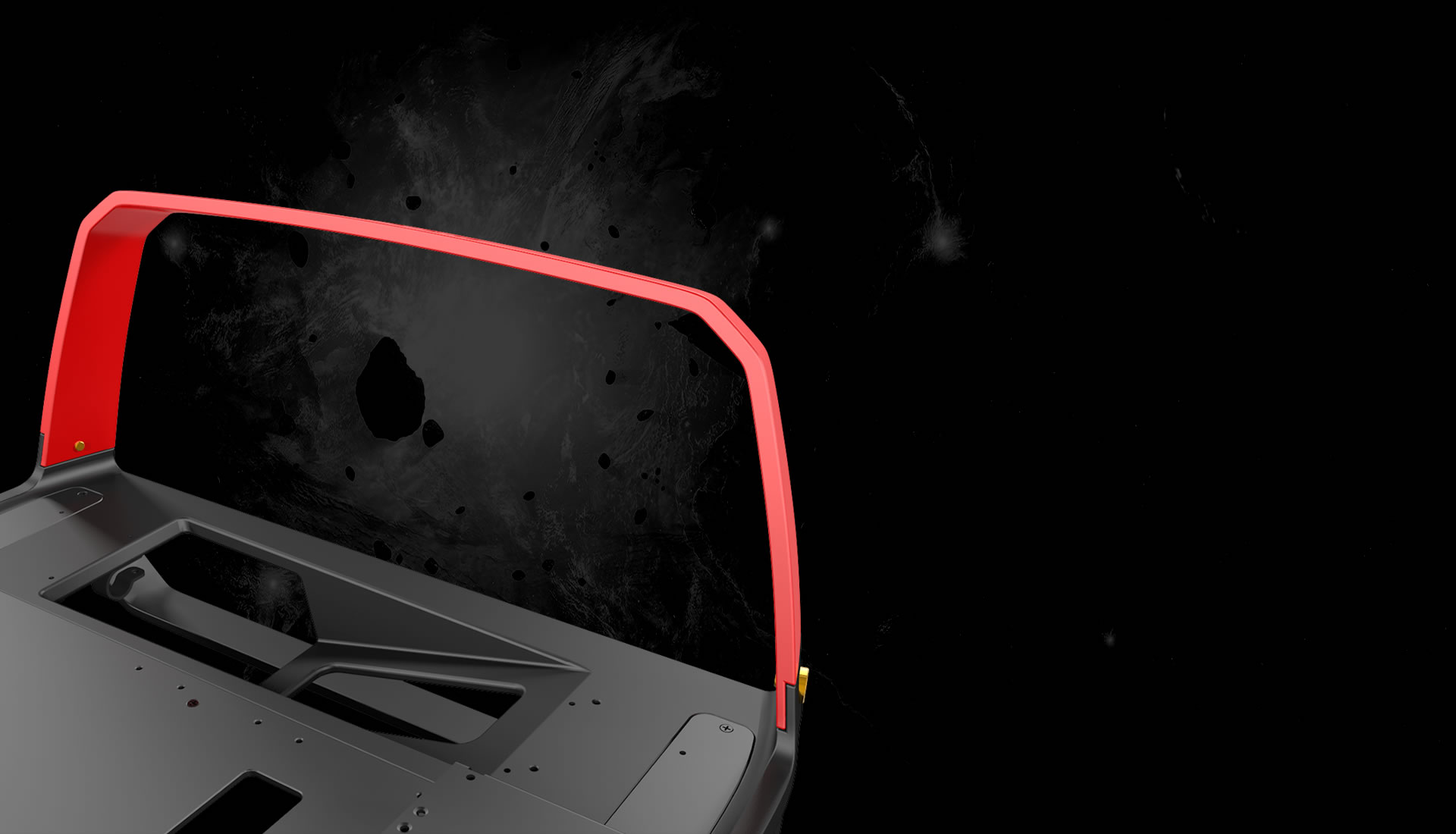

2.0: Whole New Generation

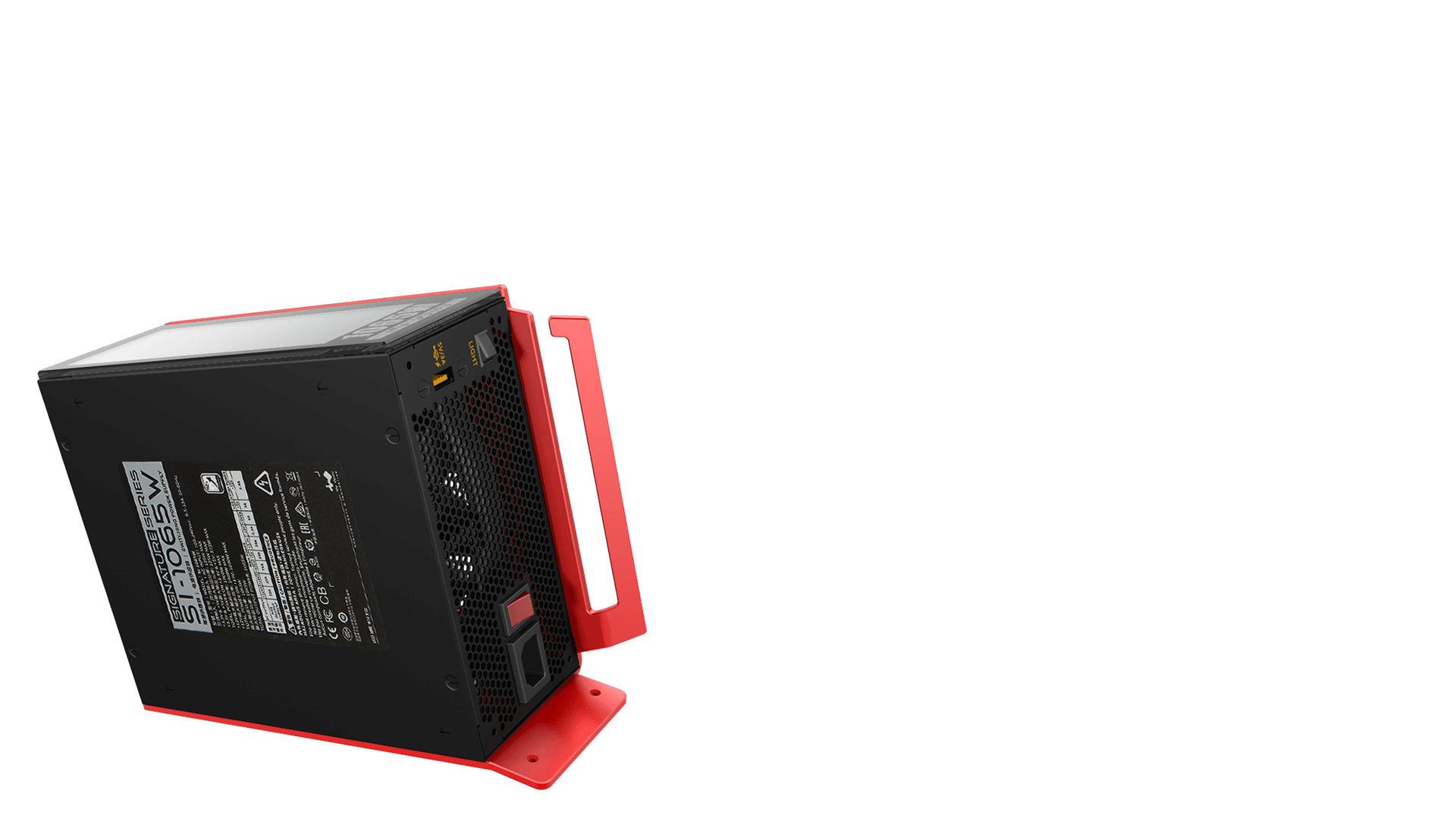

To celebrate In Win’s 30th anniversary, In Win created the Case + Power Supply limited edition bundle. Each X-Frame 2.0 includes a SI-1065W power supply, which is exclusively designed for the X-Frame 2.0.

*

Select Your Battle Station Theme

The X-Frame 2.0 offers three different color options: Black/ Red, White/ Blue and Black/ Green. You can choose a variety of colors to create the ultimate themed battlestation.

*
*

Black/Red

*
*

White/Blue

*
*

Black/Green

Specifications

Model X-Frame 2.0
Color Black / Red, White / Blue, Black / Green
Case Type Open Air Chassis
Case Material Aluminium
M/B Compatibility 12" x 13" E-ATX, ATX, Micro-ATX, Mini-ITX
Expansion Slots PCI-E x 8
Maximum Compatibility VGA Card Length: 385mm
CPU Heatsink Height: Infinite
Front Ports 3 x USB 3.0
1 x USB 3.1 Type-C
HD Audio
Drive Bays 1 x 5.25",  3 x 2.5"/3.5" , 3 x 3.5", 7x 2.5"
Thermal Solution Compatibility 3 x 120mm Side Fan/ 360mm Side Radiators
Power Supply Compatibility SI-1065W Internal PSU Included ATX12V and EPS12V
- Length up to 245mm

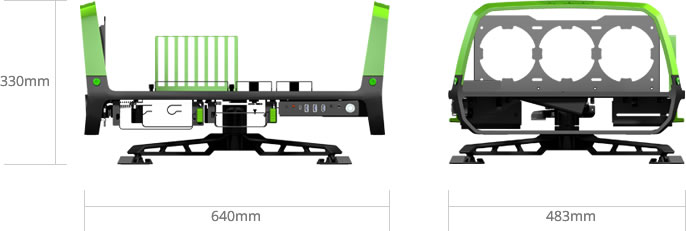

Product Dimension
(H x W x D)
640 x 483 x 330mm
24.8" x 19“x 13"
Package Dimension
(H x W x D)
744 x 612 x 440mm
29.3" x 24.1" x 17.3"
Net Weight 15.5 kg/ 34.1lbs
Gross Weight 19.85kg/ 43.7lbs
* Our products comply with RoHS regulations.
* Specifications may vary based on different regions.
