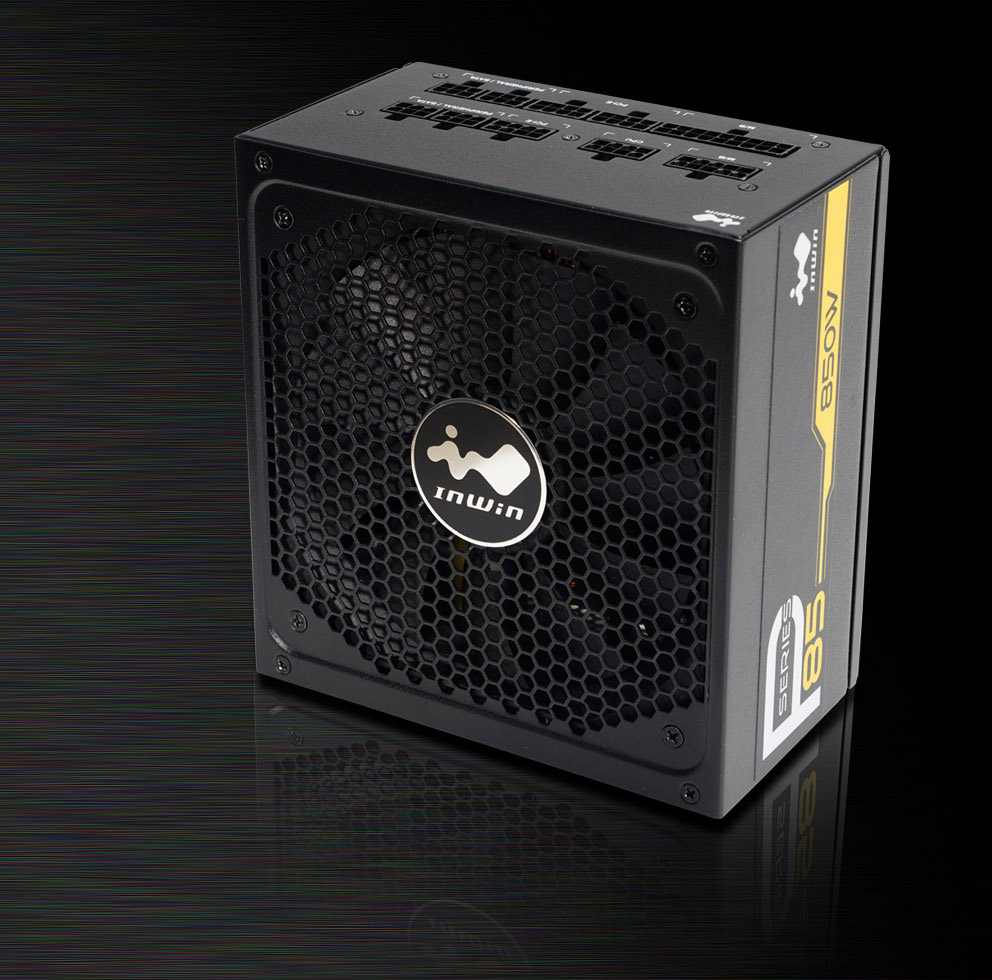

The P Series is an 80 PLUS®Gold certified power supply that focuses its features on efficiency,
reliability and overall PC building experience.
The P Series’ low noise output makes this PSU the optimal choice for most PC builds.
The P Series is an 80 PLUS®Gold certified power supply that focuses its features on efficiency,
reliability and overall PC building experience.
The P Series’ low noise output makes this PSU the optimal choice for most PC builds.
The P Series features a smart temperature-controlled fan. Built-in control modes uses three temperature ranges and automatically detects the output power to adjust the fan speed accordingly. This will maintain the power supply’s stability and noise levels.
System Load < 20%
Zero RPM Fan Mode
When the system is under 20% load, the fan will automatically stop running to effectively reduce the system’s noise and lengthen the longevity of the fan.
System Load > 20%
Cooling Mode
When the system is above 20% load, the fan will automatically turn on to maintain optimal cooling.
Shut Down 60Sec.
Shut Down Cooling Mode
When the system is shutting down, the fan will continue to operate for 60 seconds to effectively remove residual heat.
The P Series features a smart temperature-controlled fan. Built-in control modes uses three temperature ranges and automatically detects the output power to adjust the fan speed accordingly. This will maintain the power supply’s stability and noise levels.
Zero RPM Fan Mode
Cooling Mode
Shut Down Cooling Mode
Zero RPM Fan Mode
When the system is under 20% load, the fan will automatically stop running
to effectively reduce the system’s noise and lengthen the longevity of the fan.
Cooling Mode
When the system is above 20% load,
the fan will automatically turn on to maintain optimal cooling.
Shut Down Cooling Mode
When the system is shutting down, the fan will continue to operate for 60 seconds
to effectively remove residual heat.
The P Series delivers up to 90% efficiency, generating less heat and effectively reducing operating cost.

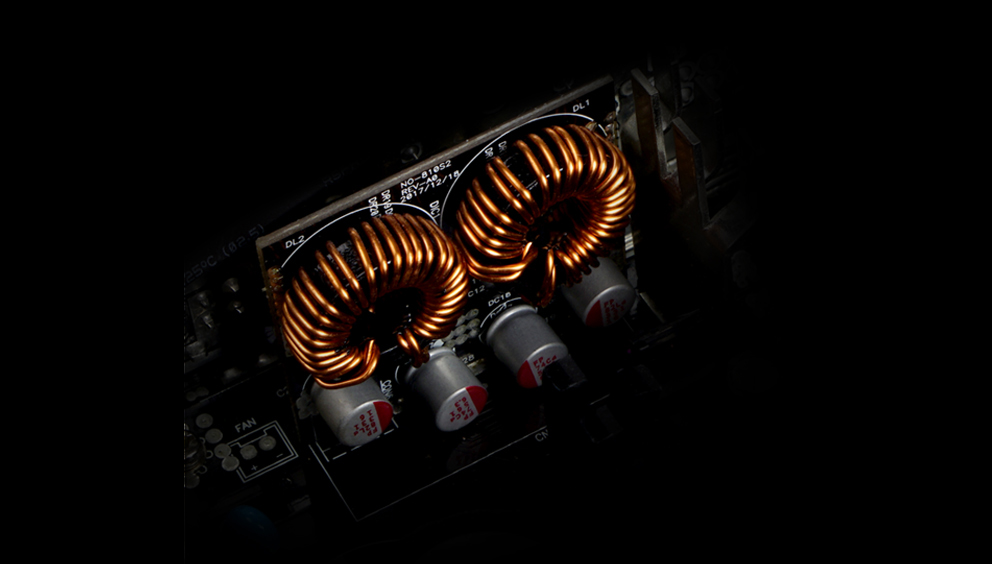

The P Series is equipped with a DC to DC converter design, that provides a superior dynamic response, and supports a foundation for greater system stability.

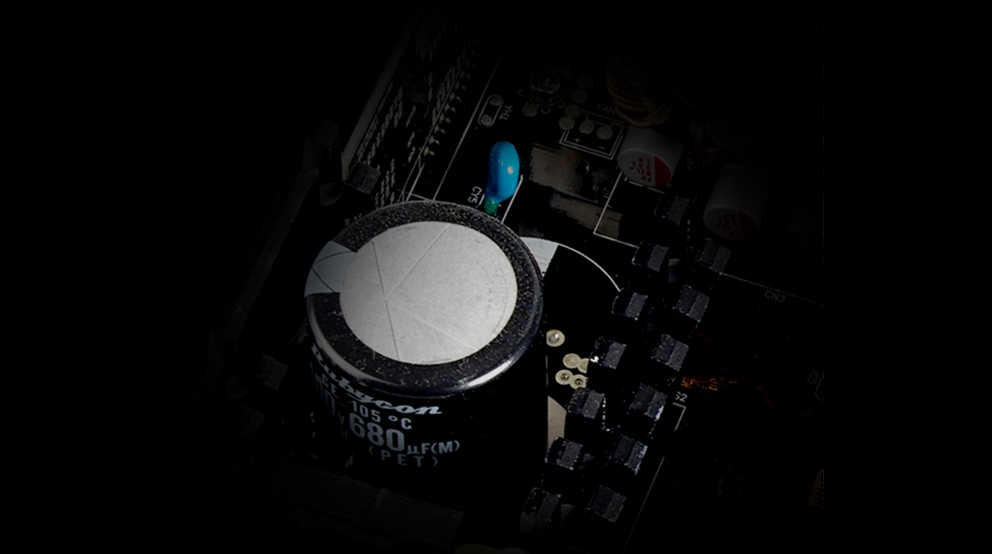

Premium Japanese capacitors with 105°C rating improves power stability at higher temperatures and provides an ultra-long lifespan.
The P Series comes with plenty of safety protections safeguards. These precautions are to ensure quality and a safe power usage.
The fully modular and flexible flat cables allow builders limits the cables present in a PC. Easier cable management results in cleaner builds with better airflow.
| Model | P65 | P75 | P85 | ||
|---|---|---|---|---|---|
| Model Number | IW-PS-P650W | IW-PS-P750W | IW-PS-P850W | ||
| Total Power | 650W | 750W | 850W | ||
| Material | SECC | ||||
| Type | ATX12V V2.4 EPS12V V2.92 |
||||
| Cable Management | Fully Modular | ||||
| PFC | Active PFC ( >0.95) | ||||
| Efficiency | 80 PLUS® Gold (Up to 90%) | ||||
| MTBF (Hours) | >100,000 hrs. | ||||
| AC Input | 100-240Vac.,10A, 50-60Hz | ||||
| Fan | 135mm FDB Fan | ||||
| Typical Load Fan Noise(dBA) (50% Loading) |
<25dBA | ||||
| Operating Temperature Range (°C) | 0~40 °C | ||||
| Full Protection | OCP/ OVP/ UVP/ SCP/ OTP/ OPP | ||||
| Safety Certifications | cTUVus/ TUV/ CB/ BSMI/ CE/ FCC/ EAC/ CCC/ RCM | ||||
| Dimensions (L x W x H) | 160 x 150 x 86mm | ||||
| Package Dimensions (L x W x H) | 210 x 325 x 100mm | ||||
| Net Weight | 2.35 kg | 2.46 kg | 2.64 kg | ||
| Gross Weight | 2.81 kg | 2.92 kg | 3.12 kg | ||
| Warranty | 5 Years | ||||

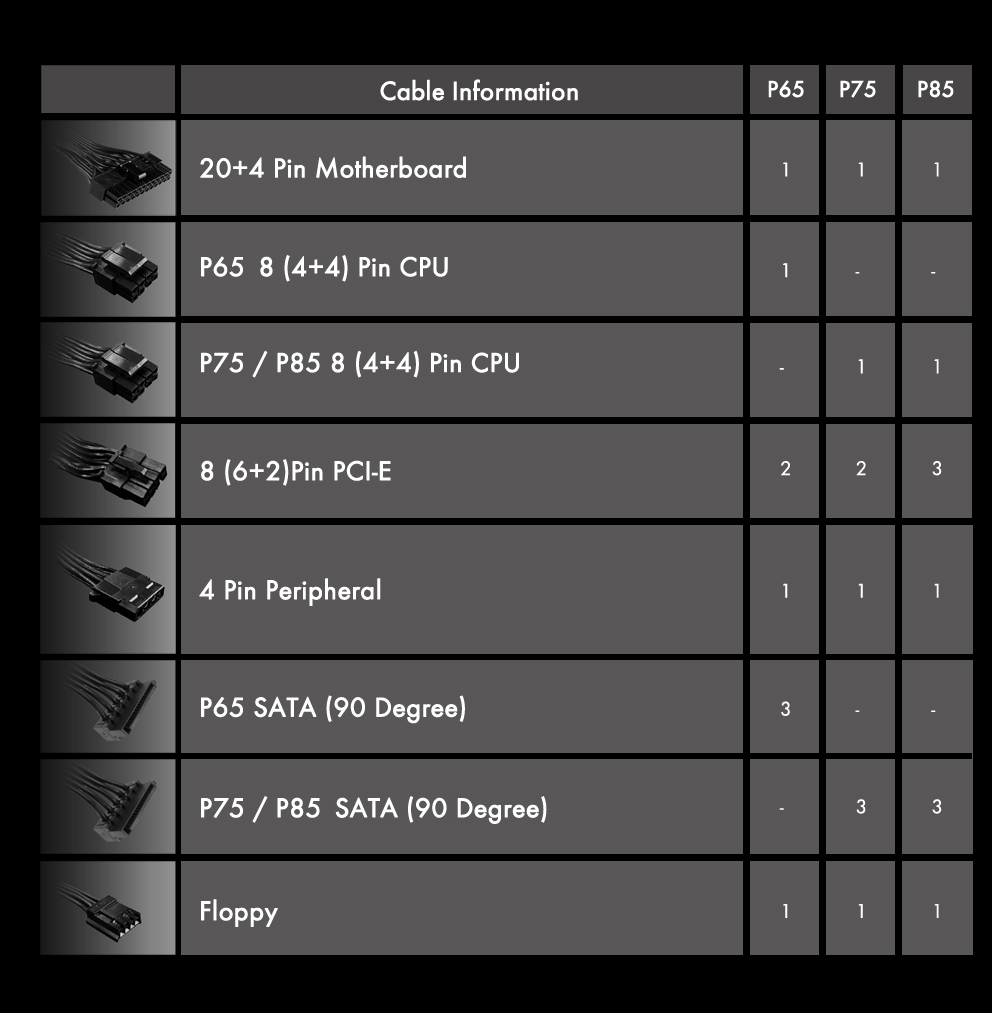

| Connectors | 20+4 Pin Motherboard | 1 | 1 | 1 | |
| 8 (4+4) Pin CPU | 1 | 2 | 2 | ||
| 8 (6+2) Pin PCI-E | 4 | 4 | 6 | ||
| 4 Pin Peripheral | 4 | 4 | 4 | ||
| SATA (90 Degree) | 9 | 12 | 12 | ||
| Floppy | 1 | 1 | 1 | ||
| * InWin products comply with RoHS regulations. * Specifications may vary based on different regions. |
|||||
|
Model
|
AC INPUT | 100-240Vac.,10A, 50-60Hz | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| DC OUTPUT | +12V | +5V | +3.3V | -12V | +5VSB | Total Power | ||||
|
P65
|
Max. Output Current | 54.2A | 22A | 22A | 0.3A | 3A | 650W | |||
|
Max. Combined Power
|
650W
|
120W
|
3.6W
|
15W
|
||||||
|
P75
|
Max. Output Current | 62.5A | 22A | 22A | 0.3A | 3A | 750W | |||
|
Max. Combined Power
|
750W
|
120W
|
3.6W
|
15W
|
||||||
|
P85
|
Max. Output Current | 70.9A | 22A | 22A | 0.3A | 3A | 850W | |||
|
Max. Combined Power
|
850W
|
120W
|
3.6W
|
15W
|
||||||
