SIV-1065W

Exclusive Illuminated SIV-1065W
Power Supply

SIV-1065W power supply is made with aluminium alloy top and 4mm thick translucent tempered glass in sides, which is exclusively designed for tòu 2.0 to consist its harmonious stunning appearance.

Four Timed Extra Power Modes

The SIV-1065W power supply provides options to efficiently remove the residual hot air generated by the PC. The PSU emits 65W of electricity to keep the cooling system operational after shutting down the PC. Users can choose the timer options to be continuous, shut down after 180 seconds, after 30 seconds or immediately shut down.

CONTINUOUS :
Continuously runs with 12V/65W of power after system is shutdown
180s : Continues running for 180 seconds after system is shutdown
30s : Continues running for 30 seconds after system is shutdown
NORMAL : Power off immediately after system is shutdown

Lighting Power Button

USB Intelligent Fast Charge

USB Intelligent Fast Charge

The designed USB internal is ideal for your mobile phone and tablet charging, moreover with the automatic identify charging system, you can charge your gadgets without turning your system on. It outputs to maximum 3A and supports APPLE 2.4 A, Samsung 2.0A fast charge. Match the BC 1.2 & YD/T 1591 USB charging regulation.

Fully Modular Cables for Quick and Easy Installation

Fully modular flat cable design simplifies installation and allows you to use only the cables you need, for a neater, cleaner build.

Highly Reliable Japanese Aluminium Electrolytic Capacitor

Premium Japanese capacitors with 105°C rating improve power stability at higher temperatures and provides an ultra-long lifespan.

165mm Silent Fan Design

SIV-1065W comes with 165mm silent dissipation fan. The special ceramic ferrule design is abrasion resistant, silent and useful, providing users with perfect silent and high dissipation solution.

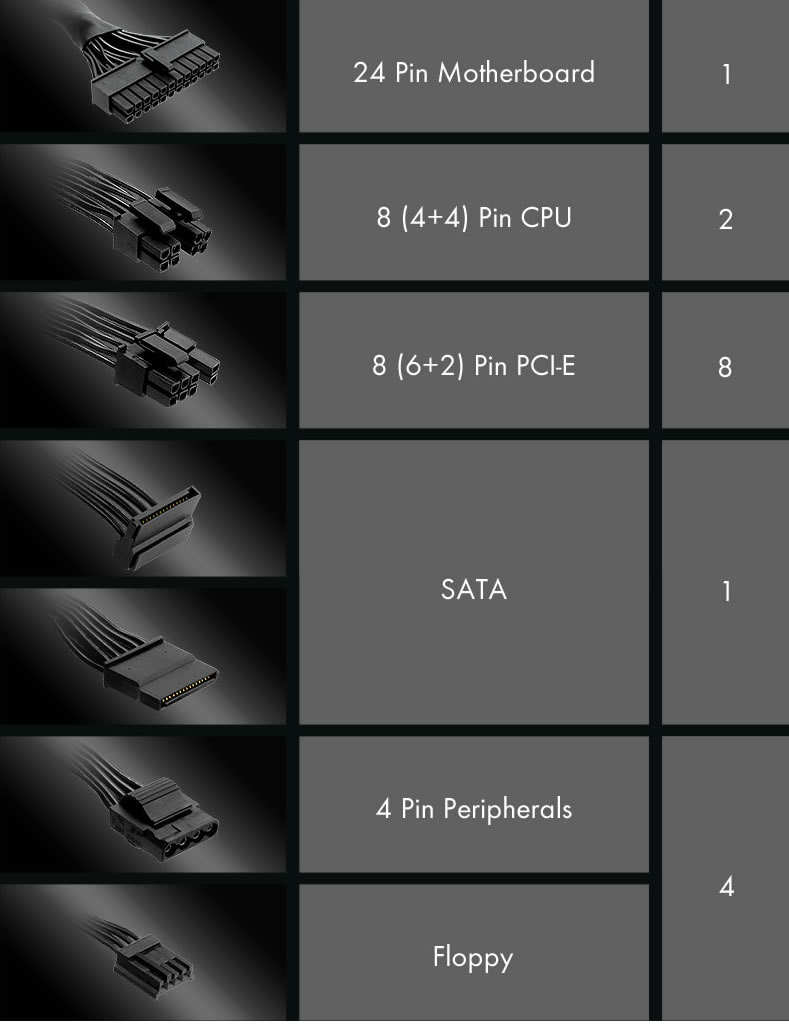

CABLE INFORMAITON

Specifications

Model SIV-1065W
Total Power 1065W
Material Aluminium, SECC, Tempered Glass
Type ATX12V V2.4/EPS12V V2.92
Cable Management Fully Modular
PFC Active PFC ( >0.9)
Efficiency Efficiency up to 92%
MTBF (Hours) >100,000
AC Input 100-240Vac. / 6.5-13A / 50-60Hz
Hold-up time (ms) >16ms
Fan 165mm Slient Fan
Typical Fan Noise (dB) < 25dB
Operating Temperature Range (°C) 0 ~ 50 ℃
Full Protection OCP / OVP / UVP / SCP / OTP / OPP
Safety Certifications cTUVus / TUV / CB / BSMI / CE / FCC / EAC / CCC / RCM
Dimension
(L x W x D)
210 x 180 x 86mm
Weight 2.8kg
Warranty 5 Years
Connectors 24 Pin Motherboard 1
8 (4+4) Pin CPU 2
8 (6+2) Pin PCI-E 8
4 Pin Peripheral 12
SATA 7
Floppy Power 4
* In Win products comply with RoHS regulations
* Specifications may vary based on different regions
Model
Max. Output Current
USB
EXTRA POWER
+12V1 +12V2 +12V3 +5V +3.3V -12V +5VSB MAX1 MAX2 MAX3 +5V +12V
SIV-1065W 25A 25A 75A 24A 24A 0.3A 6A 125W 1000W 1065W 3A 5.4A
* MAX1: +3.3V & +5V Total Output / MAX2: +12V Total Output / MAX3: Total Output Power
