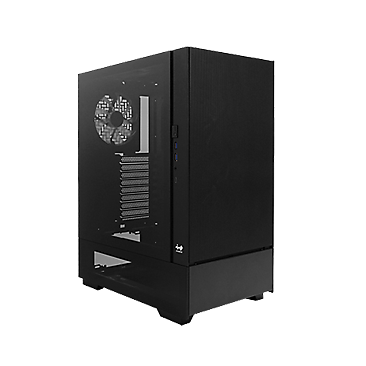

InWin ModFree

PATENT PENDING

Product Story

ModFree utilizes a fully systematic architectural structure that consists of interchangeable toolless modules. PC enthusiasts can freely transform their new PC internally and externally to accommodate their needs and preferences.

Three types of user-friendly modules!

Mod-I
Mod-II
Mod-III

First Ever FULLY Modular Case
Engineered to be a Perpetual, Upgradable Chassis
Effortlessly Lock Supplementary Modules with Toolless Interlocking
Build Your Ideal Internal Layout by Experimenting with Hardware Orientation
Exploit Modular Benefits by Simplifying Cable and Component Installation Prep
Personalized Swappable Panels

We Decree That It's Time to Mod Free!

Modular design, multifaceted system layout, flexible orientation deployment, endless swappable modifications!

Base Edition
Deluxe Edition
Define Your Mode

Interactive Assembly Guide

Building anything with a 2D instruction guide can be challenging. ModFree will offer a 3D interactive assembly guide as a dedicated mobile APP.

Multi-Functional Expansion Modules, Expand Your Build Anytime!

Specifications

Model	ModFree – Base Edition	ModFree – Deluxe Edition
Model Number	IW-CS-MFBASE-BLK	IW-CS-MFDELU-BLK
Color	Black
Case Type	Full Tower
Materials	SECC, Tempered Glass, ABS
M/B Compatibility	12" x 13" E-ATX, ATX, Micro-ATX, Mini-ITX
Expansion Slots	9 x PCI-E
Maximum Compatibility	GPU Card Length: 369 mm or 345 mm with Fan pre-installed	GPU Card Length: 369 mm or 440mm with Mod-III and Fans pre-installed
Maximum Compatibility	CPU Heatsink Height: 200 mm
I/O Ports	1 x USB 3.2 Gen 2x2 Type-C 2 x USB 3.2 Gen 1 HD Audio Combo (CTIA – SPK/MIC)
Internal Drive Bays	2 x 2.5" 1 x 3.5" or 2 x 2.5" with HDD Bracket

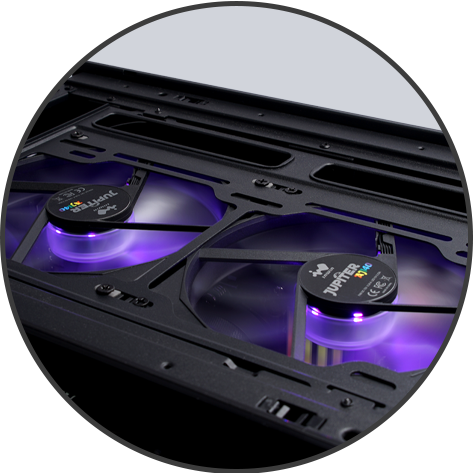

Thermal Solution Compatibility	Air Cooling Fans:
	Front : 2 x 120 / 140 mm Top : 2 x 120 / 140 mm Rear : 1 x 120 / 140 mm	Front : 3 x 120 / 140 mm Top: 3 x 120 / 140 mm Rear: 1 x 120 / 140mm Fan
	Water Cooling Radiator:
	Front : 1 x 240 / 280 mm Top : 1 x 240 mm	Front : 1 x 360 / 420mm Top : 1 x 360 / 420mm
Power Supply Compatibility	PSII: ATX12V - Length up to 390 mm or 240 mm with Hard Drive Tray Installed
Product Dimensions (L x W x H)	411.4 x 261.8 x 511.5 mm 16.2 x 10.3 x 20.1"	511.4 x 261.8 x 611.5 mm 20.1 x 10.3 x 24.1"
Package Dimensions (L x W x H)	532 x 382 x 650 mm 20.9 x 15 x 25.6"	650 x 392 x 760 mm 25.6 x 15.4 x 29.9"
* InWin's products comply with RoHS regulation. * Specifications may vary based on different regions.
