IP-S Series CQ

ATX 12V V2.31 / PS2

  • Multiple +12V Output
  • Smart Thermal Control to Balance Noise & Cooling
  • 120mm Cooling Fan
  • 6 Pin for PCI-E VGA Card
  • MTBF 100KHRs @ 25°C per MIL-STD-217D/F
  • Operating Ambient +10°C Minimum to +40°C Maximum
  • Meets Intel® Haswell Processors Requirements
  • Dimensions: 150(W) X 140(L) X 86(H) mm

Connectors

Connectors
24 Pin Main Power Connector 4+4 Pin +12V CPU Power Connector 4 Pin FDD Power Connector Peripheral Power Connector SATA Power Connector 6 Pin PCI-E Power Connector
IP-S350CQ2-0 1 1 1 1 3 1
IP-S450CQ2-0 1 1 1 2 4 1

Safety

Specifications

Model No.
Max. Output AC Input PFC
Max. Output Current
+12V1 +12V2 +5V +3.3V -12V 5VSB MAX1 MAX2 MAX3
IP-S350CQ2-0 350W 115-230V N/A 17A 16A 15A 21A 0.3A 2.5A 103W 264W 350W
IP-S450CQ2-0 450W 115-230V N/A 18A 18A 15A 24A 0.3A 2.5A 120W 360W 450W
* MAX1: 5V & 3.3V Total Output
* MAX2: +12V Total Output
* MAX3: Total Output Power
* The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make final modifications.

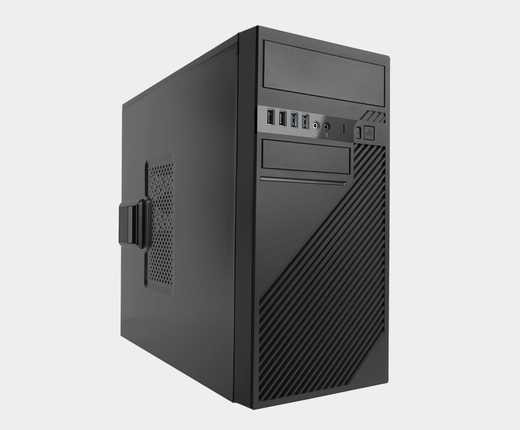

Recommended Chassis
